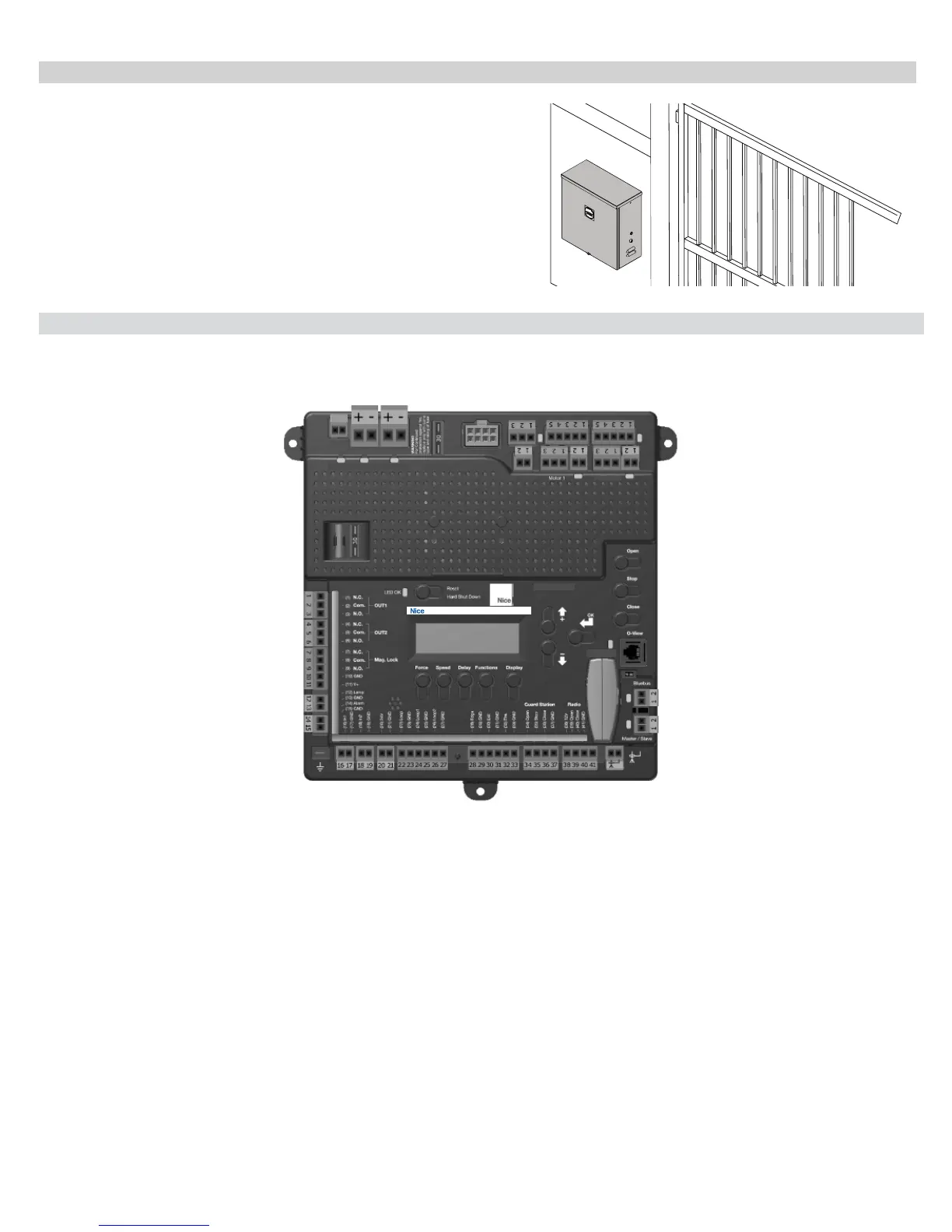

13 - CONTROL BOX MOUNTING
Mount the control box at least 6 feet from any moving part of the gate.
There is 12 feet of cord provided for mounting exibility. Use mounting
hardware capable of supporting the weight of the control box with the
battery installed.
Do not mount the control box where the person using the push button
on side of the box can come in contact with the gate.
Set battery inside of control box with terminals toward the front (Do not
use any battery with side terminals).
14 - CIRCUIT BOARD LAYOUT
+
-
MAIN DC POWER 30A FUSE MOTOR
SERIES 1050
MOTOR 2
BATTERYSOLAR P.
OXI/A Receiver
UL325 Compliant Monitored Safety Devices(s) required.
Accessory
Output
Connections
Power Input
Connections
Motor Output
Connections
BlueBus
Connection
Master / Slave
Connection
Accessory Input Connections
Earth Ground
