18
15 - WIRING

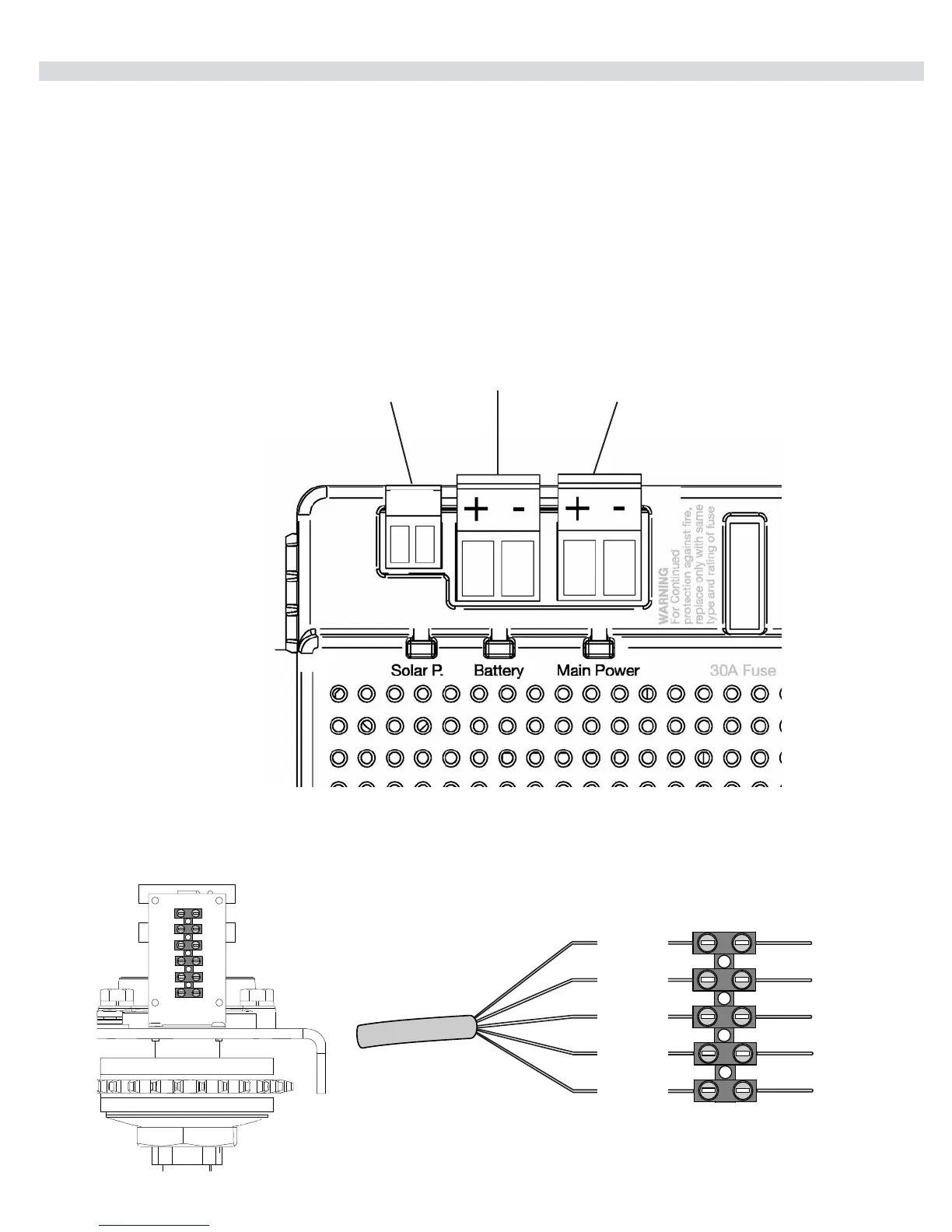

15.1 - Incoming power wiring
Power input connections should be wired as follows:
Solar panel
Connect wires to the solar panel terminal block. The positive wire of the panel connects to the left terminal marked “+”. Note:
If the panel is connected backwards a red LED will illuminate below the terminal.
Battery
Connect wires to the battery terminal block. The positive wire of the battery connects to the left terminal marked “+”. Note: If
the battery is connected backwards a red LED will illuminate below the terminal.
Main DC Power - This terminal block is for incoming 10-32VDC power only!
Connect wires to the main DC power terminal block. Positive of the power supply connects to the left terminal marked “+”.
Note: If supply is connected backwards a red LED will illuminate below the terminal. If supply is connected properly a green
LED will illuminate
SOLAR
PANEL
BATTERY
MAIN DC
POWER
+ -
Located inside the chassis assembly next to the limit switches is a white terminal block. Wire the harness cable to the terminal
block as shown below.
Orange
White
Green
Red
Black
White
White
White (2x)
Black
Red
15.2 - Chassis wiring
