English – 23
Check of the number of manoeuvres performed
The number of manoeuvres performed as a percentage of the set limit can be veried by means of the “Maintenance notication” function. For
the check proceed as described in Table 14.

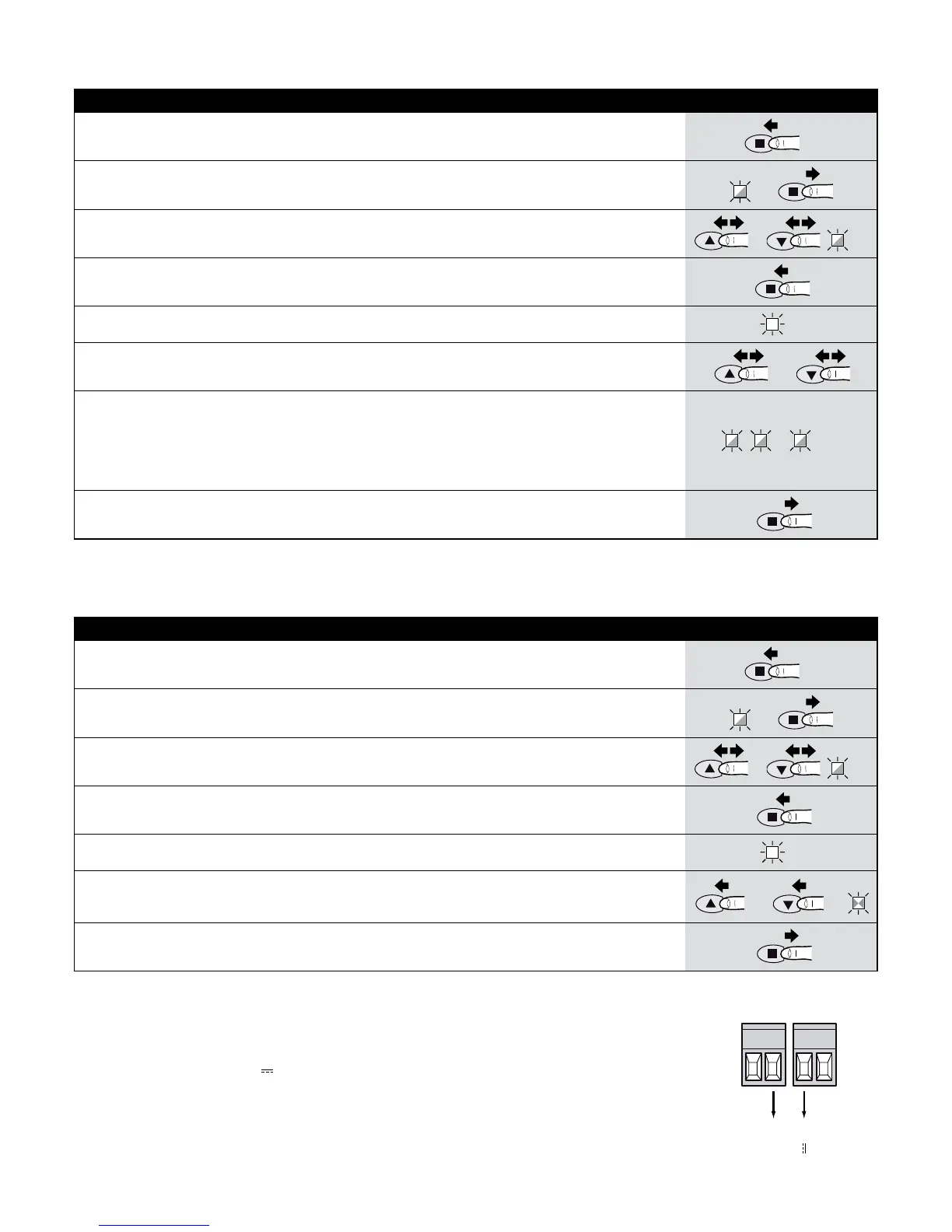

Table 14 - Check of the number of manoeuvres performed Example
01.
Press and hold the [■/Set] key for roughly 3 seconds
3s
02.
Release the [■/Set] key when LED L1 starts ashing
L1
03.
Press and release the [▲] or [▼] keys to shift LED ashing on L7, namely the “input LED”
associated with the “Maintenance notication” parameter
or
L7
04.
Press and hold the [■/Set] key, which must be kept pressed throughout all steps 5, 6 and 7
05.
Wait approx. 3 seconds after which the LED associated with the current level of the “Maintenance
notication” parameter will light up
3s
06.
Press and release [▲] and [▼]
and
07.
The LED corresponding to the selected level ashes a few times. The number of ashes indicates
the percentage of manoeuvres performed (in multiples of 10%) with respect to the set limit.
For example: with the maintenance notication set to L6 namely 10000, 10% corresponds to 1000
manoeuvres; if the visualisation LED ashes 4 times, it means that 40% of the manoeuvres has
been reached (being between 4000 and 4999 manoeuvres). If 10% of the manoeuvres has not yet
been reached, the LED does not ash at all
...
n=?
08.
Release [■/Set]
Manoeuvre counter resetting
After maintenance has been performed on the system, the manoeuvre counter must be reset.
Proceed as described in Table 15.
Table 15 - Manoeuvre counter resetting Example
01.
Press and hold the [■/Set] key for roughly 3 seconds
3s
02.
Release the [■/Set] key when LED L1 starts ashing
L1
03.
Press and release the [▲] or [▼] keys to shift LED ashing on L7, namely the “input LED”
associated with the “Maintenance notication” parameter
or
L7
04.
Press and hold the [■/Set] key, which must be kept pressed throughout all steps 5, 6 and 7
05.
Wait approx. 3 seconds after which the LED associated with the current level of the “Maintenance
notication” parameter will light up
3s
06.
Press and hold buttons [▲] and [▼] for at least 5 seconds, then release the 2 buttons.
The LED that corresponds to the selected level ashes rapidly indicating that the manoeuvre
counter has been reset
and
5s
07.
Release [■/Set]
8.6 - Connecting other devices
If the user needs to power external devices, such as a proximity reader for transponder cards or the illumination
light of the key-operated selector switch, it is possible to tap power as shown in the gure.
The power supply voltage is 24 V
-30% ... +50% with a maximum available current of 100 mA.
STOP
GND (-)
24V (+)
PP
