4 – English

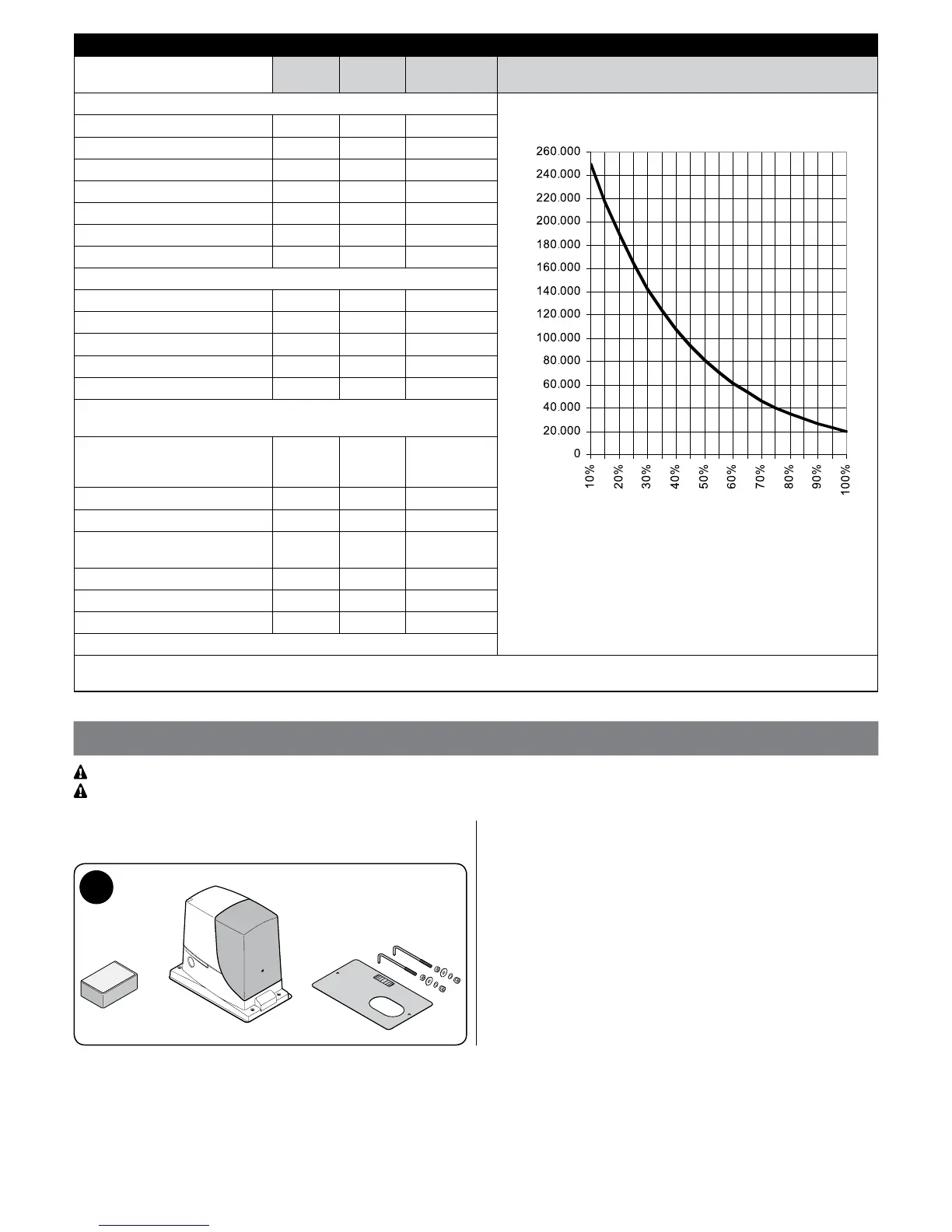

Table 2 - estimated durability in relation to the manoeuvre severity index
Severity index % RB600 RB1000 RB500HS
RB500HS/V1
Durability in cycles
Gate leaf weight (kg)
Severity index %
Durability in cycles
Up to 200 10 5 30
200 – 400 30 10 40
400 – 500 50 20 60
500 – 600 - 30 -
600 – 800 - 40 -
800 – 900 - 50 -
900 – 1000 - 60 -
Gate leaf length (m)
Up to 4 10 5 15
4 – 6 20 10 25
6 – 8 35 20 35
8 – 10 - 35 -
10 – 12 - 50 -
Other factors contributing to fatigue
(to be considered if their probability exceeds 10%)
Ambient temperature greater
than 40°C or lower than 0°C, or
humidity greater than 80%
10 10 10
Presence of dust and sand 15 15 15
Presence of salinity 20 20 20
Manoeuvre interrupted by
photocell
15 10 20
Manoeuvre interrupted by Stop 25 20 30
Speed greater than “L4 fast” 20 15 25
Active peak force 25 20 25
Total severity index %:
Note: a severity index exceeding 100% implies that the conditions are beyond the limit of acceptability; in this case, a larger-size model is
recommended.
3
INSTALLATION
Important! Before installing the product, refer to Chapter 2 and Chapter 12 (technical specications).
Vericare che la temperatura sia idonea all’ambito di applicazione.
Fig. 1 shows the contents of the package: check that everything is
present and correct.
Fig. 2 shows the location of the various components of a typical instal-
lation with Nice accessories:
a - ROBUS gearmotor
b - photocells
c - posts for photocells
d - key selector / digital keypad
e - ashing light
f - rack
1
