2 – OPTIONAL BOARDS AD3000
NIDEC ASI S.P.A. – AD3000 COMMUNICATION MANUAL
4 IMAD30007EN
2.3 Mounting instructions for the ETH-PROFI optional board, frame I ÷ IIIL

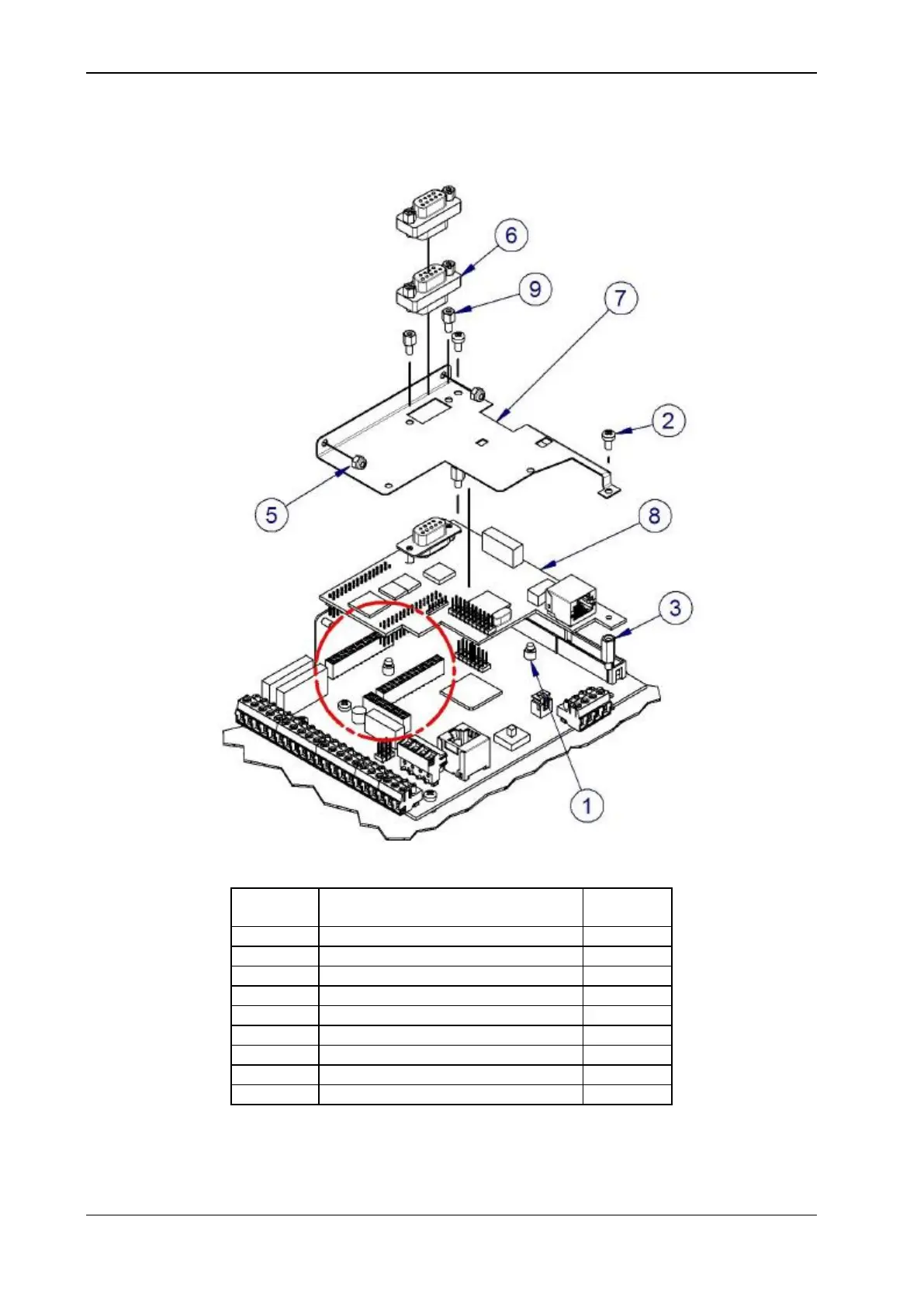

Figure 2.3.1: Assembly of each element available in the kit
Object
number
Description
Quantity
1
Neoprene board support foot
2
2
Screw TCX M3x6 4.8 UNI 7687
5
3
Spacer M3x12 M/F
2
4
Spacer M3x7 M/F
1
5
Self-blocking nut M3 6S UNI 7473
2
6
Serial adapter D-SUB 9 ways M-F
2
7
ETH-PROFI RDP expansion board shield
1
8
ETH-PROFI expansion board
1
9
Spacer M3x5 M/F
2
Table 2.3.1: Assembly of each element available in the kit
