2 – OPTIONAL BOARDS AD3000
NIDEC ASI S.P.A. – AD3000 COMMUNICATION MANUAL
6 IMAD30007EN
2.4 Mounting instructions for ETH-PROFI optional board, frame IIIN ÷ VIII

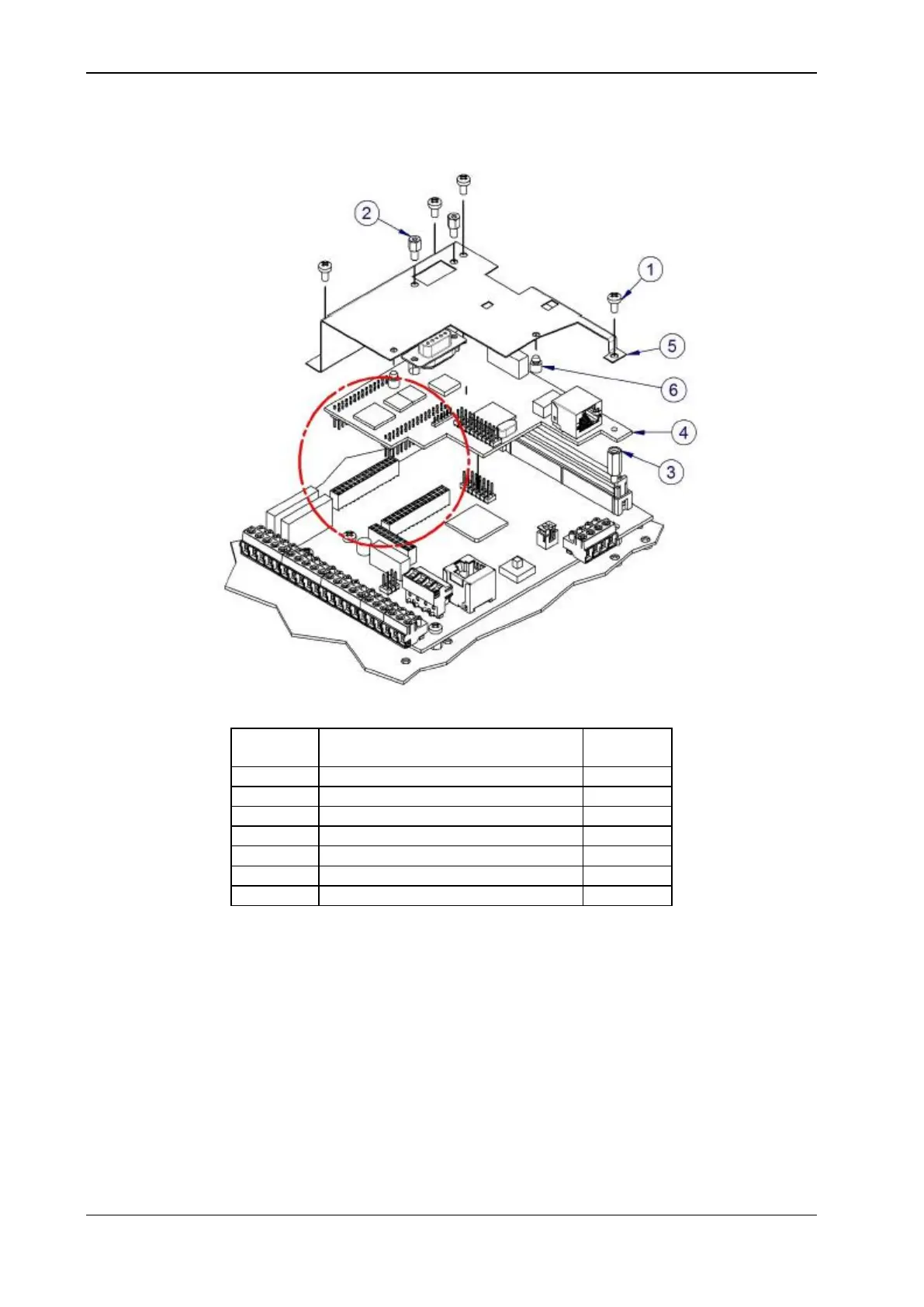

Figure 2.4.1: Assembly of each element available in the kit
Object
number
Description
Quantity
1
Screw TCX M3x6 4.8 UNI 7687
4
2
Spacer M3x5 M/F
2
3
Spacer M3x12 M/F
2
4
ETH-PROFI expansion board
1
5
ETH-PROFI RDP expansion board shield
1
6
Neoprene board support foot
2
7
Spacer M3x7 M/F
1
Table 2.4.1: Assembly of each element available in the kit
