AD3000 2 – OPTIONAL BOARDS
NIDEC ASI S.P.A. – AD3000 COMMUNICATION MANUAL
IMAD30007EN 3
2 OPTIONAL BOARDS
2.1 Introduction
Because only the Modbus RTU fieldbus is available as a standard on the AD3000 drive, to use the other optional fieldbuses it is necessary to insert an
optional board whose hardware and setup are described in this manual.
The optional fieldbuses available for the AD3000 drive are:
 PROFIBUS DP by inserting the PROFIBUS DP and Modbus TCP communication module (ETH -PROFI board)
 Modbus TCP by inserting the PROFIBUS DP and Modbus TCP communication module (ETH -PROFI board)
 PROFINET IO by inserting the PROFINET IO communication module (GB40A-PROFINET board)
 EtherNet/IP by inserting the EtherNet/IP communication module (GB40A-EtherNet/IP board)
2.2 PROFIBUS DP and Modbus TCP communication module
The PROFIBUS DP and Modbus TCP communication module (ETH-PROFI expansion board, code 8000003690) provides the PROFIBUS DP and
Modbus TCP slave communication buses; it is connected to the BASIS control board via J7 and J8.
Technical data
Operating temperature, -20°C - +50°C
Storage and transport temperature, -20°C - +70°C
LED
Abbreviation
Colour
Function
Description
DL1
Green
PROFIBUS
PROFIBUS communication
On = Communication active
DL2
Green
Modbus TCP
Line activity
Blinking = Communication active
DL3
Green
Modbus TCP
Line status
On = connection OK
The ETH-PROFI expansion board is an option indicated by the letter P in the 13th character of the identification code (see chapter 2 of the User and
Maintenance Manual):
AD3
A
XXX
F
B
N
F
H
P
C
N
00
NN
ETH-PROFI board: ETHI-PROFI board installed on the BASIS control board:

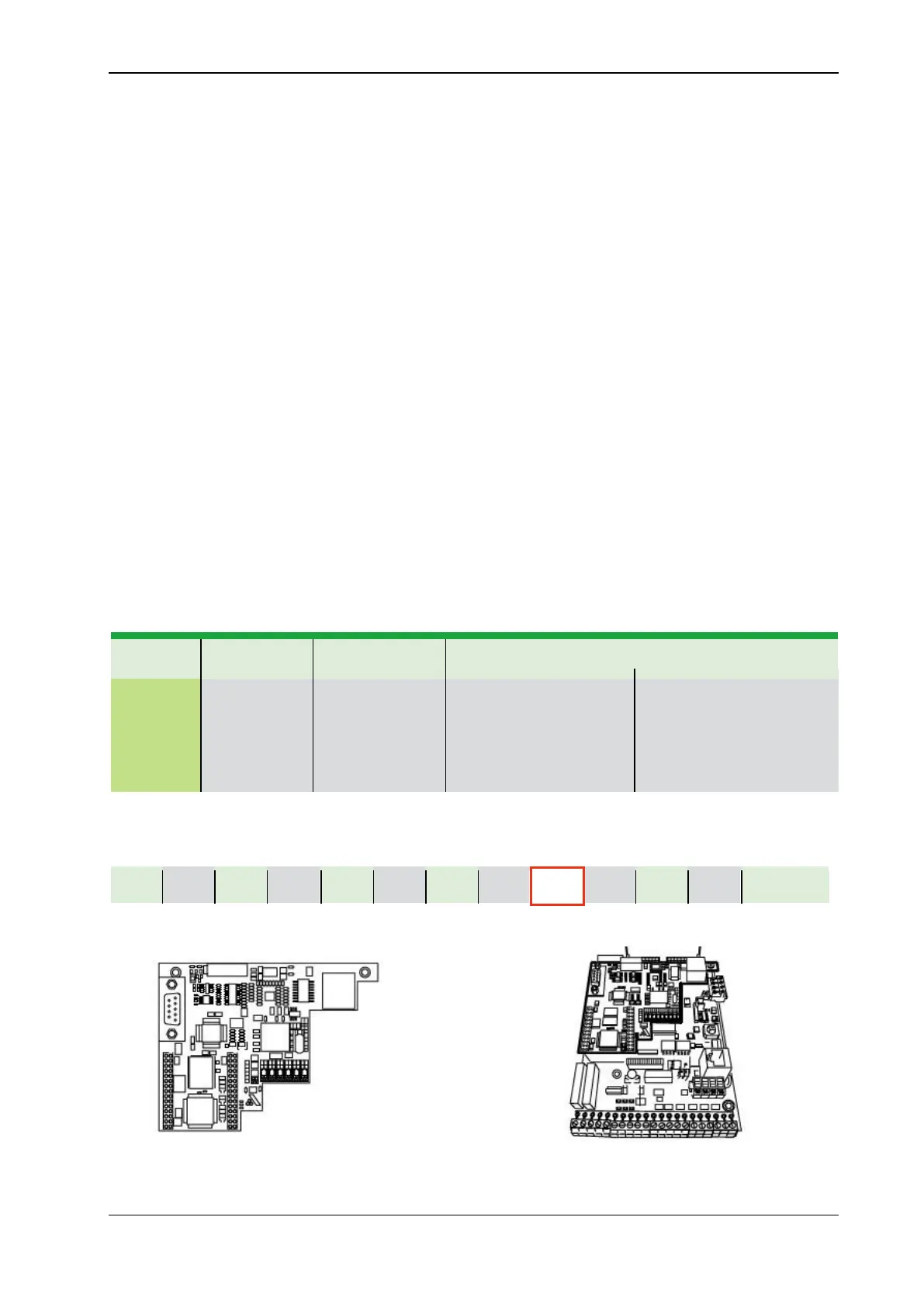

Figure 2.2.1: PROFIBUS DP and Modbus TCP communication module (ETH-PROFI board), on its own and
mounted on the BASIS control board
