AD3000 2 – OPTIONAL BOARDS
NIDEC ASI S.P.A. – AD3000 COMMUNICATION MANUAL
IMAD30007EN 11

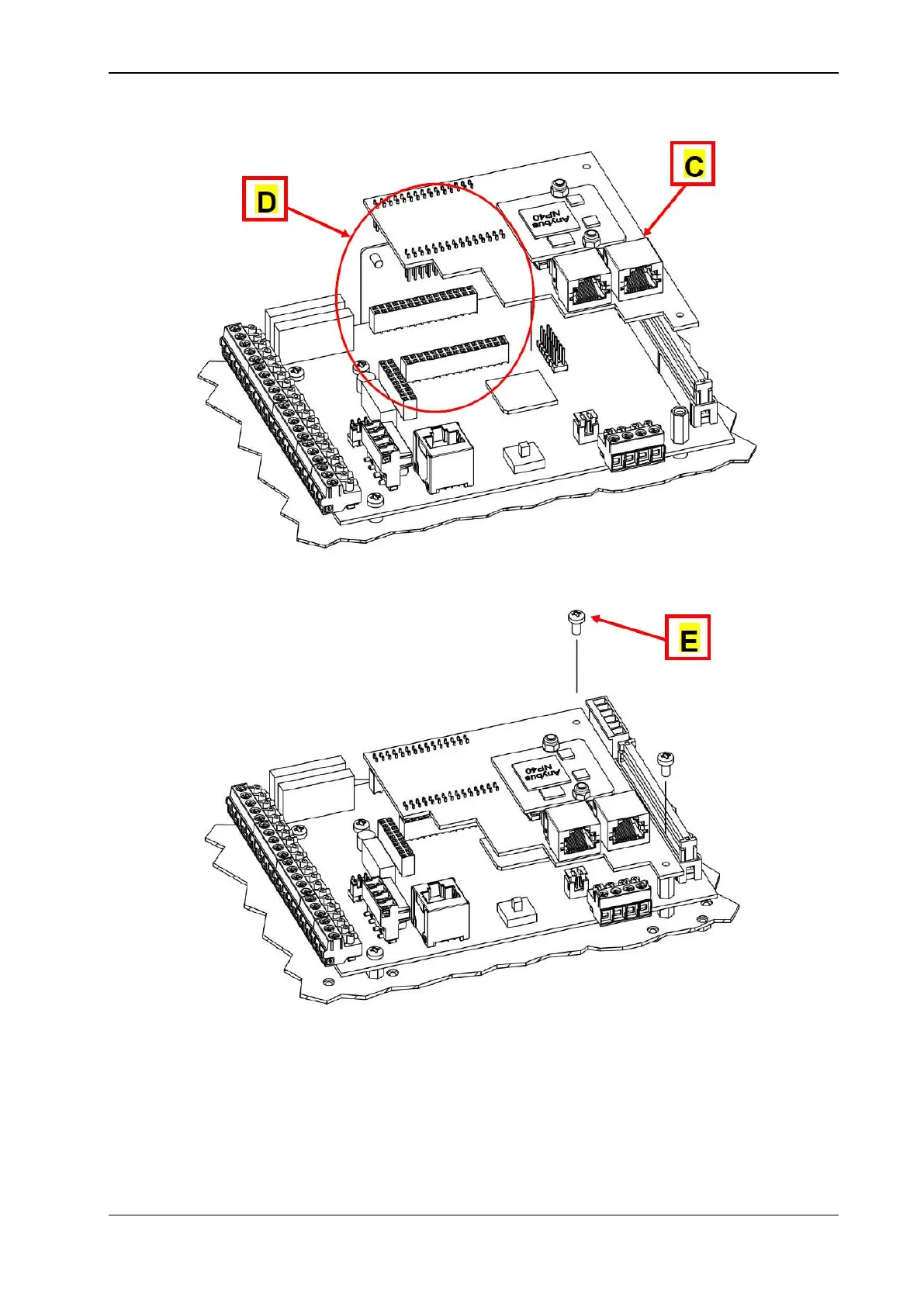

Figure 2.7.3: Position the board (C); carefully insert the pins in the connectors (D)
Figure 2.7.4: Screw the M3 screws (E) previously removed
