4 MECHANICAL INSTALLATION - 4.1 - 4.2 - 4.3
4
4 MECHANICAL INSTALLATION
4.1 GENERAL
• The AD700E should be mounted in a vertical position only, on a flat,
flame resistant, vibration free mounting using the integral mounting
holes or DIN Rail clip (Frame Sizes 1 and 2 only).
• IP20 AD700E must be installed in a pollution degree 1 or 2
environment only.
• Do not mount flammable material close to the AD700E
• Ensure that the minimum cooling air gaps, as detailed in section 4.4
and 4.6 are left clear
• Ensure that the ambient temperature range does not exceed the
permissible limits for the AD700E given in section 10.1
• Provide suitable clean, moisture and contaminant free cooling air
sufficient to fulfil the cooling requirements of the AD700E
4.2 UL COMPLIANT INSTALLATION
Refer to section 10.3 for Additional Information for UL Compliance.

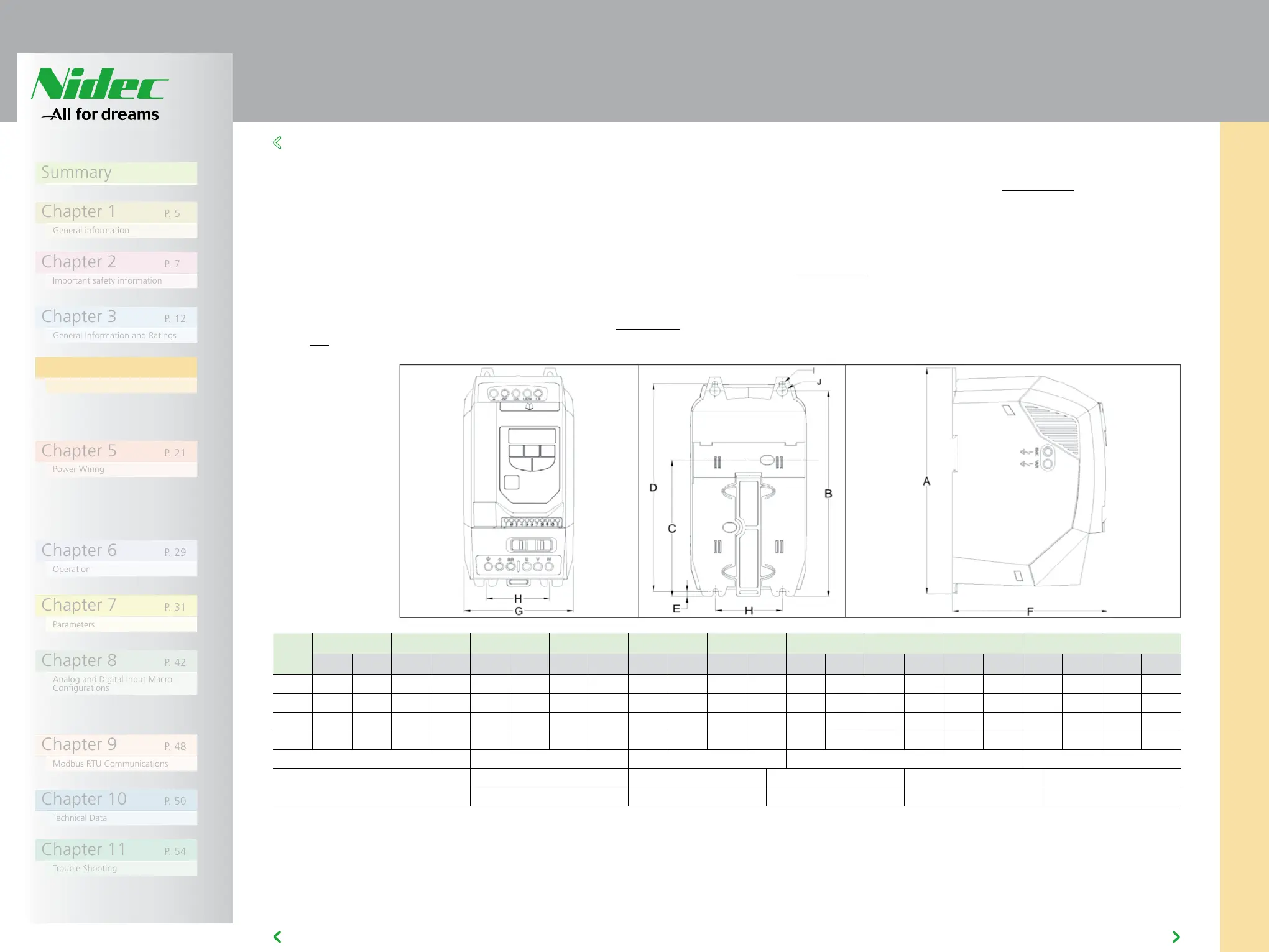

4.3 MECHANICAL DIMENSIONS AND MOUNTING –
IP20 OPEN UNITS
Drive
Size
A B C D E F G H I J Weight
mm in mm in mm in mm in mm in mm in mm in mm in mm in mm in Kg ib
1 173 6.81 160 6.30 109 4.29 162 6.38 5 0.20 123 4.84 83 3.27 50 1.97 5.5 0.22 10 0.39 1.0 2.2
2 221 8.70 207 8.15 137 5.39 209 8.23 5.3 0.21 150 5.91 110 4.33 63 2.48 5.5 0.22 10 0.39 1.7 3.8
3 261 10.28 246 9.69 - - 247 9.72 6 0.24 175 6.89 131 5.16 80 3.15 5.5 0.22 10 0.39 3.2 7.1
4 420 16.54 400 15.75 - - 400 15.75 8 0.31 212 8.35 171 6.73 125 4.92 8.2 0.32 14.8 0.58 9.1 20.1
Mounting Bolts Frame Size 1 - 3 4 x M5 (#8) Frame Size 4 4 x M8
Tightening Torques
Frame Sizes 1 - 3 Control Terminals 0.8 Nm (7 lb-in) Power Terminals 1 Nm (9 lb-in)
Frame Size 4 Control Terminals 0.8 Nm (7 lb-in) Power Terminals 4 Nm (35 lb-in)
