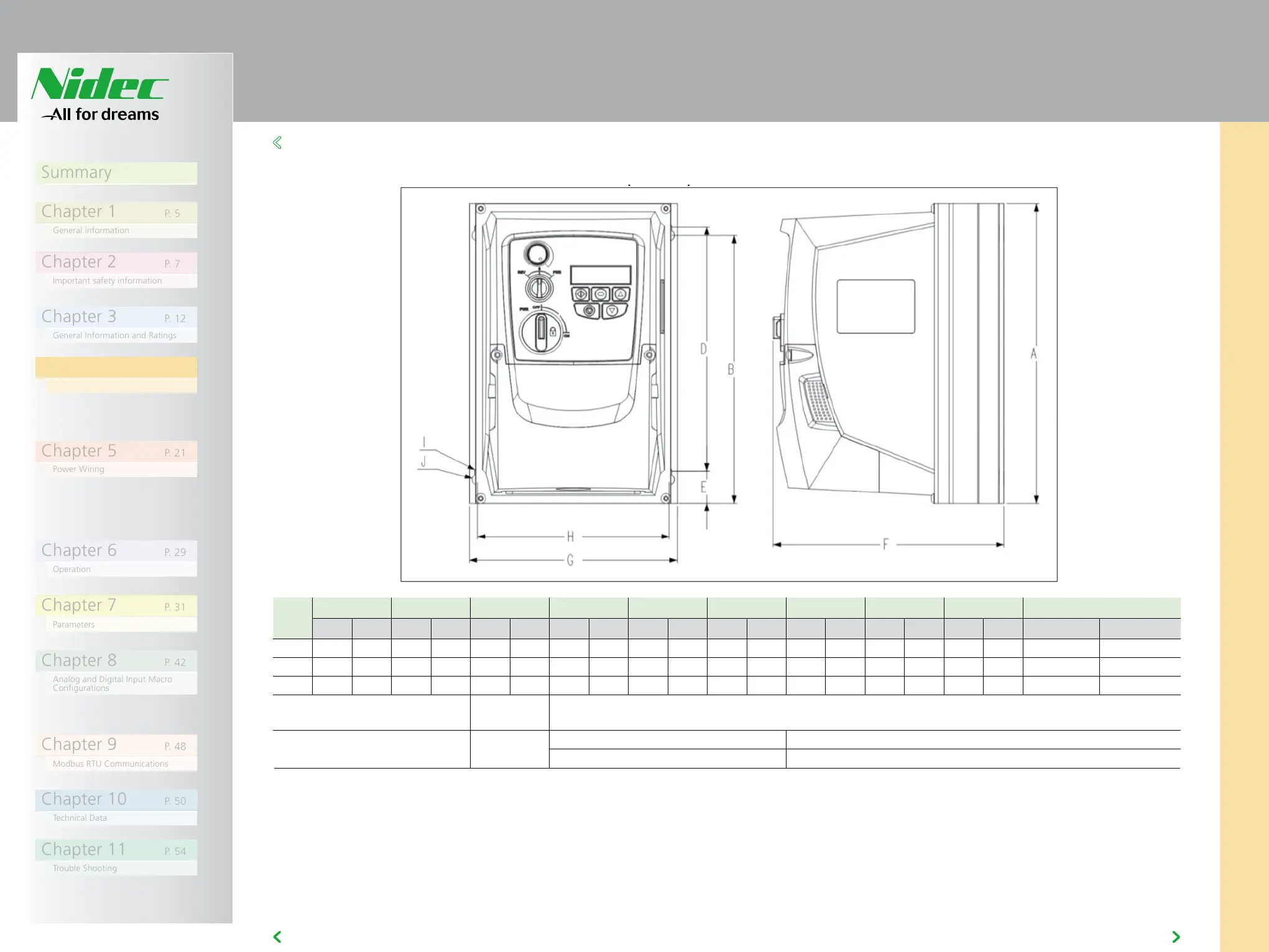

4.5 MECHANICAL DIMENSIONS – IP66 (NEMA 4X) ENCLOSED UNITS
4
4.5 MECHANICAL DIMENSIONS – IP66 (NEMA 4X) ENCLOSED UNITS
Drive
Size
A B D E F G H I J Weight
mm in mm in mm in mm in mm in mm in mm in mm in mm in Kg ib
1 232.0 9.13 207.0 8.15 189.0 7.44 25.0 0.98 179.0 7.05 161.0 6.34 148.5 5.85 4.0 0.16 8.0 0.31 3.1 6.8
2 257.0 10.12 220.0 8.67 200.0 7.87 28.5 1.12 187.0 7.36 188.0 7.40 176.0 6.93 4.2 0.17 8.5 0.33 4.1 9.0
3 310.0 12.20 276.5 10.89 251.5 9.90 33.4 1.31
252 9.92
211.0 8.30 197.5 7.78 4.2 0.17 8.5 0.33 7.6 16.7
Mounting Bolts
All Frame
Sizes
4 x M4 (#8)
Tightening Torques
All Frame
Sizes
Control Terminals
0.8Nm (7Ib-in)
Power Terminals
1 Nm (9 lb-in)
