Nidec Digitax HD M751 Base - Page 38

Safety information Product information Mechanical installation Electrical installation Multi axis system design Technical data
38 Digitax HD M75X Series Installation and Technical Guide
Issue Number: 5

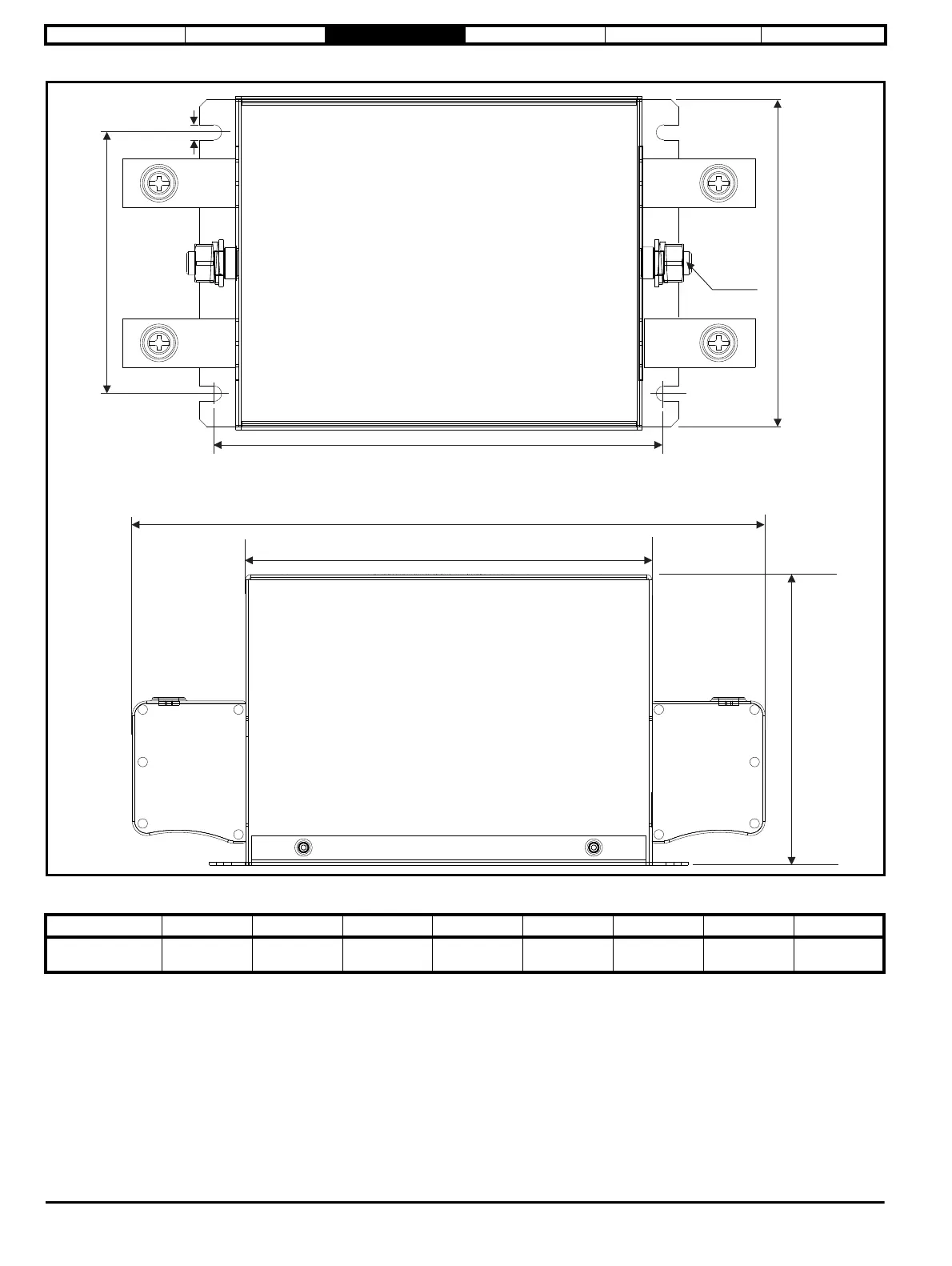

Figure 3-25 External EMC filter dimensions (4200-6034)
Table 3-5 External EMC filter dimensions (4200-6034)
Y
W
C
B
A
H
D
V
Part number ABCDHWVY
4200-6034
140 mm
(5.51 in)
155 mm
(6.10 in)
90 mm
(3.54 in)
100 mm
(3.94 in)
243 mm
(9.57 in)
115 mm
(4.53 in)
M8
5.3 mm
(0.21 in)
