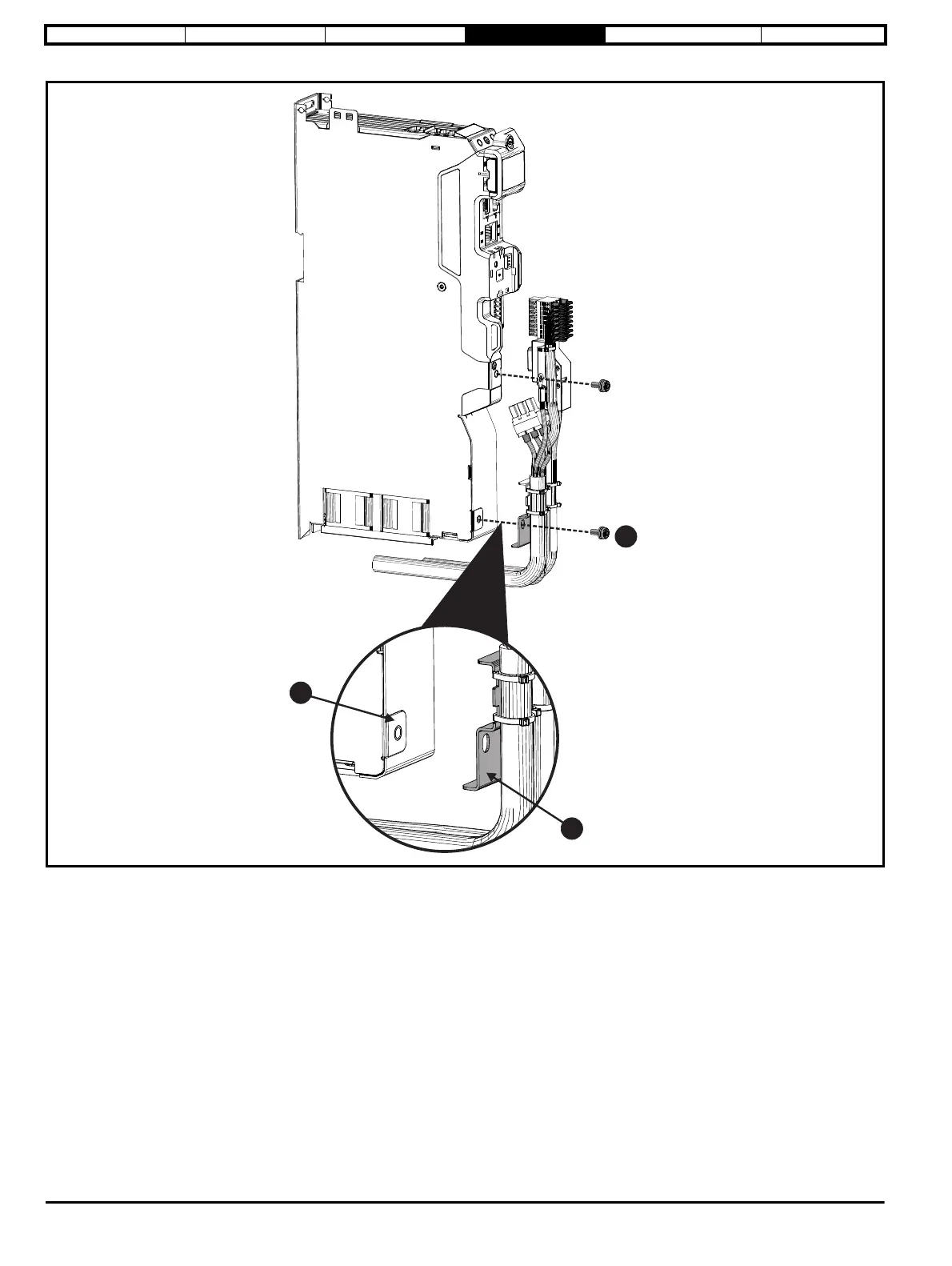

Figure 4-12 Installation of cable screen bracket (frame size 3)
• Secure the cable screen bracket (1) to the tab on the metal side plate (2) with M4 screw (3). Torque 2 N m (17.7 lb in).
2
1
3
