SPDM CONTROL BOX 3 – SYSTEM2 BOARD

NIDEC ASI S.P.A. – SPDM CONTROL BOX USER MANUAL

IMSPDCB2EN 37

Connectors3.2

3.2.1 Description of the connectors

The following figure shows the layout of the connectors on the board.

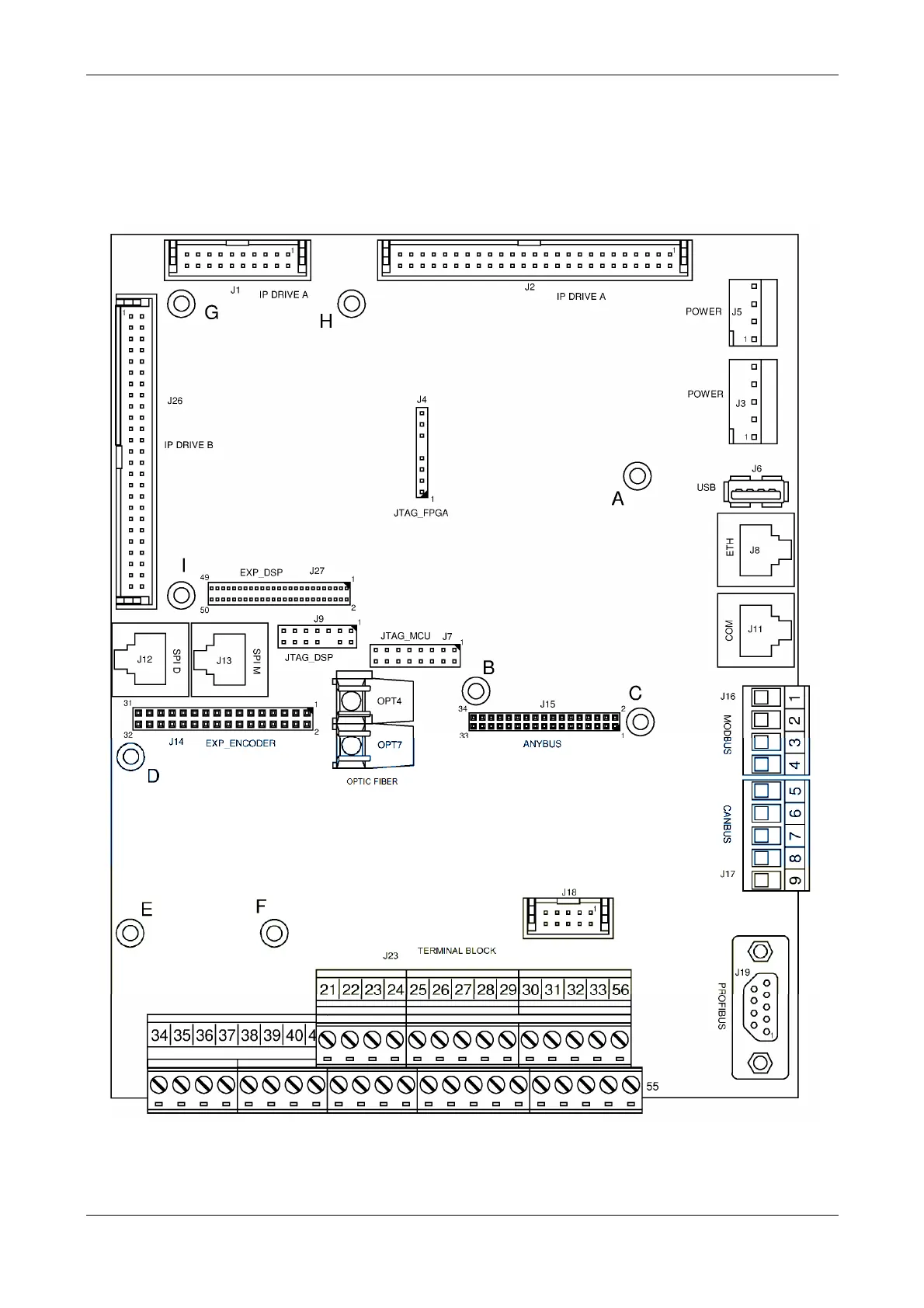

Figure 3-3: Layout of Connectors.
