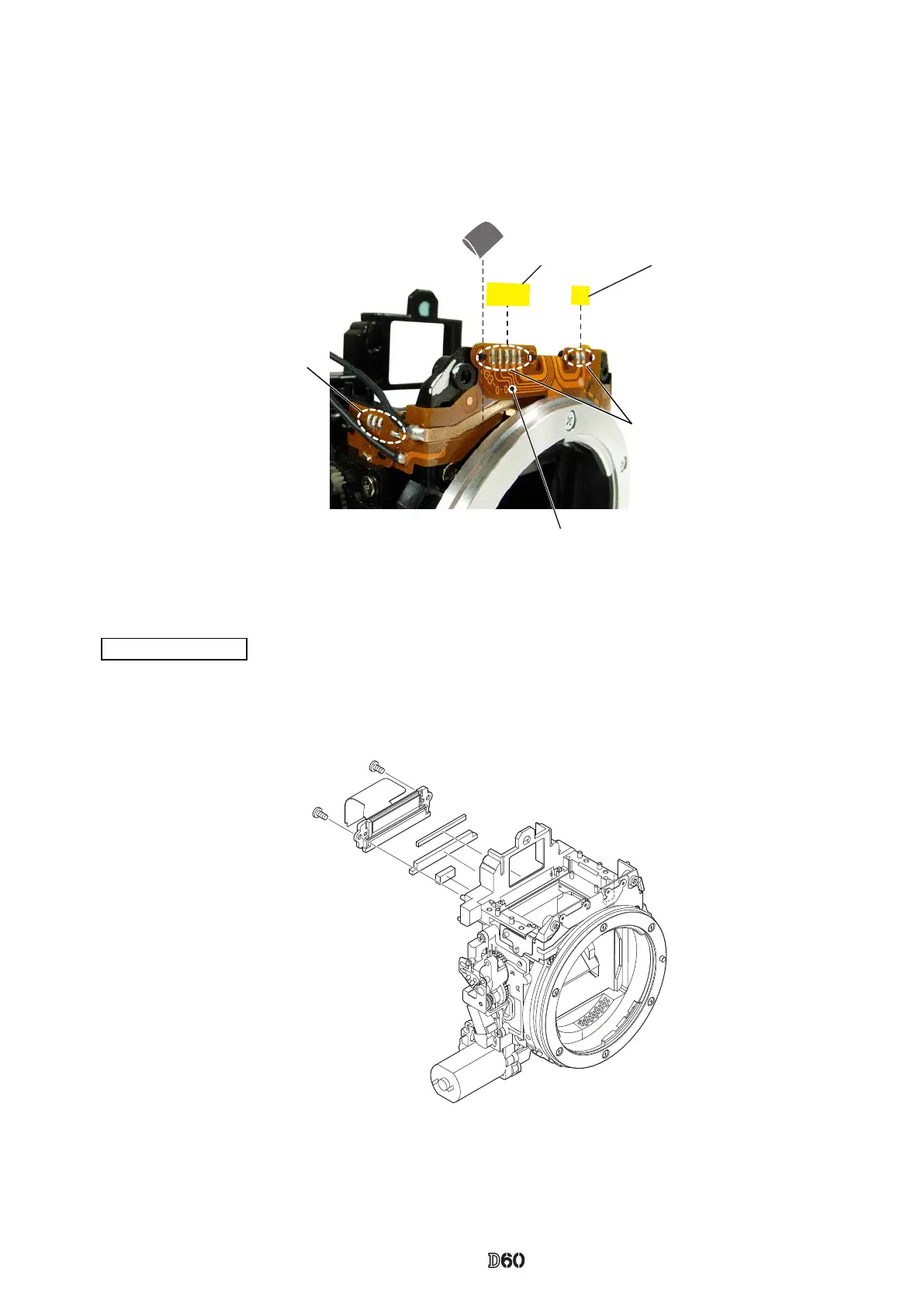

Fold the contact-FPC down, and attach it by tting the four bosses in the holes.
・
Make seven solder bridges and four solder bridges.
・
Attach the two pieces of tape and gasket.
・
Fix the in-nder LCD unit (#B2010) with the two screws (#683).
In-nder LCD unit
TA-0025(5×5)TA-0025(5×8)
#485
Solder bridge×7
Solder bridge×4
Contact-FPC
#758
#683×2
#B2010
#276
#295
