VBA21001-R.3753.A
AF sensor unit FPC
#162×3
#161×3
#B2163
・

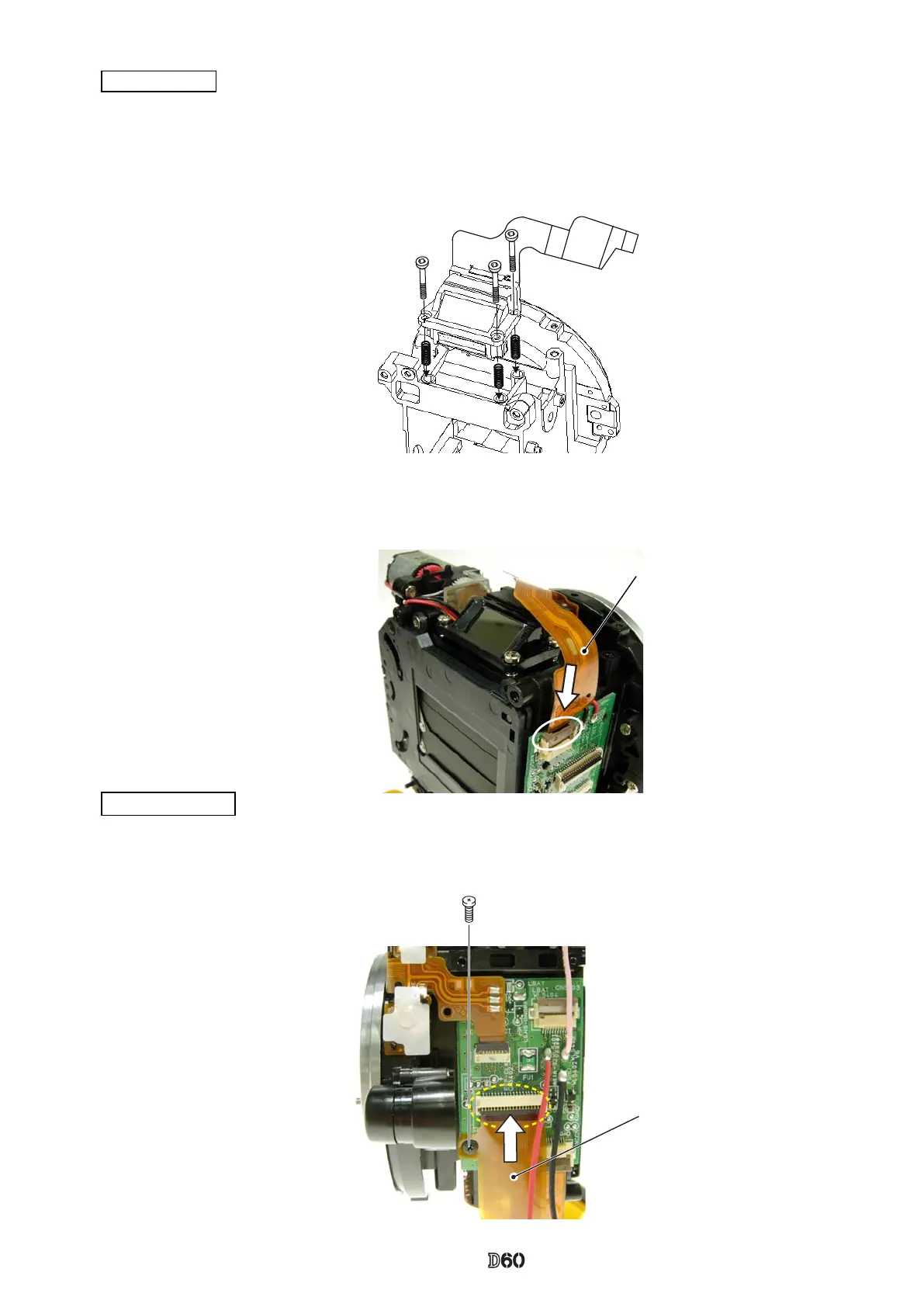

Turn three screws (#162) with
Hexagonal wrench (φ1.5mm) all
the way lightly to the end, then
give each two-turns counterclock-
wise.
AF sensor unit
・
Put three springs (#161) and mount the AF sensor unit [#B2163].
・
Attach the AF sensor unit FPC by following the shape of the attaching surface, and connect it to the connector.
・
Connect the connection-FPC (#1020) to the connector, and x it with the screw (#670).
Connection-FPC
#670
Connection-FPC (#1020)
To Next Page
