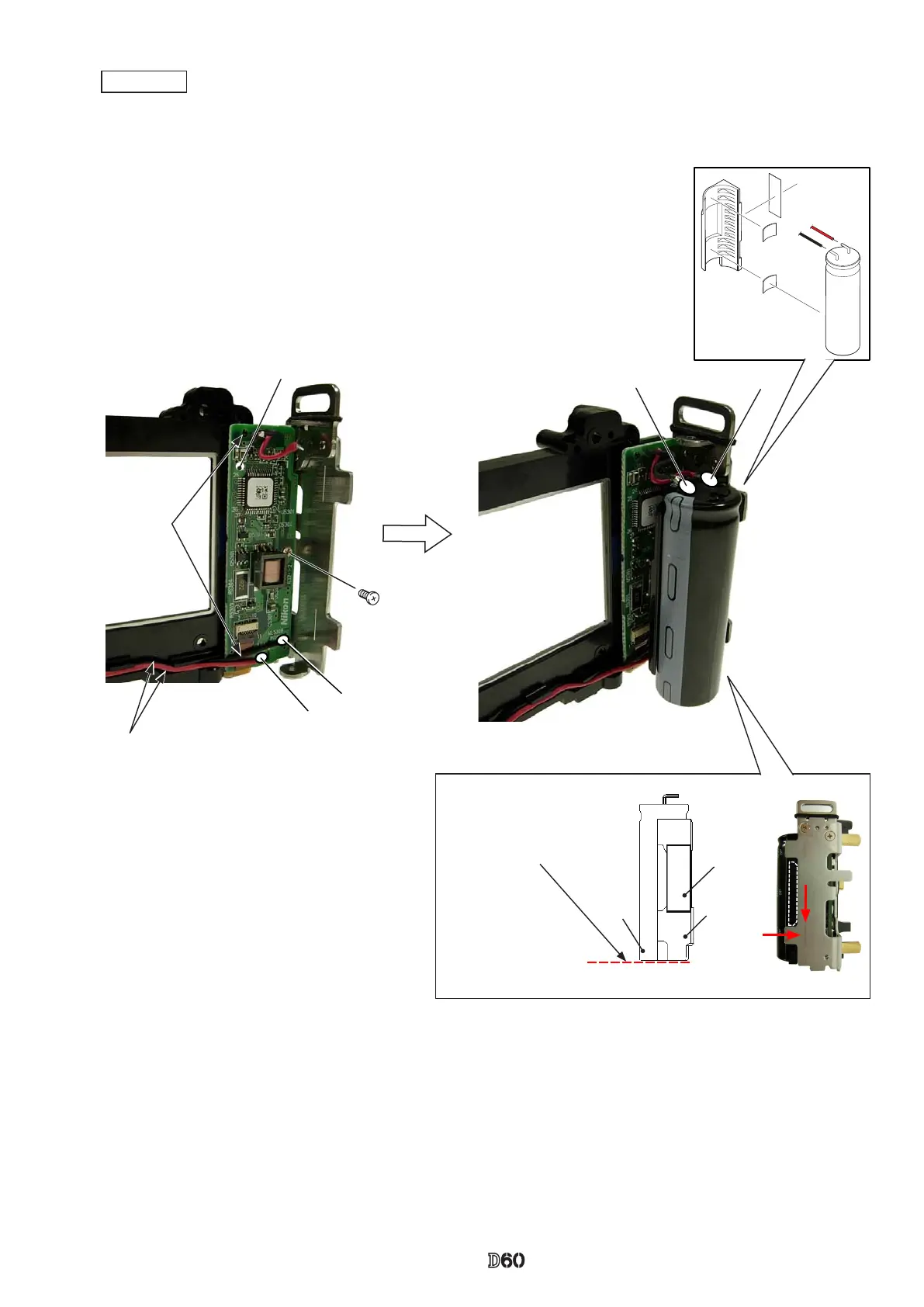

Main condenser unit
#142
#141×2
#1043
#1076
#1077
Black:SB-PCB Red:SB-PCB
#687
SB-PCB
Groove
Red:DC/DC-PCB
Black:DC/DC-PCB
Main condenser
#1043
#140
・
Fit the SB-PCB with the boss, and x it with the screw (#687).
・
Solder the two wires (connected from DC/DC-PCB) and put them in the
groove for arrangement.
・
Adhere the main condenser unit with the adhesive double-coated tape by
putting in the direction for positioning.
・
Solder the two wires of the main condenser.
SB PCB
Bosses
The edges of [#1043] and [#140]
must be aligned.
#142
#1043 #140
Direction for positioning
Positioning
