VBA10401-R.3623.A
- D16 -

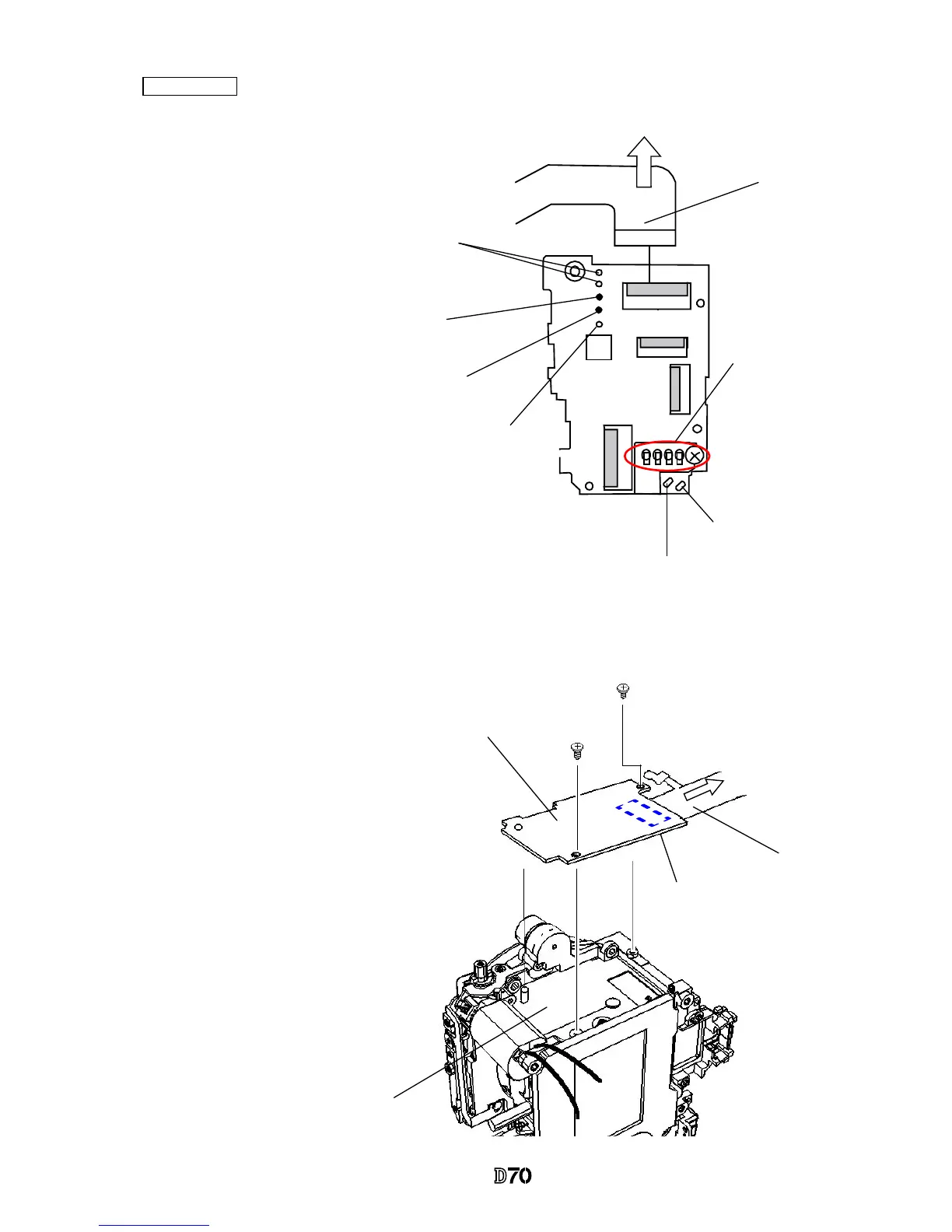

Take out the screws (#658 and #632) to
detach the main PCB (#B2001) from the
front plate.
Remove the connection FPC (#B1004)
from the connector.
#B1004
#B2001
#632
#658
Connector (backside)
Front plate
Remove the front body FPC (#B1009) from the
connector.
Remove the solders and soldering bridges of 7
wires.
Blue×2:
Top cover FPC
Yellow:
A/M change sw
Red:AF motor
Black:AF motor
Soldering bridge
#B1009
Brown:DC-DC
Main PCB
Black:
A/M change sw
