Nikon D70 VBA10401 User Manual

VBA10401-R.3623.A
- Ａ7 ･ -

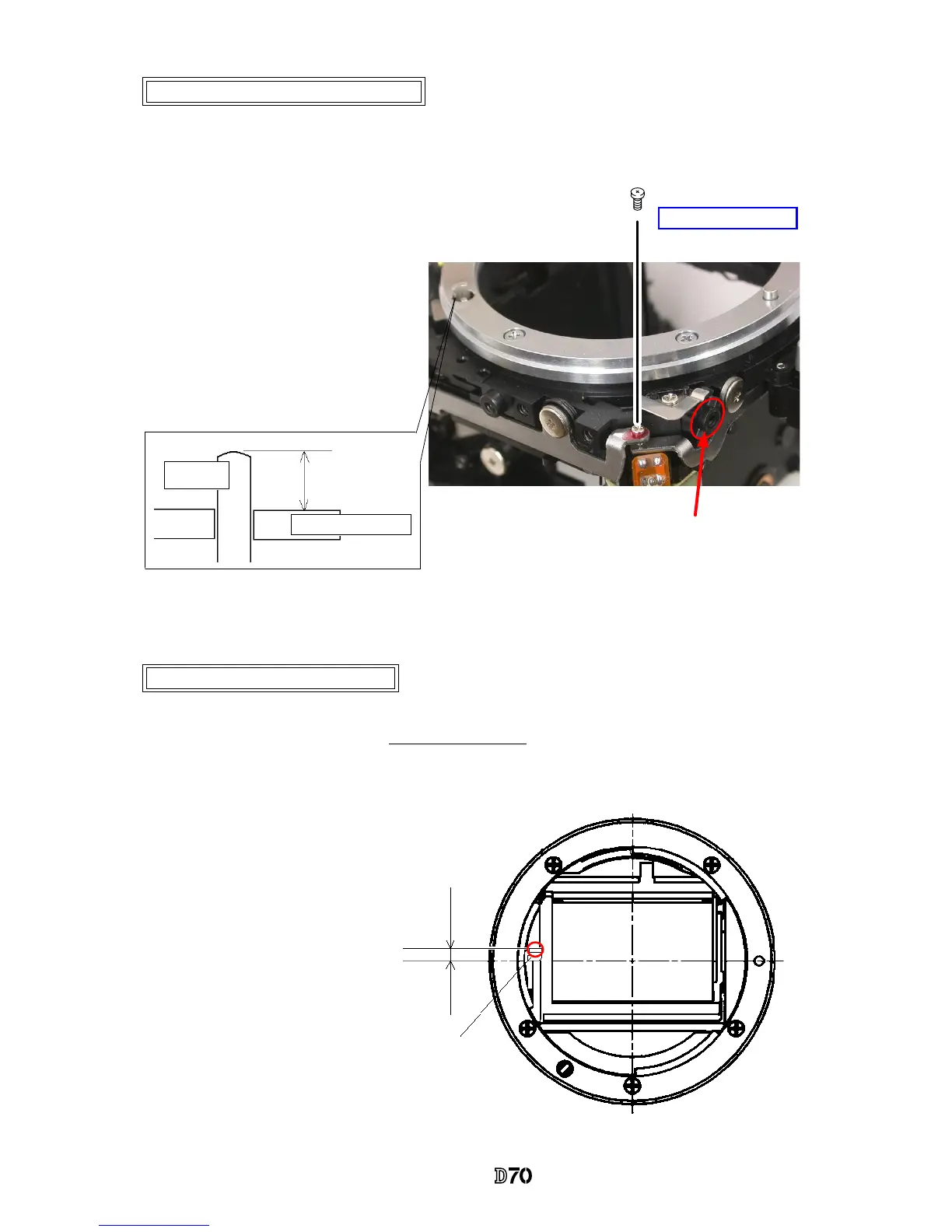

Height adjustment of AF coupling shaft
#
185
Bayonet mount
1.7±0.15mm
#
122
A/M change cam
#
625
Adhesive: Screw lock
①
Set the A/M change cam (#122) to
AF side. (i.e. The AF coupling
shaft
(#
185) sticks out of the
bayonet.
)
②
Adjust the height of the AF coupling
shaft (#185) with the screw (#625)
so that it becomes 1.7±0.15mm.
③
After the adjustment, x the screw
(#625) with screw lock.
Height adjustment of Aperture lever
・
Measure the height of the aperture lever by using the tool (J18004).
Standard: 3.4±0.1mm
In case the value is out of standard, make an adjustment by bending the circled part.
Be careful NOT to bend the inner part of the lever when adjusting!
3.4±0.1mm
Aperture lever
