Nikon D70 VBA10401 User Manual

VBA10401-R.3623.A
- Ｄ17 ･ -
・

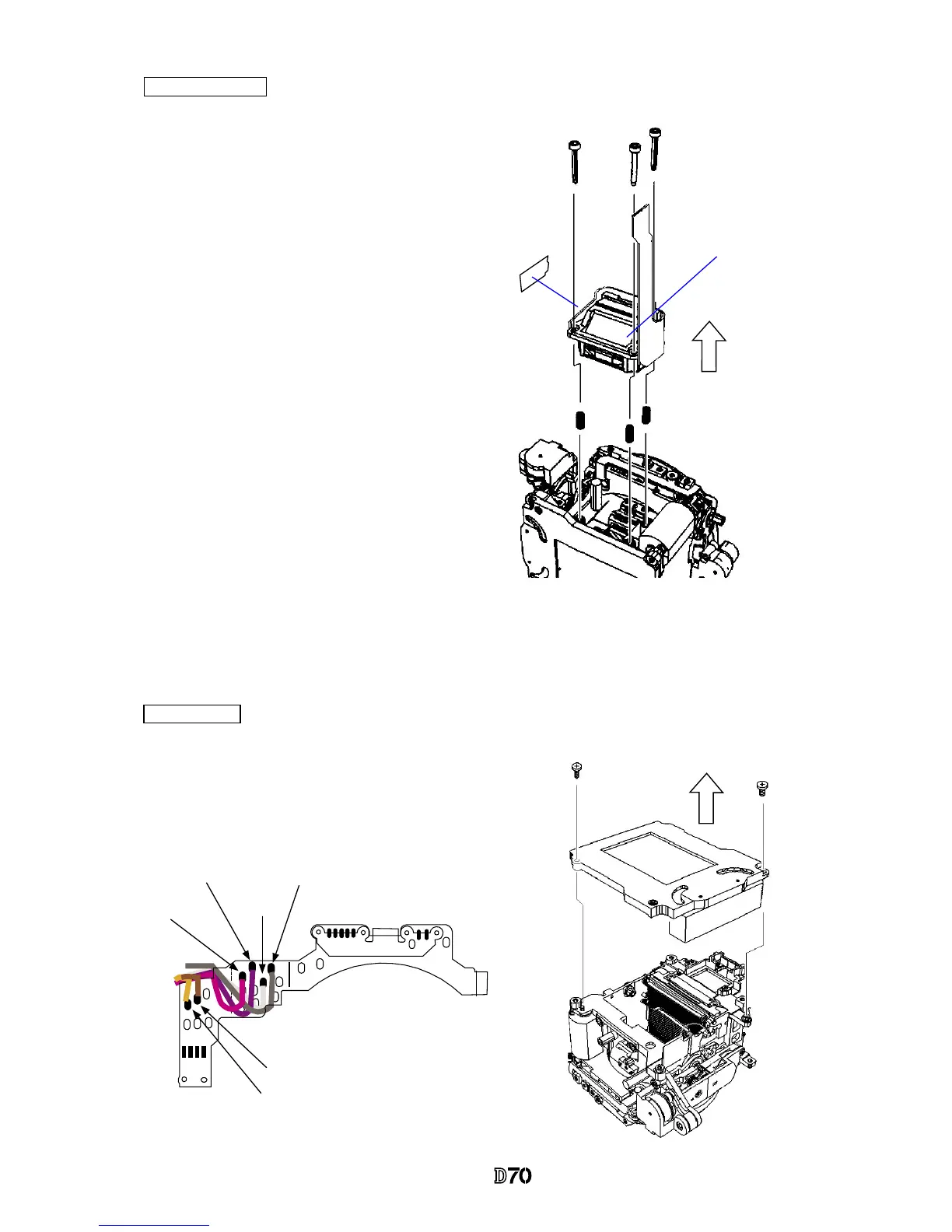

Take out 3 screws (#636) with Hexagonal
wrench, and remove the AF sensor unit
(#B2163).
・
3 springs (#170) come off, too.
AF sensor unit
#B2163
＃
170×3
＃
636×3
#728
Orange
Brown
Pink
Purple
White
Gray
・
Remove the solders of 6 wires.
・
Take out the screws (#607 and #627) to
detach the shutter unit (#B31).
#B31
#607
#627
AF sensor unit
Shutter unit
