VBA10401-R.3623.A
- Ａ35 ･ -
Accuracy inspection and adjustment (Camera body)

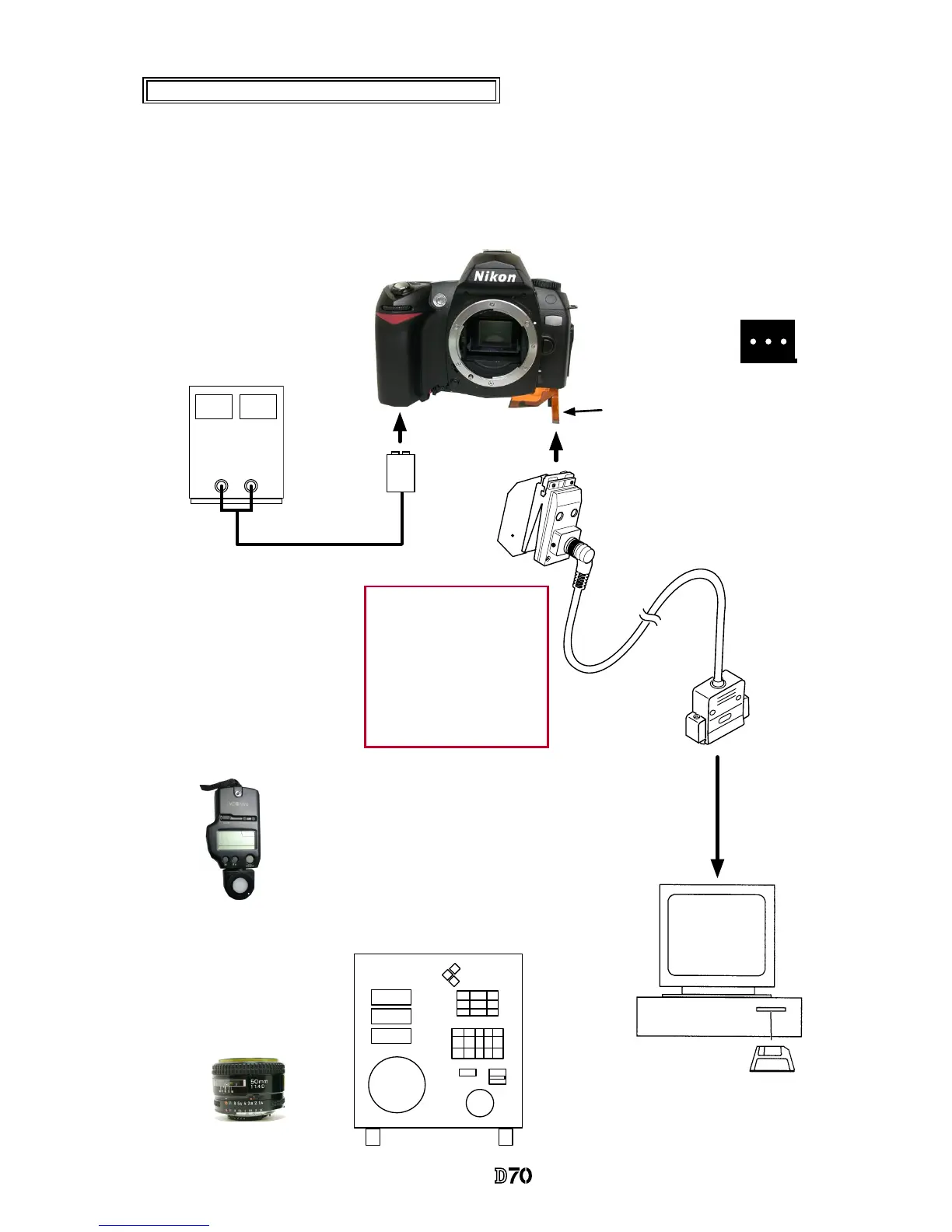

・ To connect to PC, as shown below, connect MC-31 (J19109) to the connector of RS232 on PC, then attach
the communications tool (newly prepared as RP) (J61205) to the connection FPC of camera.
(Refer to next page for how to connect J61205)
To RS232C terminal
Shutter tester (EF-8000, etc)
AF50/1.4D
J18361
D70 inspection and adjustment
software
Battery tool
J61197
J19109
In case of 9 pin type terminal of
RS232C, connect by using 25
pins - 9 pins converting connector.
But this is not provided by RJ, so
use goods on the market.
J61205
Connection FPC
＊
Note
:
When checking “battery check”,
be sure to use the battery tool
(J61167).
Note)
When connecting to PC by the
communications tool (J61205)
with the memory compression
PCB attached, be sure to
remove the
＊
-marked FPC
from the connector on Page
A41.
AECCD
alignment tool
(J15411)
Flash meter
Not prepared as RJ
Stabilized power supply
Set value ＝ 9.0V、 0.5Ω
5.0A
or AC adapter EG-5
To Next Page
