VBA10401-R.3623.A
- Ｄ19 ･ -

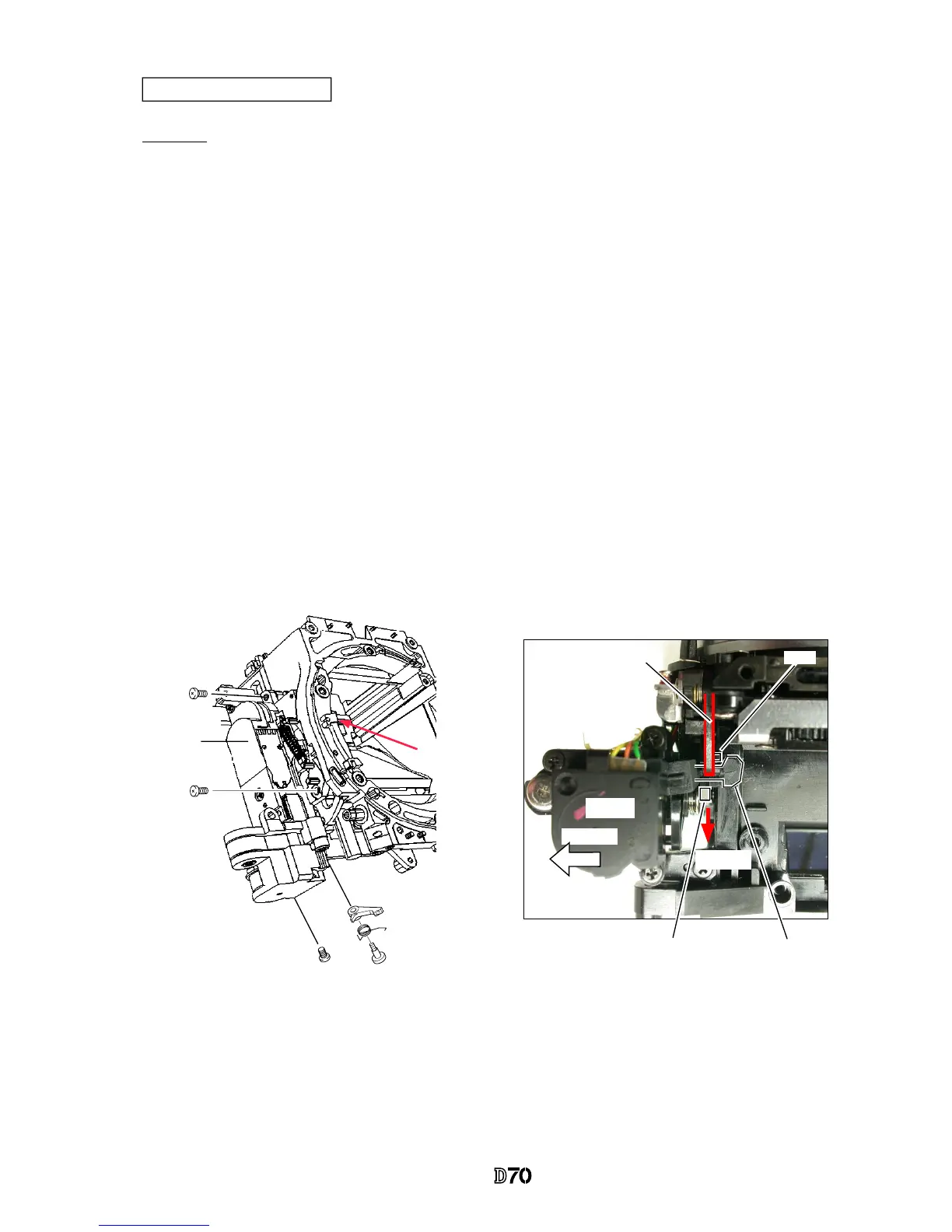

Procedure
1.
Take out 3 screws (#642).
2. Remove the screw (#661), spring (#214) and lever (#254).
3.
Lock the mirror-up lever (#203) with the preview locking lever (#222).
4.
When the aperture lever is pressed down with nger, the aperture coupling lever (#207) moves in the
direction of arrow (
①
).
5.
In state of 4
.
, remove the aperture control unit (#B241) by pulling it in the direction indicated by
arrow (
②
) while letting the arm (#B241) escape.
Arm of #B241
#207
#203
Lock #203 with this lever.
#222
Arrow
②
Arrow
①
#B241
#642×3
#254
#214
#661
#B241
Aperture lever
Front body viewed from the bottom
Aperture control unit
To Next Page
