Nikon D70 VBA10401 - Page 65

VBA10401-R.3623.A
- Ａ34 ･ -
・

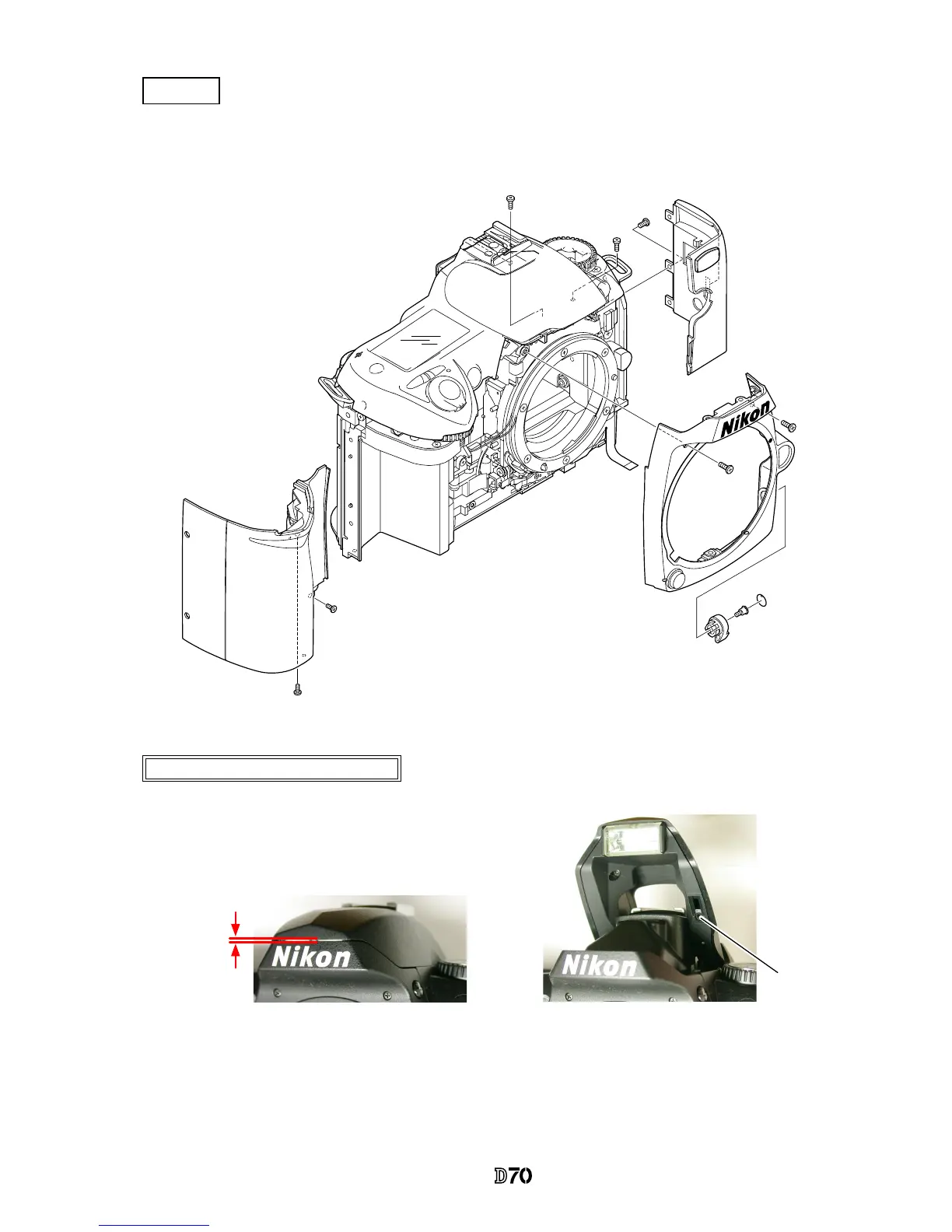

Assemble the front cover (#B24) at the
last stage.
#124
#659
#B26
#121
#684
#631
#611×2
#611×2
#28
#608
#B24
Adjusting dial
Gap adjustment of SB lighting unit
Standard
：
0
～
0.5mm
・
In case it is out of standard, pop the SB unit up and
make an adjustment by turning the adjusting dial with
Hexagonal wrench.
・
Pop the SB lighting unit up and attach it
with 2 screws (#611).
Covers
