Inner LCD unit
#295
#22
#B2010
#653×2
・

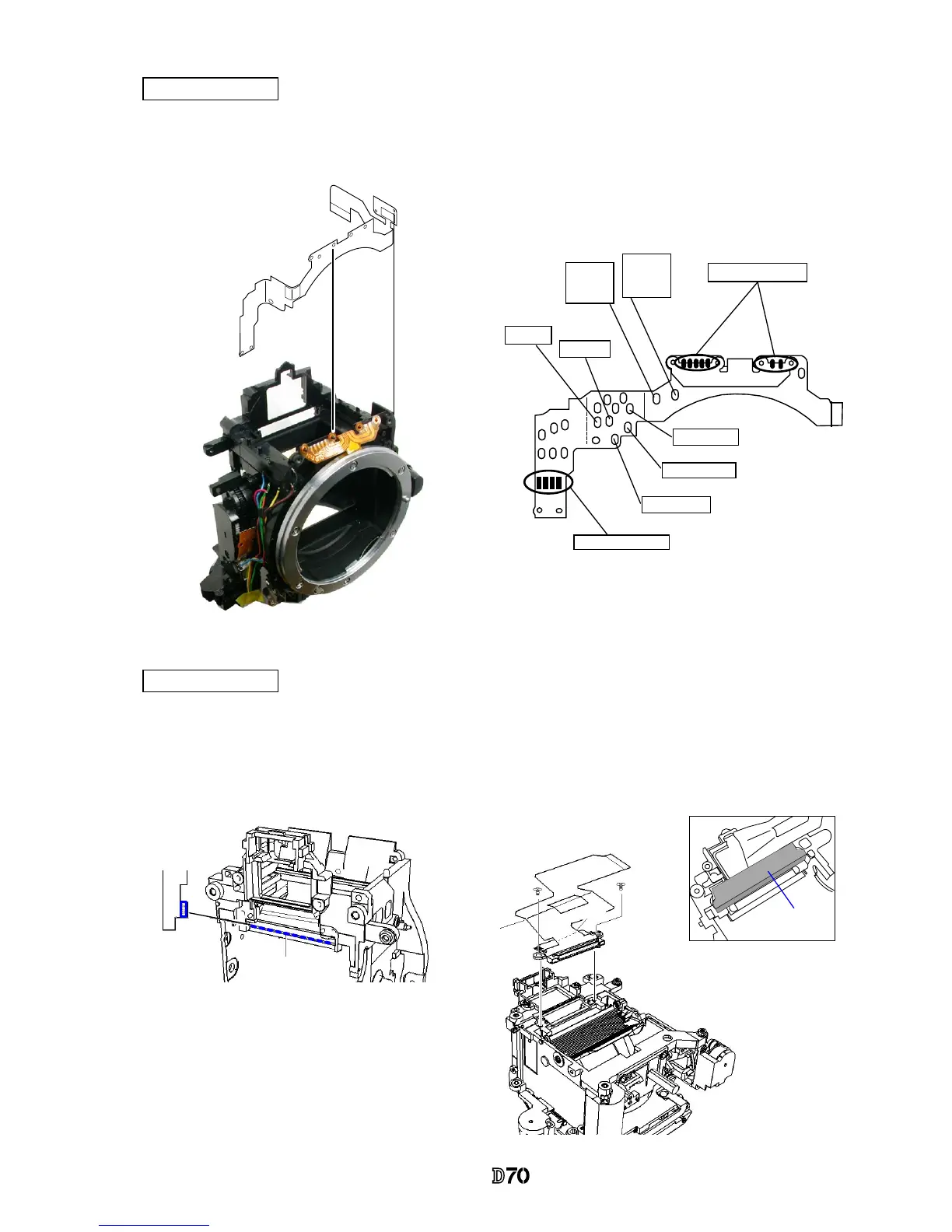

Attach the sponge (#295) on the front plate (#22).
・
Attach the inner LCD unit (#B2010)
with 2 screws (#653).
・
Attach the tape (#797)
Front body FPC
#1009
Black
：
Fmin
Brown
：
Fmin
Soldering bridges
Green
：
SQ
Orange
：
SQ
Yellow
：
SQ
Blue:Mg
Red:Mg
Soldering bridge
Attachment of #797
#797
