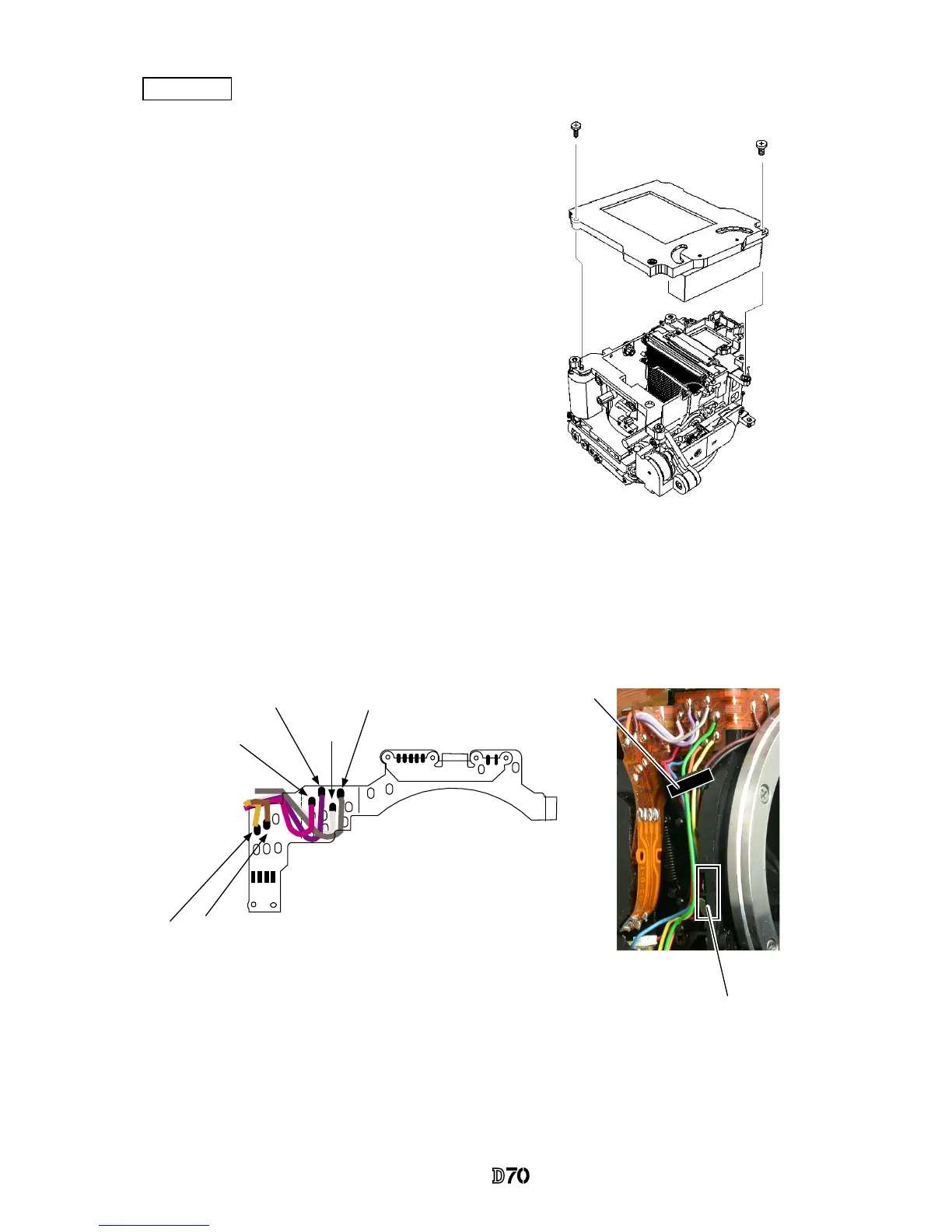

Shutter unit
・
Attach the shutter unit (#B31) with the screws
(#607 and #627).
・
Make soldering bridges and solder wires.
Orange
Brown
Pink
Purple
White
Gray
・
Make an arrangement of wires and attach 2
pieces of tapes.
#B31
#607
#627
#713
Wire arrangement
#773
Protect F-min sw
