VBA10401-R.3623.A
- Ａ5 ･ -
・

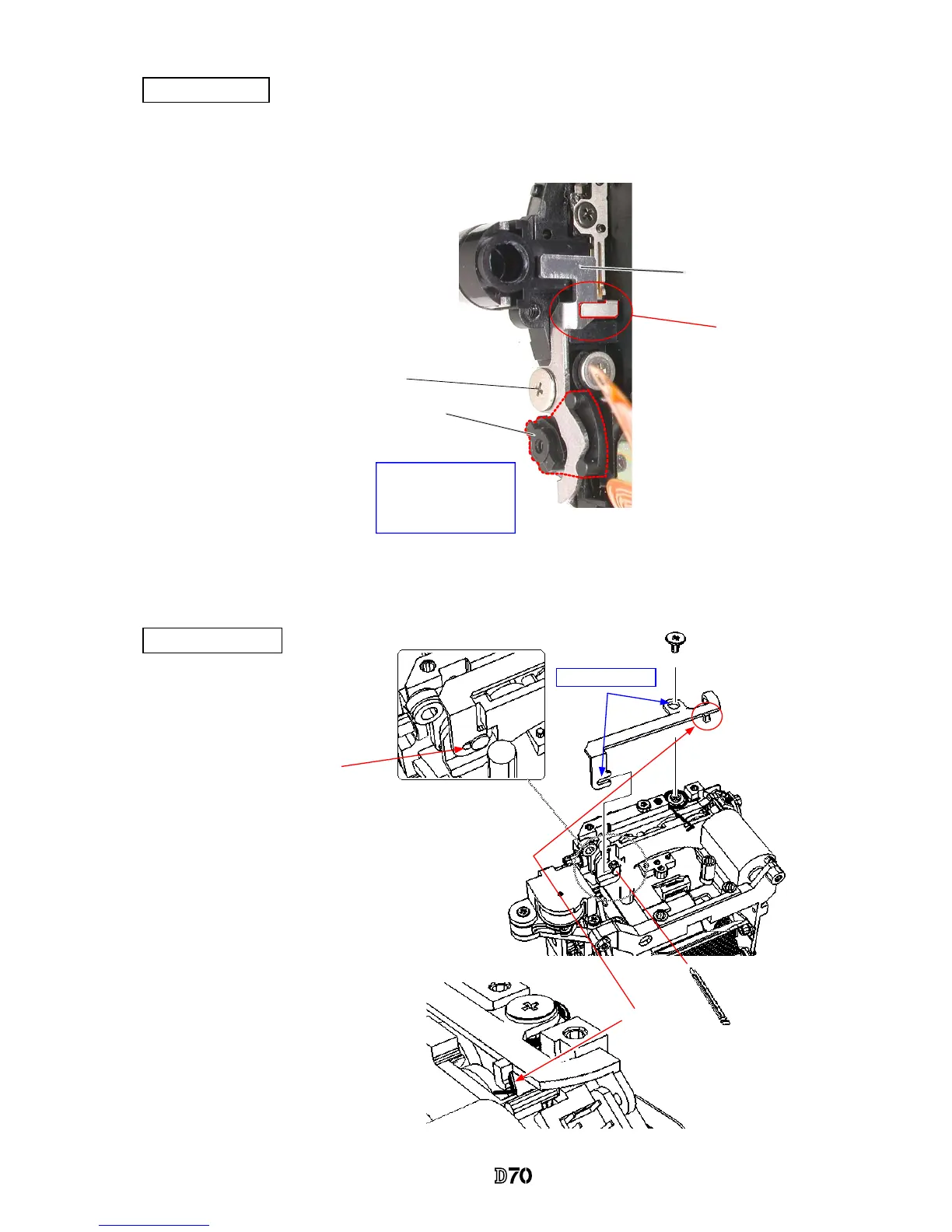

Assemble by the following order.
#
122→
#
191→
#
630
＊
Note: Be careful NOT to bend the
contact blade of the lens release
SW.
Vertical lever
#
195
Position for
hooking spring
#
185
・
Insert the U-shaped part of
#193 into the groove of the AF
driving shaft (#185).
＃
630
＃
193
Horizontal lever
Grease:LEN317A
＃
191
#
630
#
122
Lens release SW
comes on the lever.
Grease:
LEN317A
Apply to inner diameter
of #122 and #191
