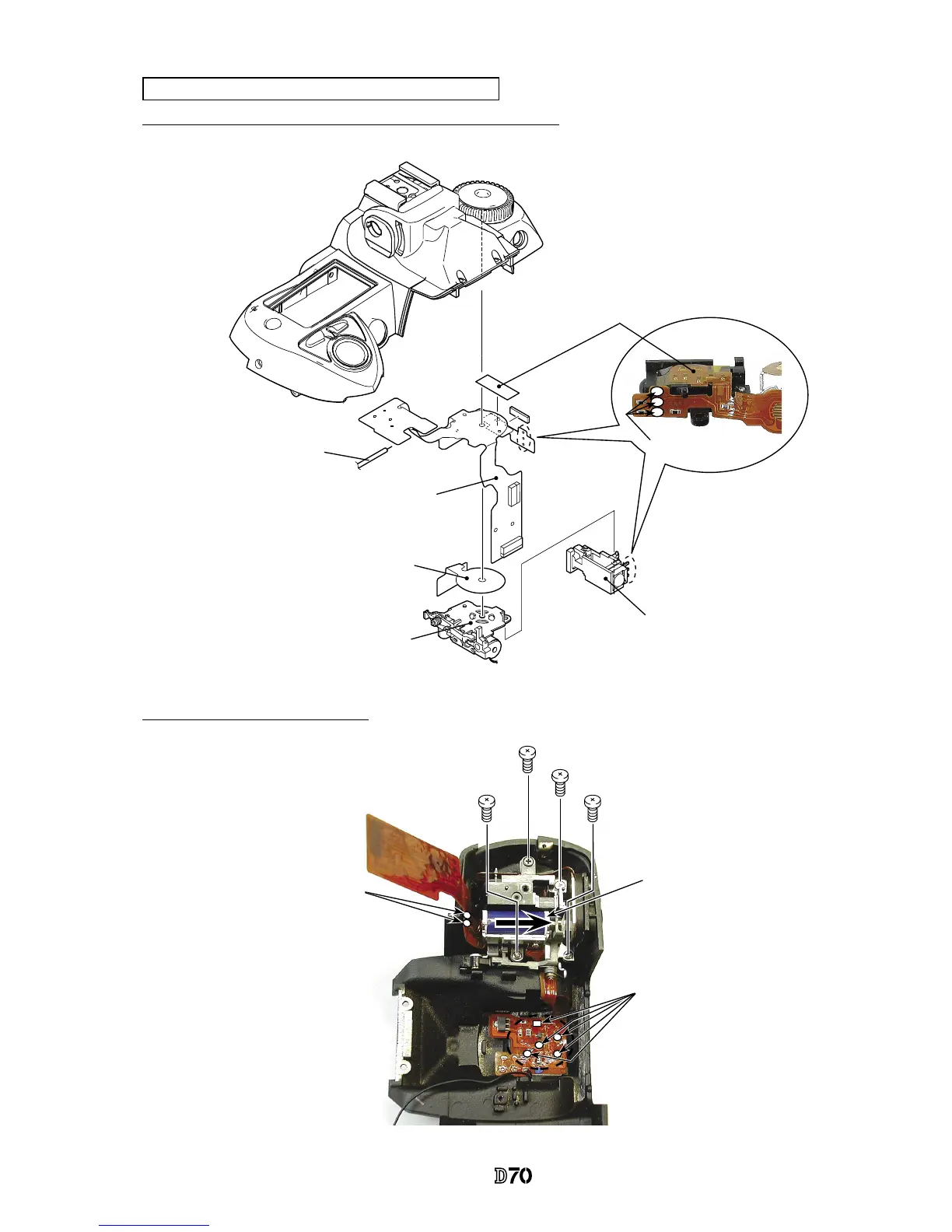

Attach Mode dial PCB and Remote control unit to Top cover FPC
3 soldering bridges
Tape (#733)
Both-sided adhesive tape (#464)
Top cover FPC
Black: DC/DC PCB
Mode dial PCB
Remote control unit
Remote control
unit
Top cover FPC, Remote control unit, Mode dial PCB
Attaching screws, soldering bridges
#642
#635
#608×2
5 soldering bridges
Solder: Pop-up solenoid
Direction for positioning
the mode dial PCB
