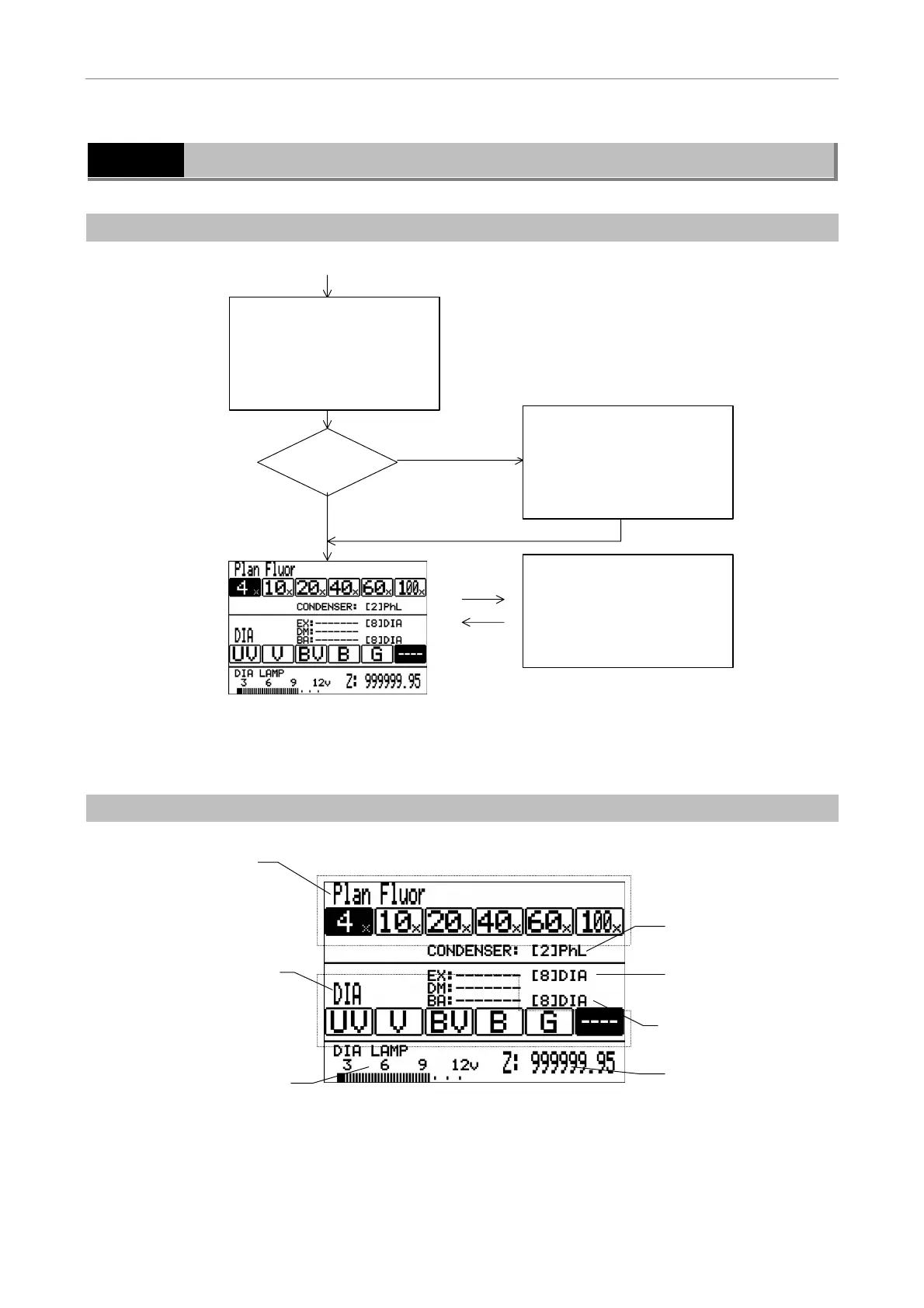

5 Screen Configuration
- 8 -
5
Screen Configuration
(1) Summary
Power ON
MODE key
MODE key
Is MODE key
pressed?
MODE key
No
Yes
Ｔ－ＲＣＰ ＲＥＭＯＴＥ ＣＯＮＴＲＯＬ ＰＡＤ
Ｖ１．００
ＳＥＴＴＩＮＧ ＭＥＮＵ
Ｏｂｊｅｃｔｉｖｅ
Ｃｏｎｄｅｎｓｅｒ
Ｆｉｌｔｅｒ
Ｅｘｃｉｔｅｒ
Ｂａｒｒｉｅｒ
Ｃｏｍｂｉｎａｔｉｏｎ（Ｏｂｊ．＞Ｃｏｎｄｅｎｓｅｒ）
Ｃｏｍｂｉｎａｔｉｏｎ（Ｆｉｌｔｅｒ＞ＥＸ／ＢＡ）
Ｍｏｒｅ
ＭＡＩＮＴＥＮＡＮＣＥ ＭＥＮＵ
１．Ｖｅｒｓｉｏｎ
２．ＴＥＳＴ１
３．ＴＥＳＴ２
４．ＰＡＤ Ｄａｔａ
５．ＨＵＢ Ｄａｔａ
６．Ｃｏｎｔｒｏｌ Ｄａｔａ
ａ．Ａｌｌ Ｃｏｎｔｒｏｌ Ｄａｔａ
ｂ．Ｒｅｖｏｉｖｉｎｇ Ｎｏｓｅｐｉｅｃｅ
ｃ．Ｃｏｎｄｅｎｓｅｒ Ｃａｓｓｅｔｔｅ
ｄ．Ｌｉｇｈｔ Ｐａｔｈ
ｅ．Ｆｉｌｔｅｒ Ｂｌｏｃｋ
ｆ．Ｅｘｃｉｔｅｒ Ｆｉｌｔｅｒ
ｇ．Ｂａｒｒｉｅｒ Ｆｉｌｔｅｒ
ｈ．ＡＵＸ Ｆｉｌｔｅｒ
Note:
If power is turned ON while the MODE key is held down, the MAINTENANCE MENU screen will appear.
(2) Layout of OPERATION Screen
Objective lens
information
P. 15
Condenser module
information
P. 16
Excitation filter
information
P. 18
Barrier filter
information
P. 19
Filter block information
P. 17
Z-axis position
P. 23
Dia-Illumination
lamp voltage
P. 29
Note:
If the electric components are not connected to the HUB controller, information for the unconnected
components will not appear.
