Nikon T-RCP User Manual

VI Maintenance Menu
3 Testing Hardware of Remote Control Pad
- 61 -
VI
3 Testing Hardware of Remote Control Pad

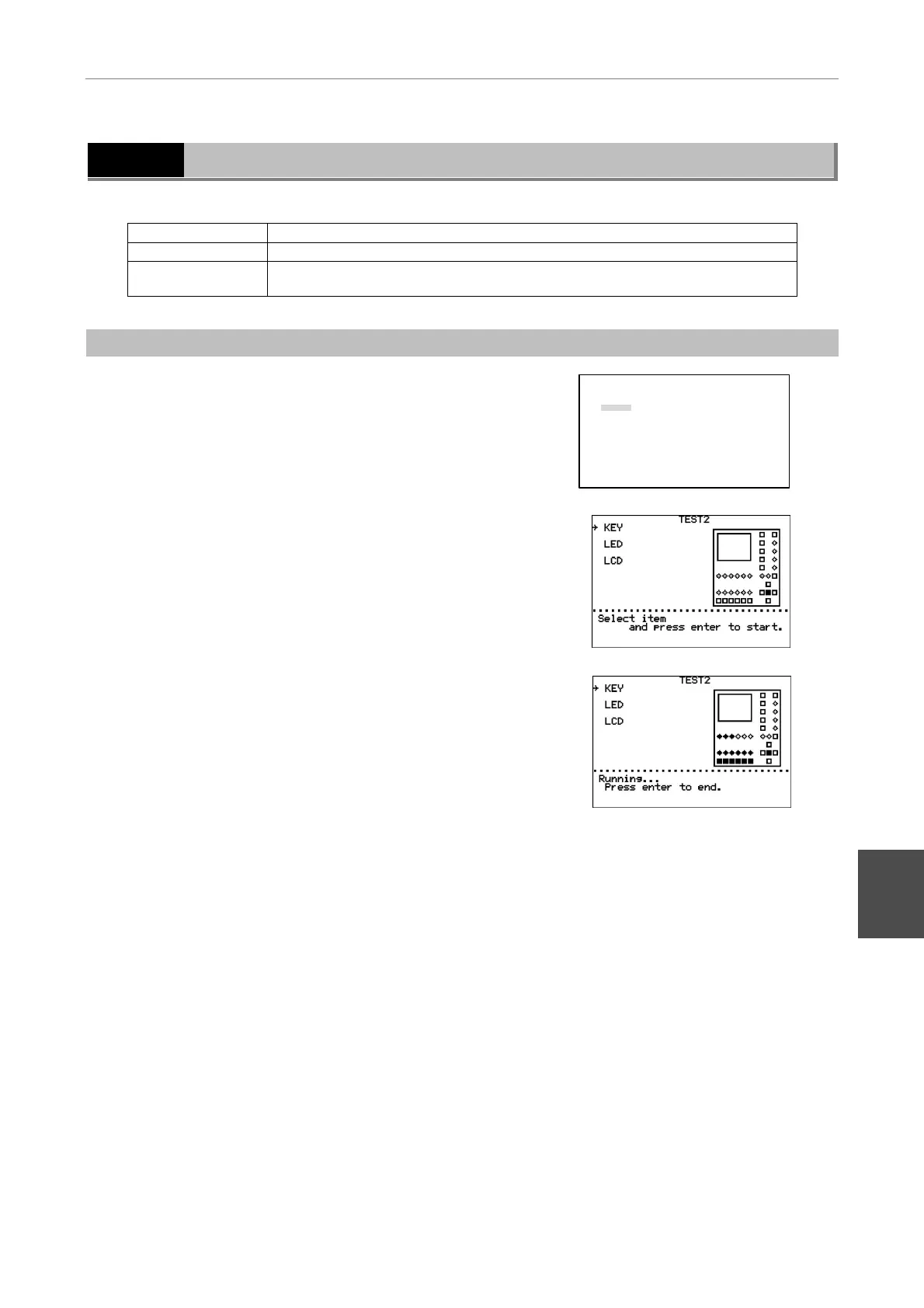

The following tests are available to evaluate the hardware of the remote control pad.
Key input test Checks to see if the input of each key is read correctly
LED ON/OFF test Checks to see if all the LEDs are controlled correctly
LCD indication test Checks to see if the LCD indication is controlled correctly and tests the quality of the
LCD
(1) Key Input Test
1
Turn on the power to the HUB controller while holding
down the MODE key.
After the MAINTENANCE MENU screen appears, release
the MODE key.
Select “TEST 2” using the
S key or the T key and press
the [

] key.
ＭＡＩＮＴＥＮＡＮＣＥ ＭＥＮＵ
１．Ｖｅｒｓｉｏｎ
２．ＴＥＳＴ１
３．
ＴＥＳＴ２
４．ＰＡＤ Ｄａｔａ
５．ＨＵＢ Ｄａｔａ
６．Ｃｏｎｔｒｏｌ Ｄａｔａ
ａ．Ａｌｌ Ｃｏｎｔｒｏｌ Ｄａｔａ
ｂ．Ｒｅｖｏｉｖｉｎｇ Ｎｏｓｅｐｉｅｃｅ
ｃ．Ｃｏｎｄｅｎｓｅｒ Ｃａｓｓｅｔｔｅ
ｄ．Ｌｉｇｈｔ Ｐａｔｈ
ｅ．Ｆｉｌｔｅｒ Ｂｌｏｃｋ
ｆ．Ｅｘｃｉｔｅｒ Ｆｉｌｔｅｒ
ｇ．Ｂａｒｒｉｅｒ Ｆｉｌｔｅｒ
ｈ．ＡＵＸ Ｆｉｌｔｅｒ
2
Move “→” using the S key or the T key to select “KEY.”
Press the [

] key.
3
Press the keys (except the [

] key) one by one.
When the input for a key is read correctly, the key position
in the key layout on the screen will be indicated in black.
4
Press the [

] key to end the key input test.
5
Press the MODE key to return to OPERATION screen.
