Nilfisk-Advance SC800 Service Manual

Service Manual: SC750, SC800, SC 750 ST, SC800 ST
Form Number 56043150 Page 129
13. Reinstall the paddle cover. (Reconnect the speed limit potenometer wiring.)
14. Rotate the handle assembly back up into posion and loosely install the top mounng bolts.
15. Tighten all 4 handle mounng bolts.
Paddle Centering Springs - Non-ST models - SC750, SC800

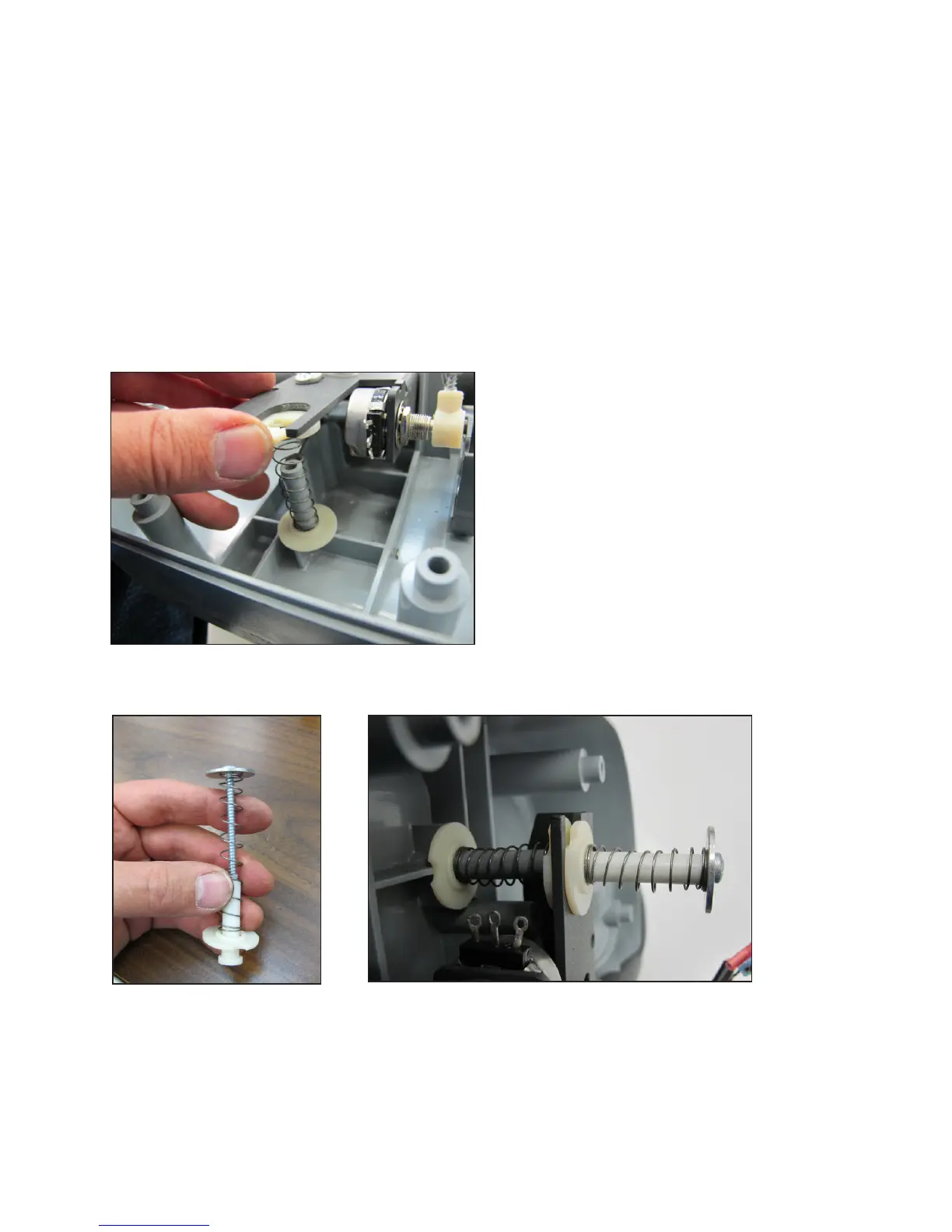

In the event that the paddle centering springs and hardware need to be replaced, these photos will help you assemble it
correctly.
1. Carefully remove the aaching screw. Pieces will y apart if you do not retain the springs.
2. When reassembling, install the “lower stack” rst. The shoulder of the nylon washers goes toward the spring.
Carefully posion the pieces so that they stay in place.
