Service Manual: SC750, SC800, SC 750 ST, SC800 ST
Form Number 56043150 Page 86

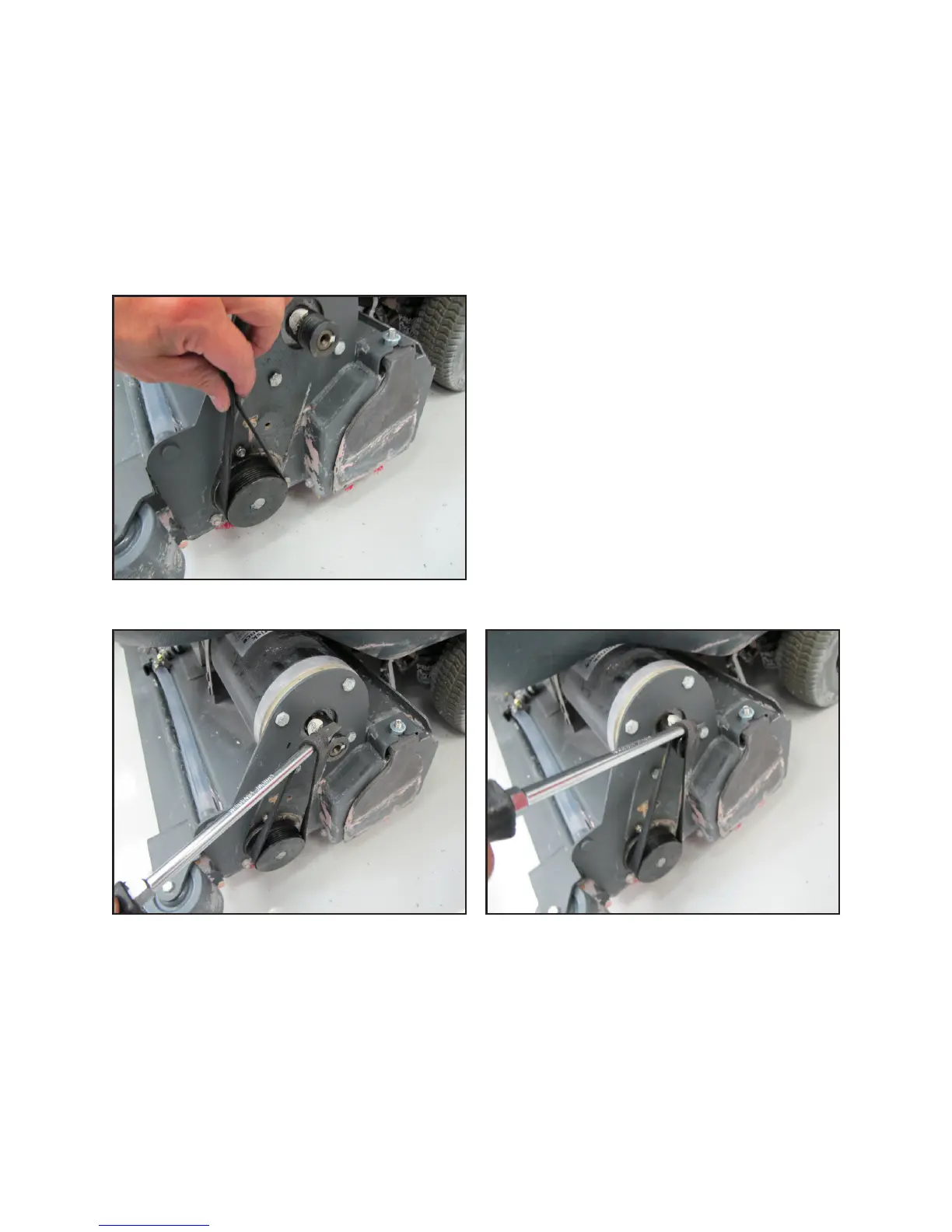

Brush Drive Belt
The drive belt is a “stretch belt” and may appear “too short”. It is not tensioned with a sloed adjustment but instead is
stretched on much like a vacuum cleaner belt.
1. Remove belt cover.
2. Pry the brush drive belt o the drive motor pulley using a screw driver.
3. Install the belt on the brush drive pulley rst.
4. Use a screwdriver to pry the belt onto the motor pulley using a rolling acon.
5. If the belt grooves are not quite in place, push on the side of the belt while rotang the pulley unl the belt
grooves are properly seated in the pulley.
6. Reinstall the belt cover.
