Main Broom System 170Service Manual – SW4000
Skirt Disassembly/Assembly
Preliminary Operations
1. Empty the hopper (as shown in the User Manual), because the weight of the waste inside the hopper can
affect the skirt height check.
2. Drive the machine on a level ground that is suitable for checking the skirt height.
3. Turn the ignition key to “0” and engage the parking brake.
Side Skirt Removal and Installation
4. Remove the machine left and right doors by turning the relevant fasteners.

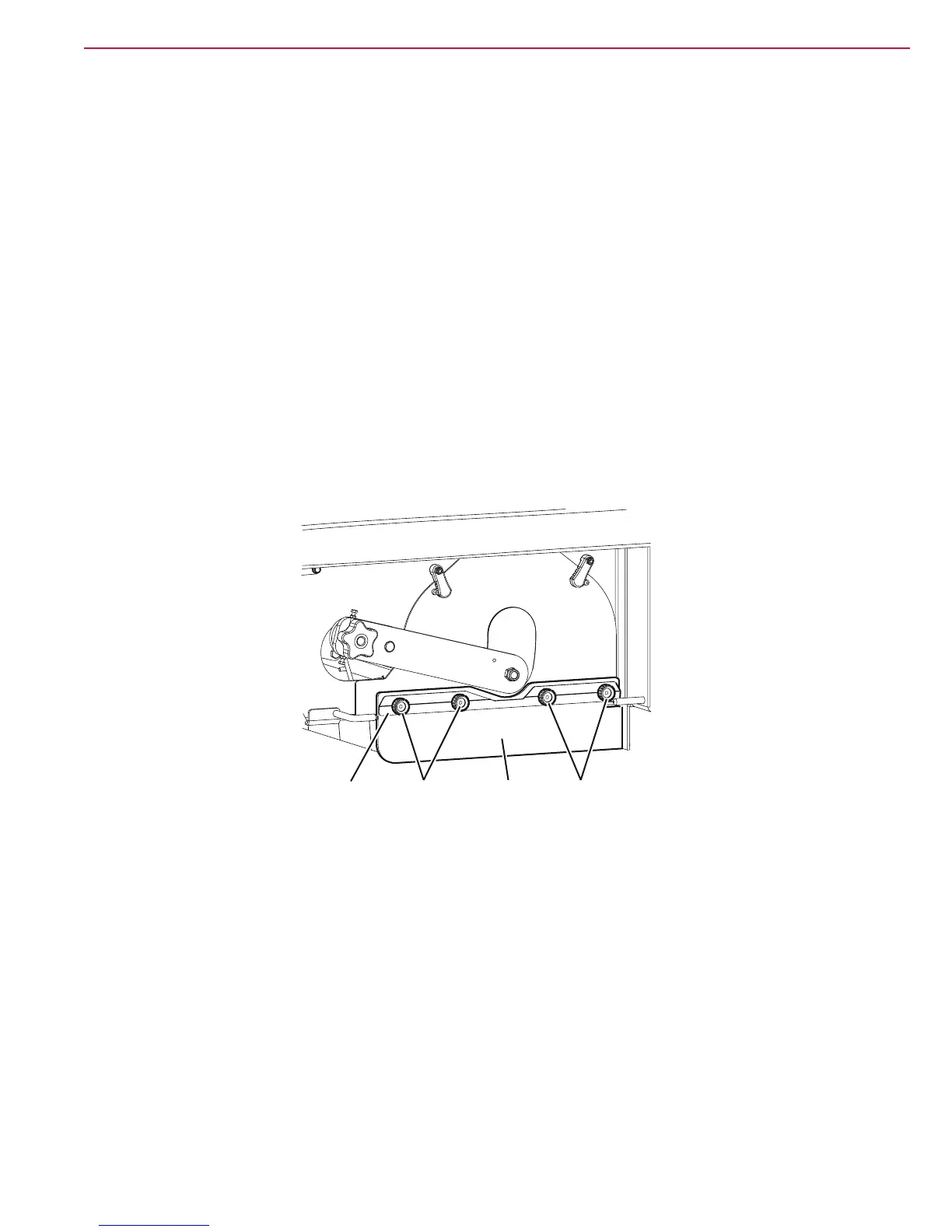

5. Unscrew the knobs (A).
6. Remove the plate (B) and the right/left skirt (C).
7. Assemble the right/left skirt (C) and the plate (B).
8. Screw down the knobs (A), without tightening them.
9. Check the skirt height.
C
B
P200240
To Next Page
