Nilfisk-Advance SW4000 Service Manual

Main Broom System 171Service Manual – SW4000
Skirt Disassembly/Assembly (Continues)

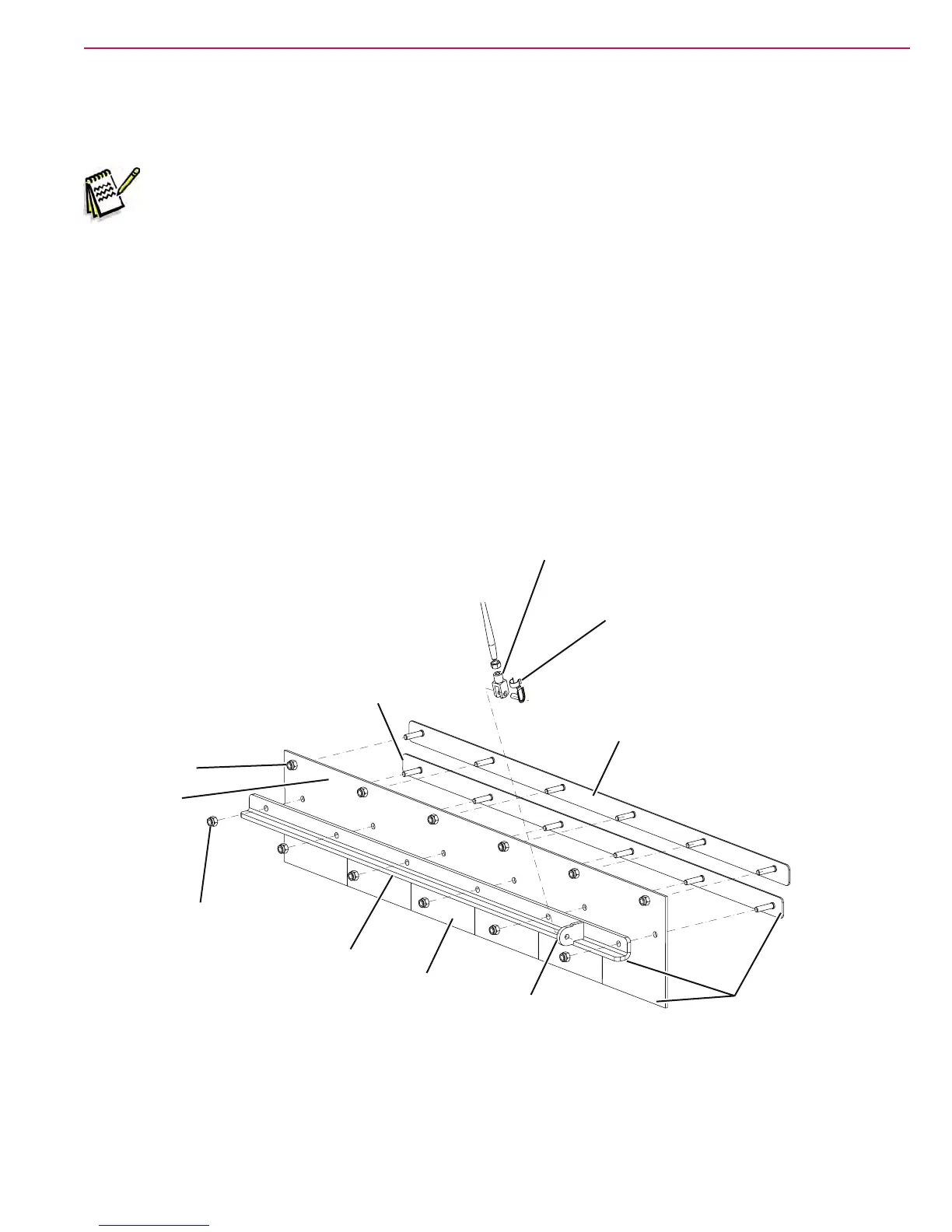

Front Skirt Removal and Installation
Note: Itisadvisabletoplacethemachineonahoistingsystem.
10. Remove the main broom.
11. Remove the side brooms.
12. On the left front side of the front skirt (D), disengage the clip (E) then disconnect the terminal (F) of the
skirt lifting tie rod form the bracket (G).
13. Remove the six nuts (H) then remove the strap (I) from the main broom compartment.
14. Remove the front skirt assembly (J) from the front.
15. At the workbench, unscrew the six nuts (K) and remove the section bar (L) and the strap (M).
16. Retrieve the front skirt (N).
17. Install the front skirt (N) in the reverse order of disassembly.
18. Check the front skirt height.
I
G
J
D
L
K
E
F
M
N
H
P200244
