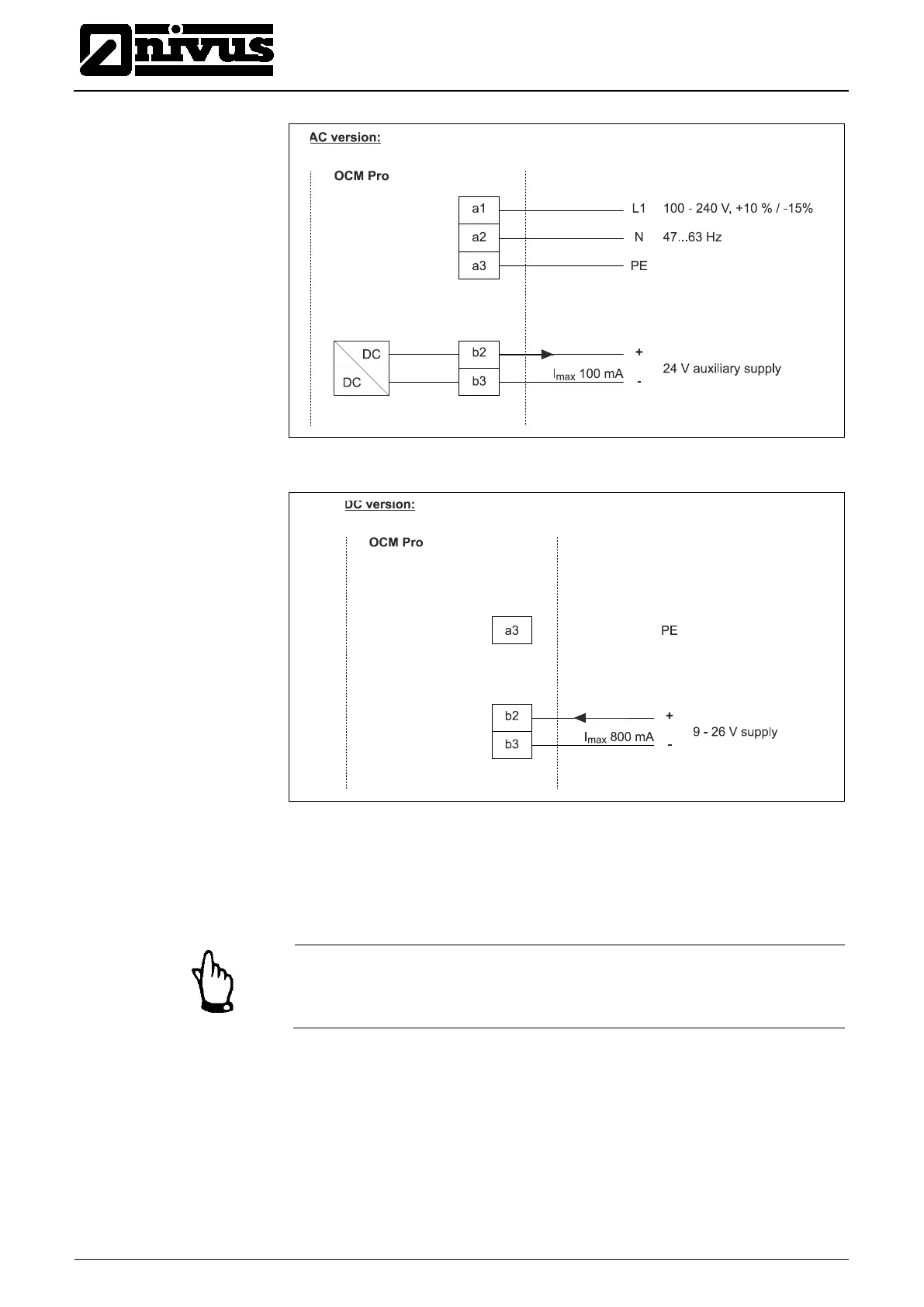

Fig. 7-36 AC model power supply
Fig. 7-37 DC model power supply
7.5 Regulator Mode
7.5.1 General
Note
Knowledge in control technology is necessarily required in order to correctly
and reliably set the controller!
An OCM Pro Type >M4< is required as soon as the transmitter itself shall be
used to control the flow rate.
Type >M4< has he following features:
- 1 external set point input
- 2 digital outputs to drive the regulator slide valve
- 2 digital inputs for the slide valve monitoring
If you operate an OCM Pro CF, type S4 for flow rate control please use a suffi-
cient external controller and program it according to manufacturer specifications.
