OCM Pro CF
OCM Pro CF - Rev. 09 as of 07.06.2016 page 49
7.4 Power Supply Wall and Panel Mount Enclosure
Depending on the type of OCM Pro used the unit can be powered with 85-
260 V AC (type: A4) or 8- 36 V DC (type: D4).
The two slide switches located above the terminals serve as additional ON or
OFF switches.
Wall mount enclosure
Panel mount enclosre

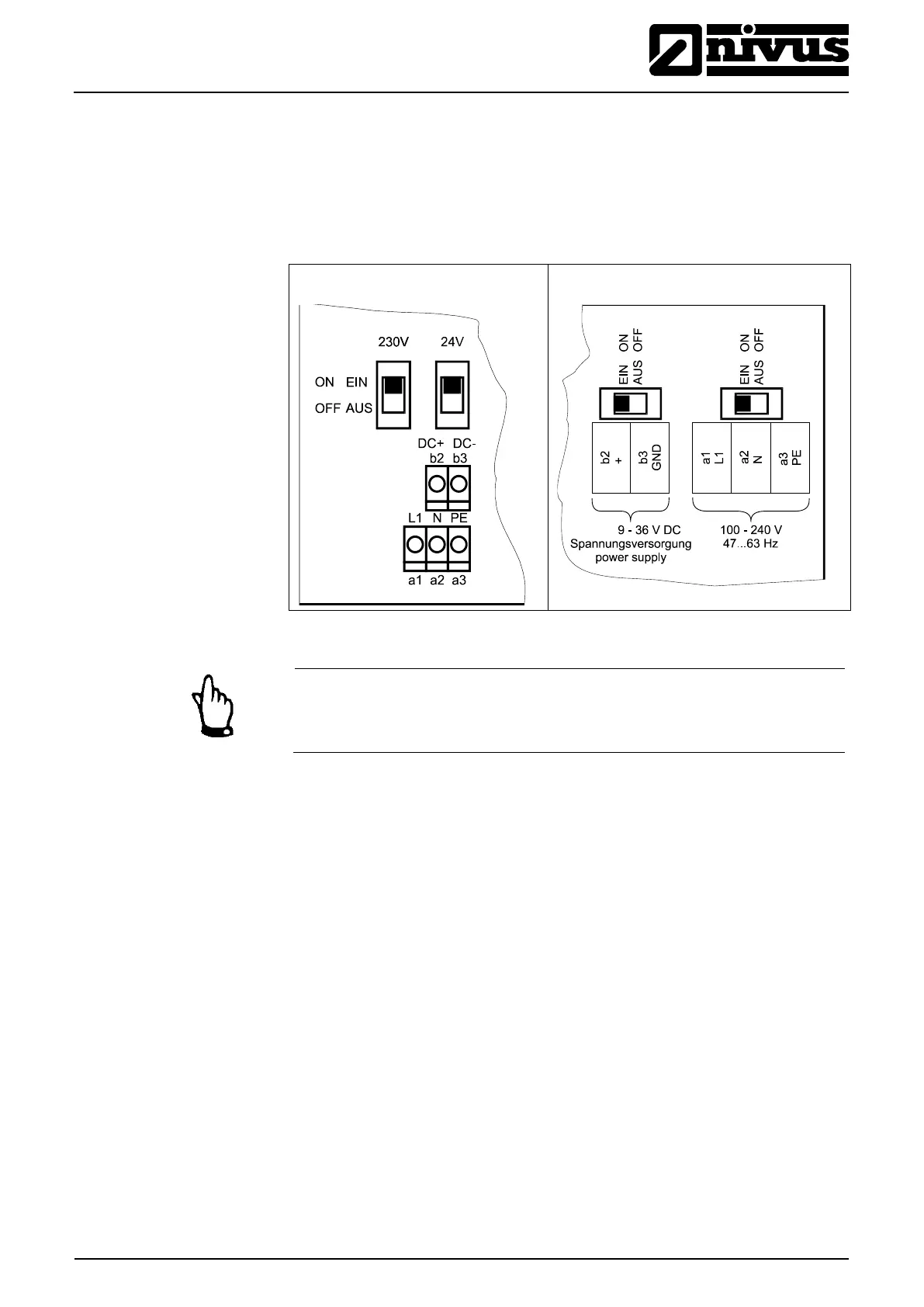

Fig. 7-35 Position of slide switch on the bus board
Important Note
A transmitter with 9-36 V DC cannot be operated with alternating current, just
as it is impossible to operate a 230 V AC transmitter with 9-36 V direct current.
When operated with alternating current, the direct current supply clamps b2 and
b3 both provide a voltage of 24 V and a maximum capacity of 100 mA (turn on
24 V switch!).
Please note, when using this supply voltage (e.g. for digital inputs with control
signals), it must not be shielded through the complete switchgear in order to
maintain disturbing interferences on a low level.
