OCM Pro CF
OCM Pro CF - Rev. 09 as of 07.06.2016 page 53

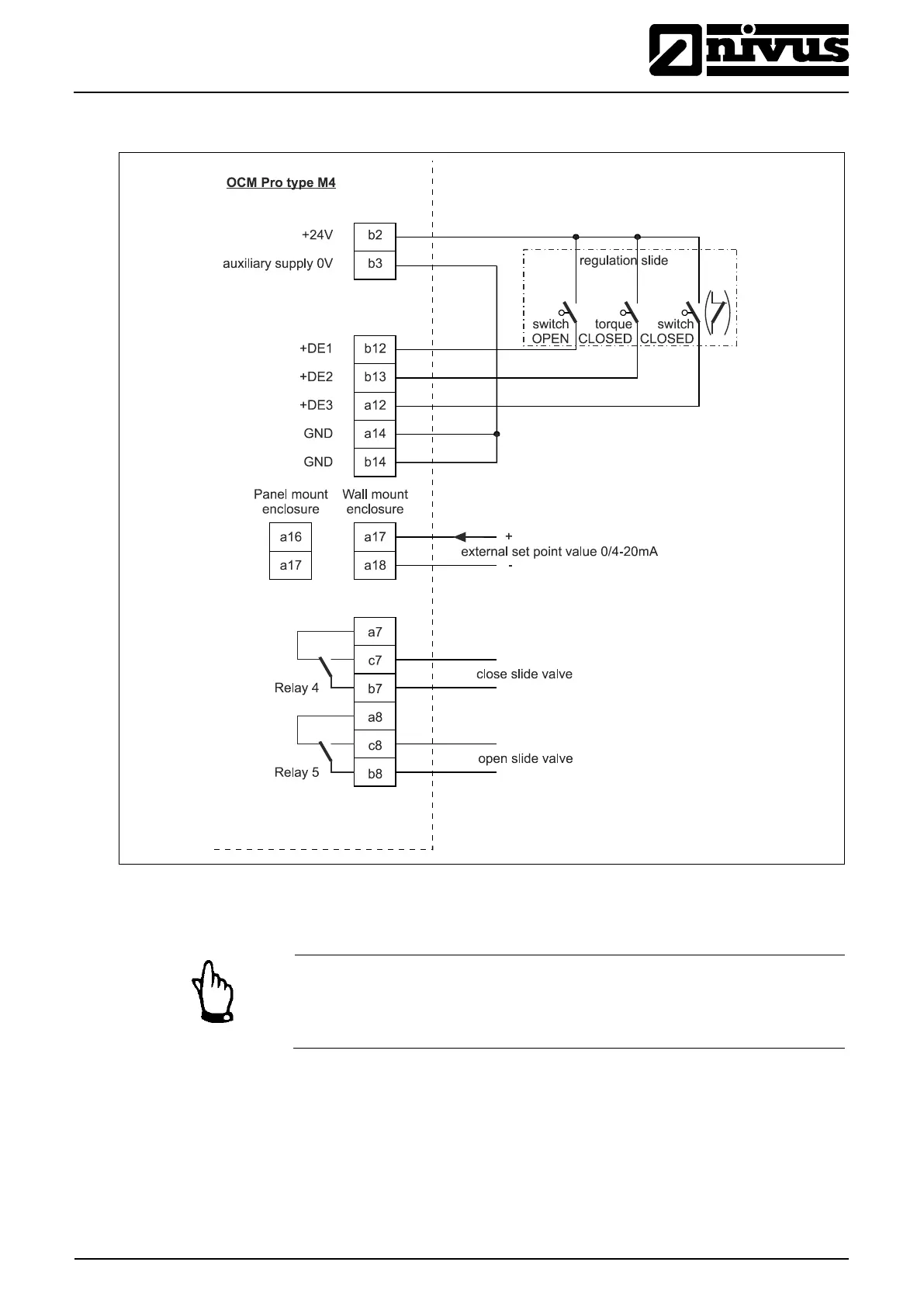

7.5.3 Regulator Mode Wiring Diagram
Fig. 7-39 Regulator mode wiring diagram
7.5.4 Control Algorithm
Note
Always use all 3 messages for slide valve control via digital inputs.
Activating one message only may result in disturbed regulator operation.
If the regulator function is selected (see also chapter 9.5.8) relay 4 is going to
self-activate for the function “SLIDE VALVE CLOSED“ and relay 5 for “SLIDE
VALVE OPEN“. This assignment cannot be modified.
The digital inputs are free programmable for position feedback. To ensure cor-
rect and failsafe slide valve drive necessarily use the messages "PATH OFF“,
"PATH ON“ and "TORQUE OFF“ of the slide valve drive.
The input current per digital input is 10 mA.
