Installing the Chassis
42
7210 SAS-M CHASSIS INSTALLATION GUIDE
3HE 10089 AAAA TQZZA Edition 01 Issue: 07

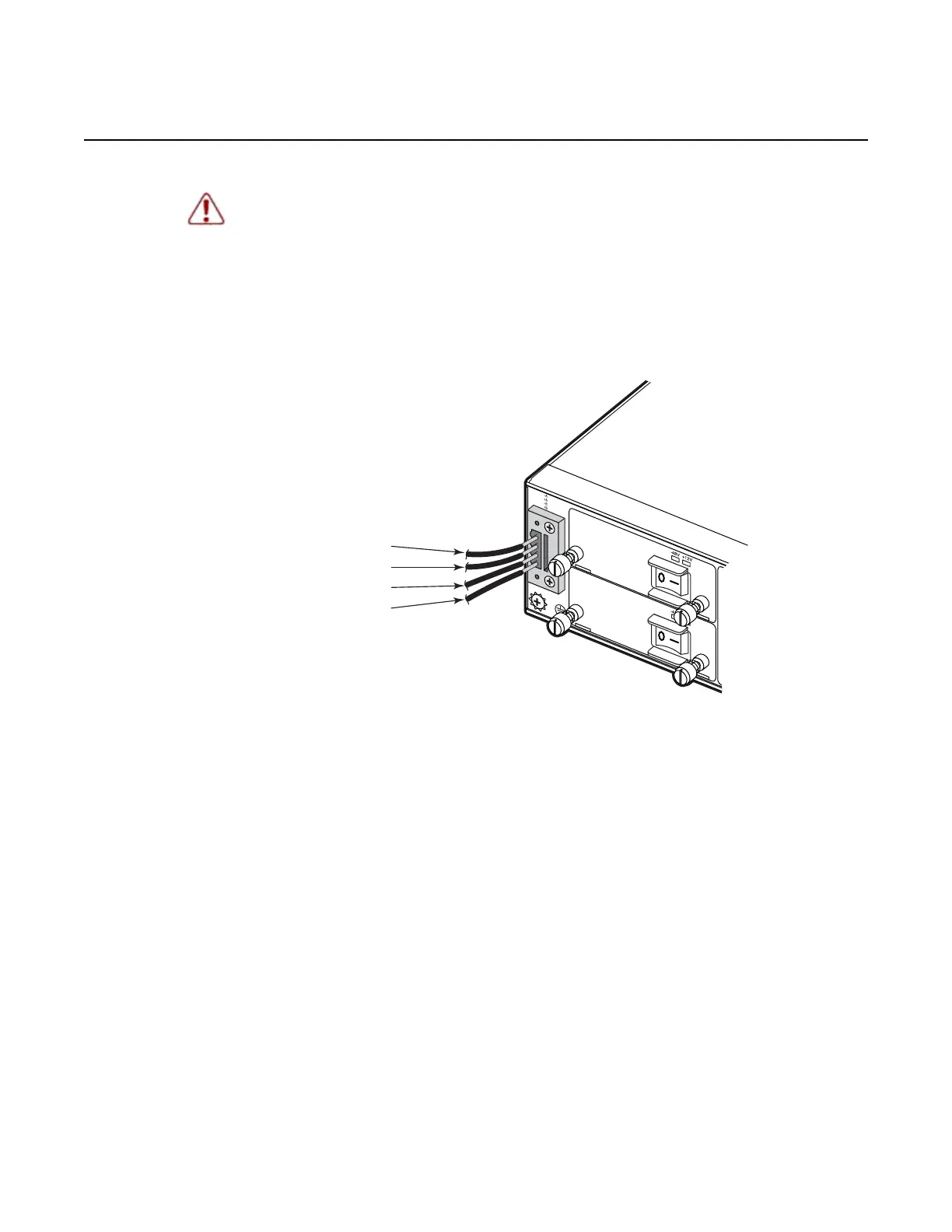

Figure 13 illustrates how to connect a –48 VDC power source to the
chassis:
Figure 13 Connecting to a –48 VDC Power Source
Figure 14 illustrates how to connect a +24 VDC power source to the
chassis:
Warning:
If the power leads are plugged in to the wrong holes, the power module will not work properly
and may damage the 7210 SAS-M.
-48V (A) (Pin 1)
Return (A) (Pin 2)
-48V (B) (Pin 3)
Return (B) (Pin 4)
