Audio
Pin Name Pin I/O Type Description
IHFAMPRN
LINOUT
AA21 O Analog Internal Hands-free driver
-

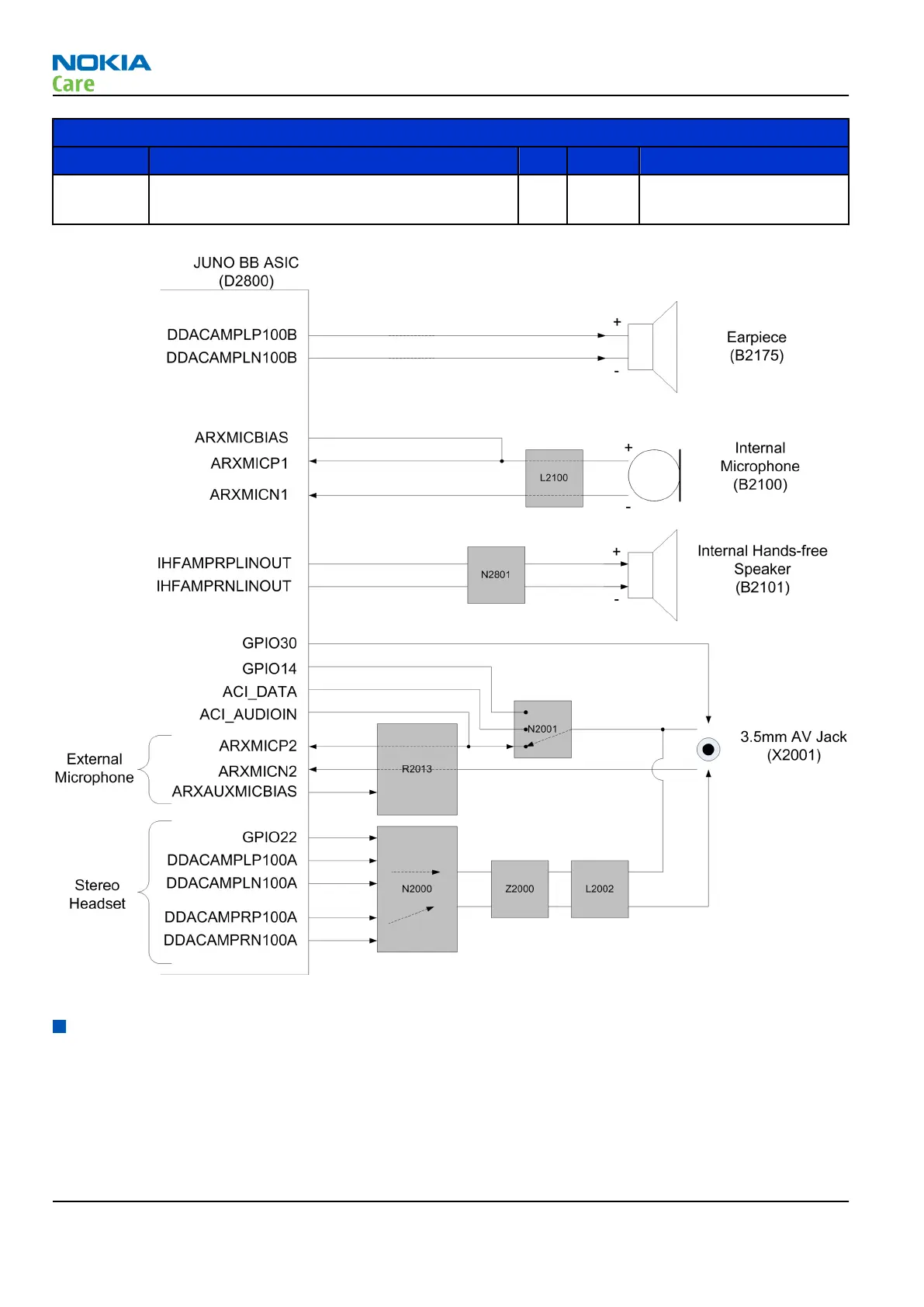

Figure 52 Electrical interface between baseband and audio components
RF description
RF General Description
The platform is based on the capabilities of the D2800 Juno Baseband ASIC (BCM21351) – a 65-nm quad-band
EDGE/GPRS/GSM multimedia baseband processor with an embedded RF transceiver.
