Nokia RM-497 - SIM Card Troubleshooting

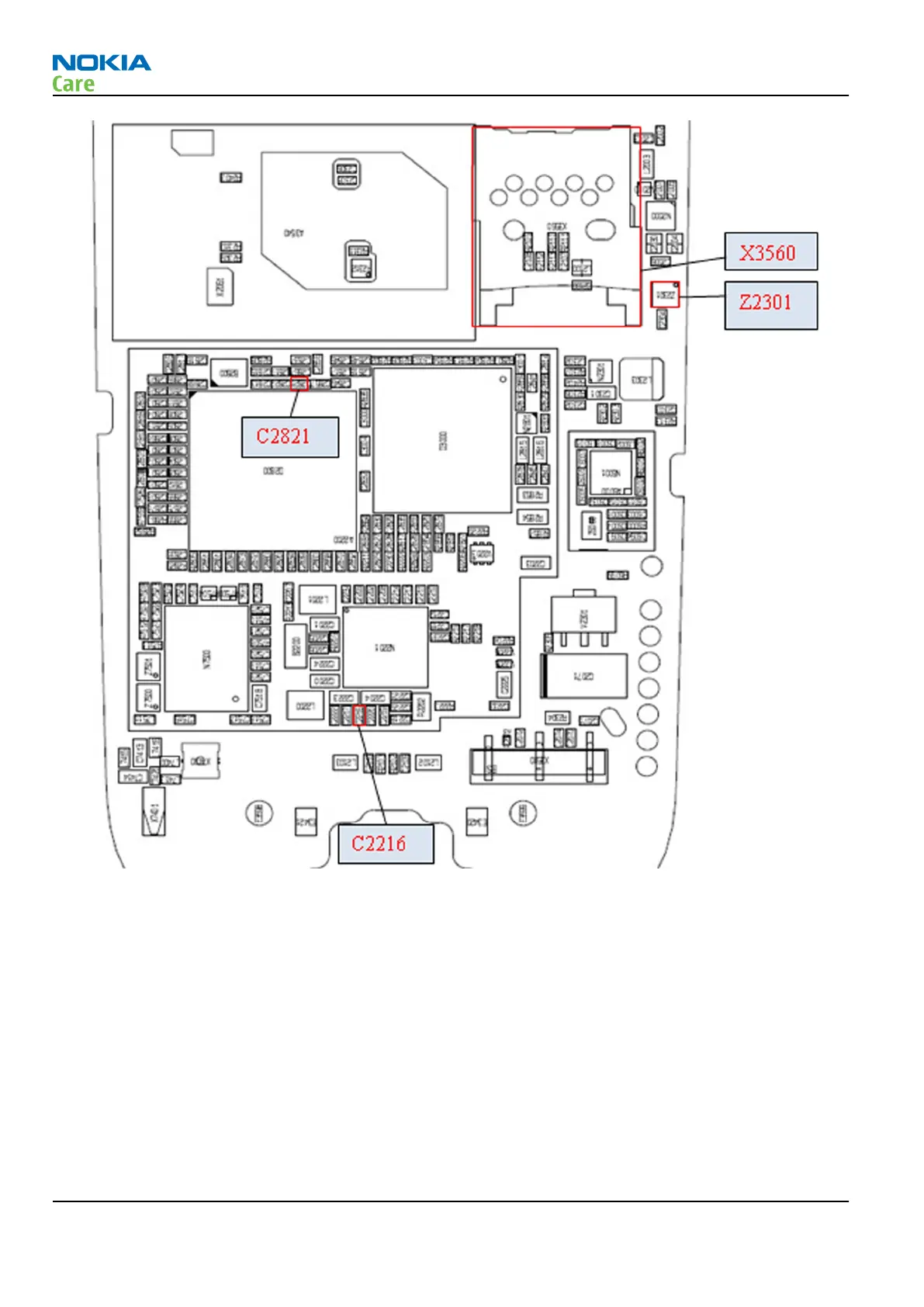

Figure 12 Probe placement diagram
SIM Card Troubleshooting
Context
Note:
Battery must be inserted in order to power-up the phone, which will block access to the SIM and surrounding
components for probing.
RM-497
BB Troubleshooting and Manual Tuning Guide
