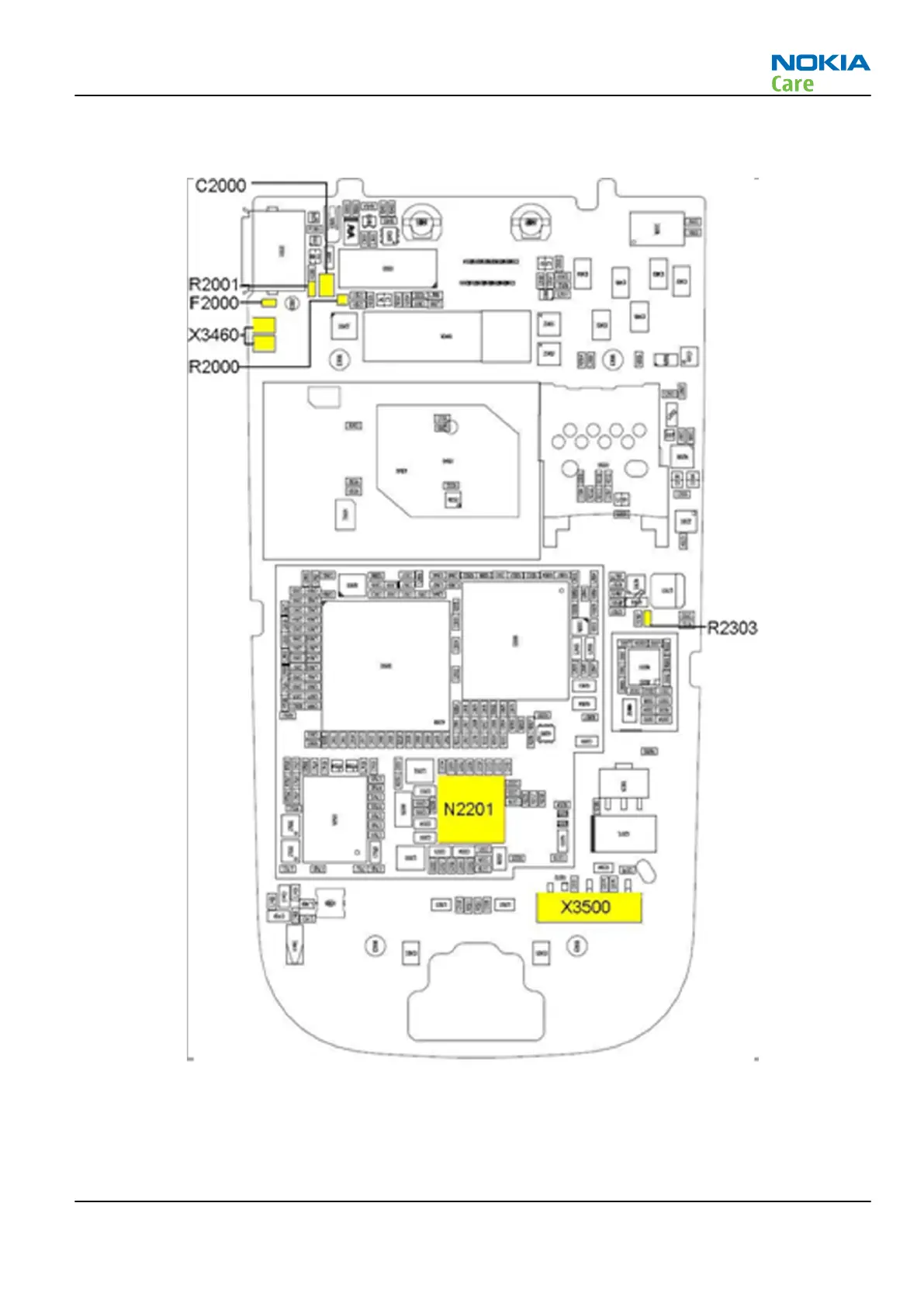

Component Placement
Clocking troubleshooting
Context
The D2800 Juno BB ASIC requires two clocks for proper operation. Both are provided by on-board crystals.
RM-497
BB Troubleshooting and Manual Tuning Guide
Issue 1 COMPANY CONFIDENTIAL Page 3 – 13
Copyright © 2010 Nokia. All rights reserved.
