Service devices
Product specific devices
The table below gives a short overview of service devices that can be used for testing, error analysis, and
repair of product RM-497. For the correct use of the service devices, and the best effort of workbench setup,
please refer to various concepts.

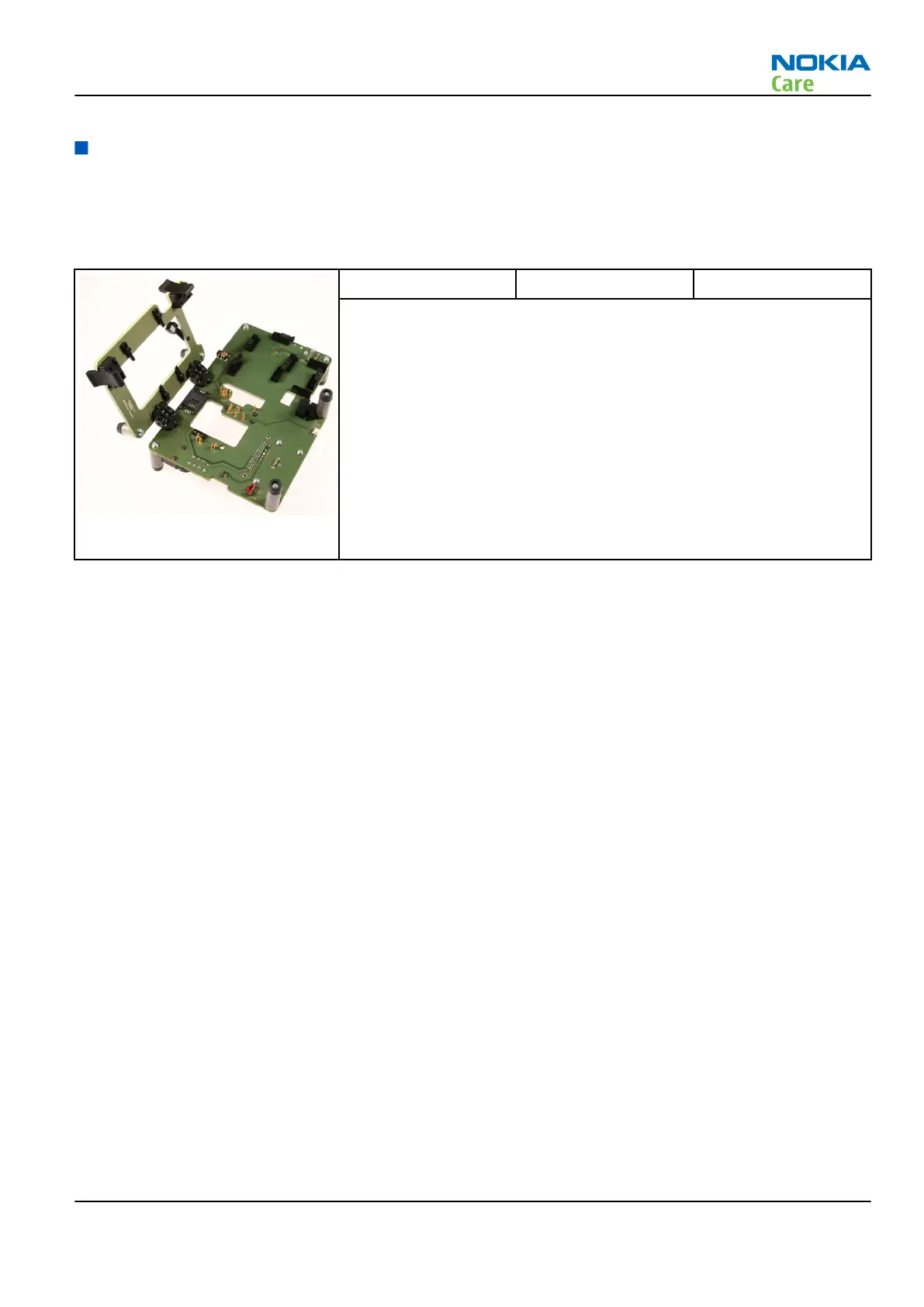

MJ-224 Module jig
MJ-224 is meant for component level troubleshooting.
The jig includes an RF interface for GSM and Bluetooth. In addition, it
has the following features:
Provides mechanical interface with the engine module
Provides galvanic connection to all needed test pads in module
MMC interface
Duplicated SIM connector
Connector for control unit
Access for AV- and USB connectors
CA-128RS cable is used together with this jig for RF testing.
General devices
The table below gives a short overview of service devices that can be used for testing, error analysis, and
repair of product RM-497. For the correct use of the service devices, and the best effort of workbench setup,
please refer to various concepts.
RM-497
Service Devices and Service Concepts
Issue 1 COMPANY CONFIDENTIAL Page 2 – 5
Copyright © 2010 Nokia. All rights reserved.
