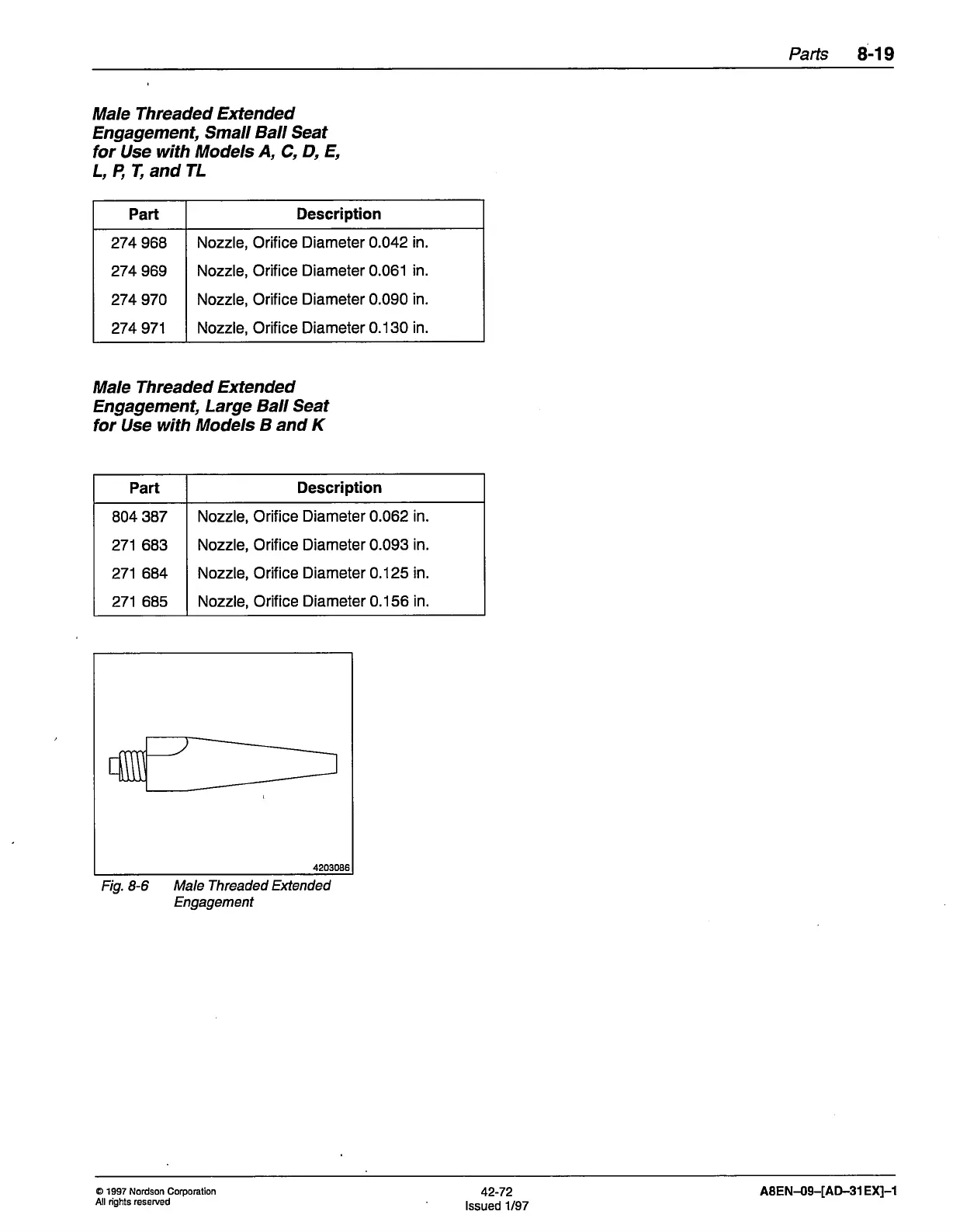

Nordson AD-31 Series User Manual

Parts
8-19
Male Threaded
Extended
Engagement,
Small Ball Seat
for Use
with Models
A,
C,
D, E,
L,
E
T, and
TL
Male Threaded
Ertended
Engagement,
Large Ball Seat
for Use with
Models B and K
4203086
Fig.8-6 Male
Threaded Ertended
Engagement
Part
Description
274968
274969
274 970
274 971
Nozzle, Orifice Diameter
0.042in.
Nozzle, Orifice
Diameter 0.061 in.
Nozzle, Orifice
Diameter 0.090 in.
Nozzle, Orifice Diameter 0.130
in.
Part Description
804
387
271 683
271 684
271 685
Nozzle, Orifice
Diameter 0.062 in.
Nozzle, Orifice Diameter 0.093
in.
Nozzle, Orifice
Diameter 0.125 in.
Nozzle, Orifice
Diameter 0.156 in.
O
1997 Nordson Corporation
All rights
reserued
42-72
lssued 1/97
AsEN{I}[AD-31ER-l
