7-28
Repair
Packing
Cartridge
Replacement
@ontd.)
87 mm
3
7/16 in.
-l
4203047

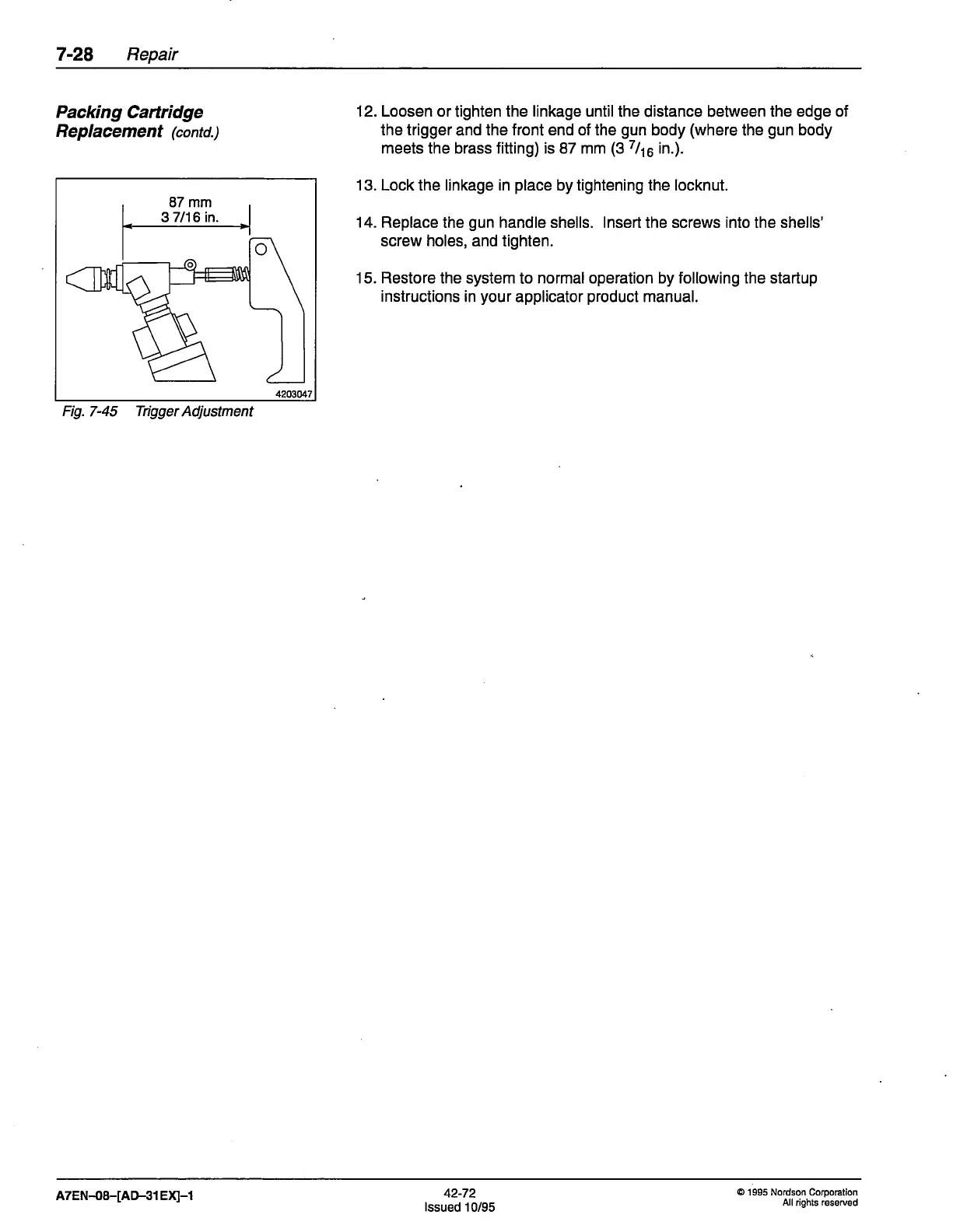

Fig.7-45 TriggerAdjustment
12. Loosen or
tighten
the linkage until
the distance between
the edge of
the trigger
and
the front end of
the
gun
body
(where
the
gun
body
meets the brass fitting) is 87 mm
(3
746
in.).
13. Lock the linkage in
place
by tightening the locknut.
14. Replace
the
gun
handle shells. lnsert the screws into the shells'
screw holes, and tighten.
15. Restore the system
to
normal operation by following the startup
instructions
in
your
applicator
product
manual.
ATEN-08-[AD-31EXI-I
42-72
lssued
10/95
@
1995 Nordson Corporation
All
rights
reserved
