Instruction Sheet
P
art 1602989-02
E 2021 Nordson Corporation
P
/N 1602989-02
0−1000 PSI Pressure Transducer and Amplifier
Description
The 0−1000 psi (0−68.9 bar) pressure transducer and amplifier assembly
measures the internal hydraulic pressure in a MEG II spray gun manifold and
converts it to an electrical output to an iTRAX Spray Monitor. The electrical output
is directly proportional to the hydraulic pressure measured by the pressure
transducer.
Figure 1 shows the pressure transducer and amplifier assembly. The assembly is
a calibrated, matched set. Cable lengths are:
S Armored cable from the amplifier to the transducer is 10-ft (3.05 meter) long.
S Cordset from the amplifier to the spray monitor is 8-ft (243.8 cm) long.
1 5
To Spray Gun
6
4
3
2
7
To iTRAX Spray Monitor

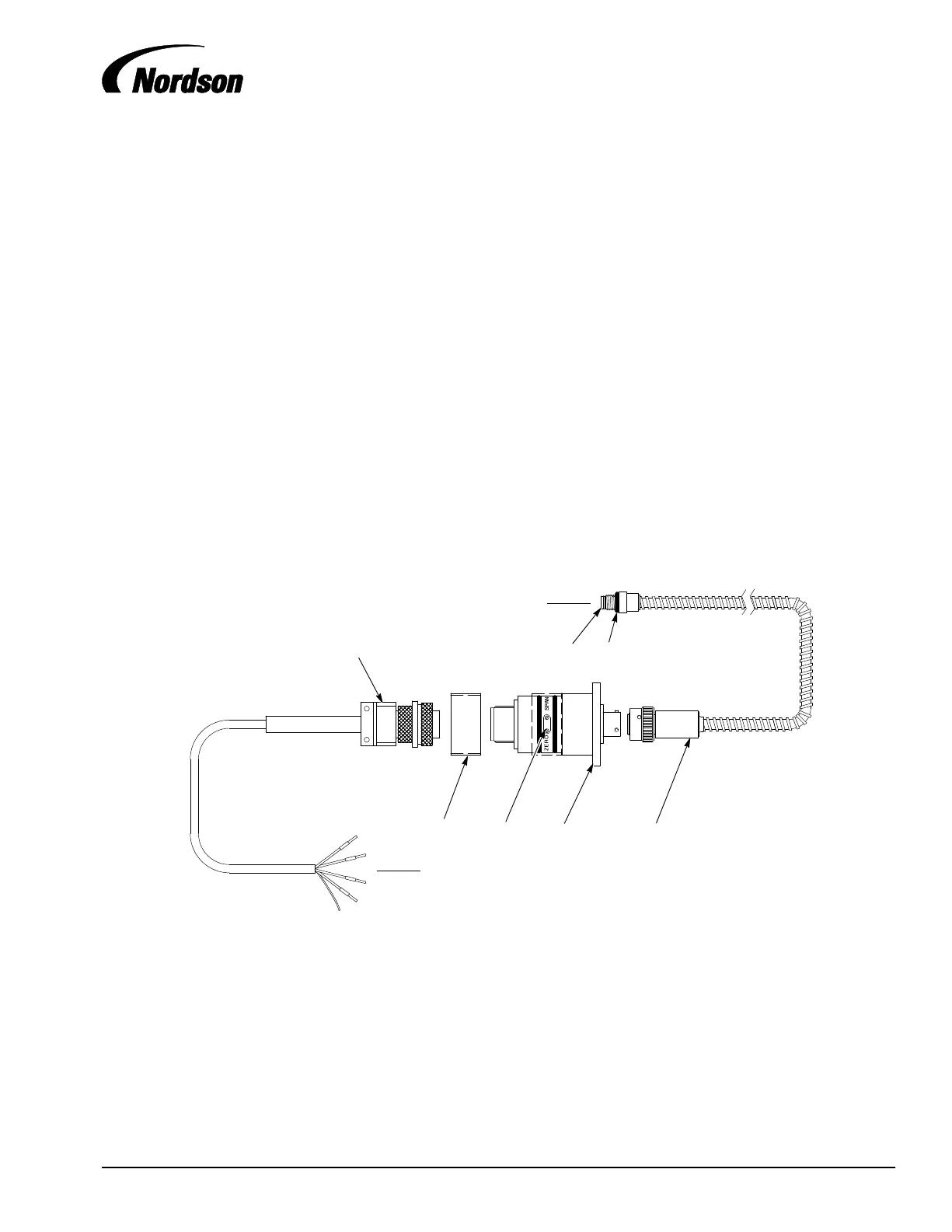

Figure 1 Pressure Transducer and Amplifier Assembly
1. Amplifier
2. Cordset (8 ft)
3. Cover sleeve
4. Calibration potentiometers
5. Armored cable (10 ft)
6. Pressure transducer
7. O-ring
Note: DO NOT attempt to calibrate this assembly without the proper equipment. Refer to Calibration on page 2.
