3-5
3 Implementation
3. Implementation
● Option 2 – ESM placed below FLEX2. This arrangement is required for ambr®15
with Analysis Module.*
○ When obtaining a shelf or cart to support the ESM, ensure that the top of the
ESM resides no further than 4.0 in (10.1 cm) from the base of the FLEX2.
○ Ensure that the right side of the FLEX2 resides no further than 5.0 in. (12.7cm)
from the left outer wall of the BSC.
○ The right side of the FLEX2 and the right side of the ESM should be approximately
in-line vertically.
○ The FLEX2 should be positioned forward (proud) enough so that the main door
is not impeded when opening or closing.
Table 3.4 Estimated Bench Space Required (Left of ambr® 15)- Option 2
Configuration FLEX2 w/o Osmo FLEX2 + Osmo
ESM below FLEX2
Inches (centimeters)
27.8W x 31.0D x 29.4H
(70.6W x 78.8D x 74.7H)
36.2W x 31.0D x 29.4H
(92.0W x 78.8D x 74.7H)

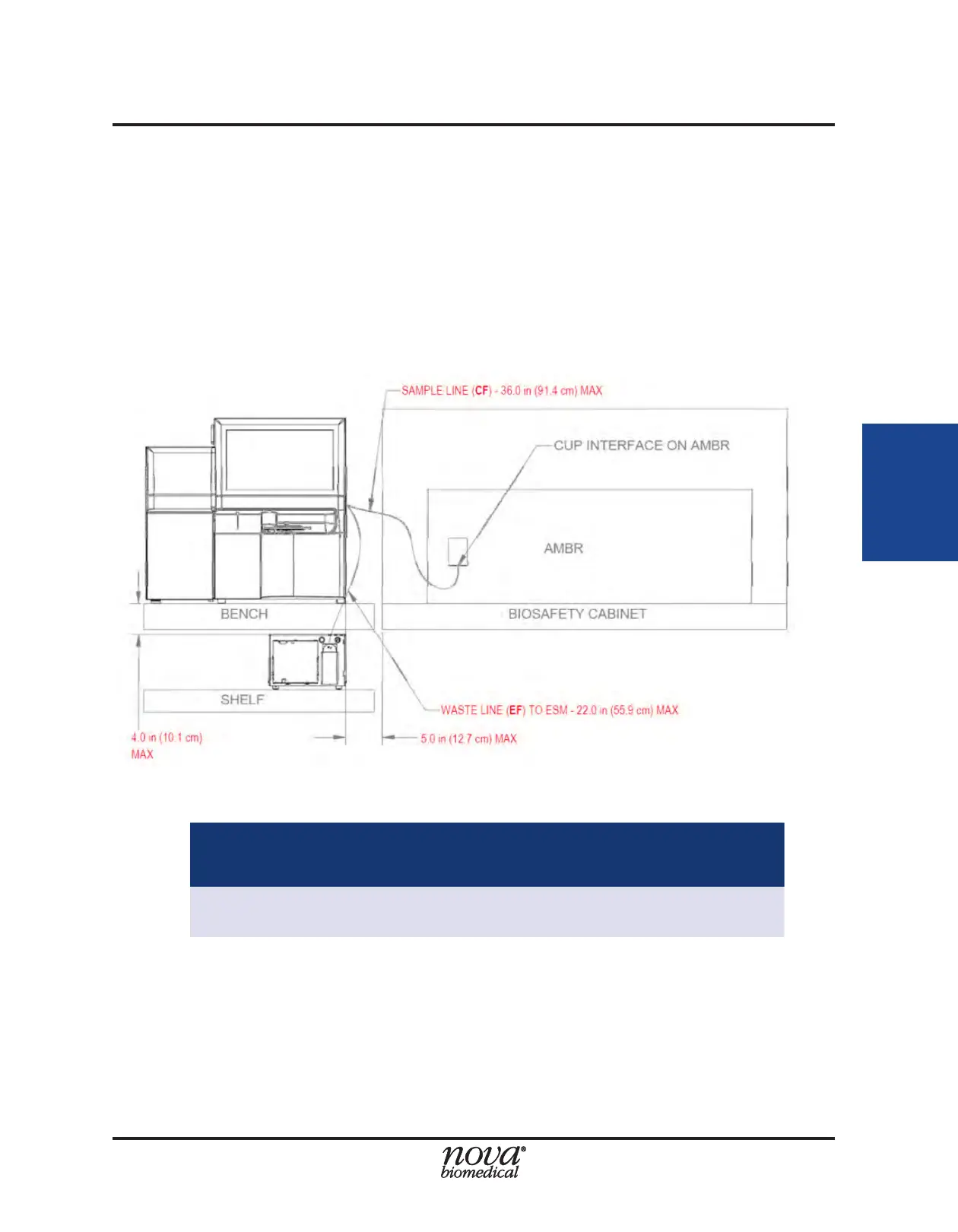

Figure 3.5 Option 2: ESM Below FLEX2
*Analysis Module not pictured
