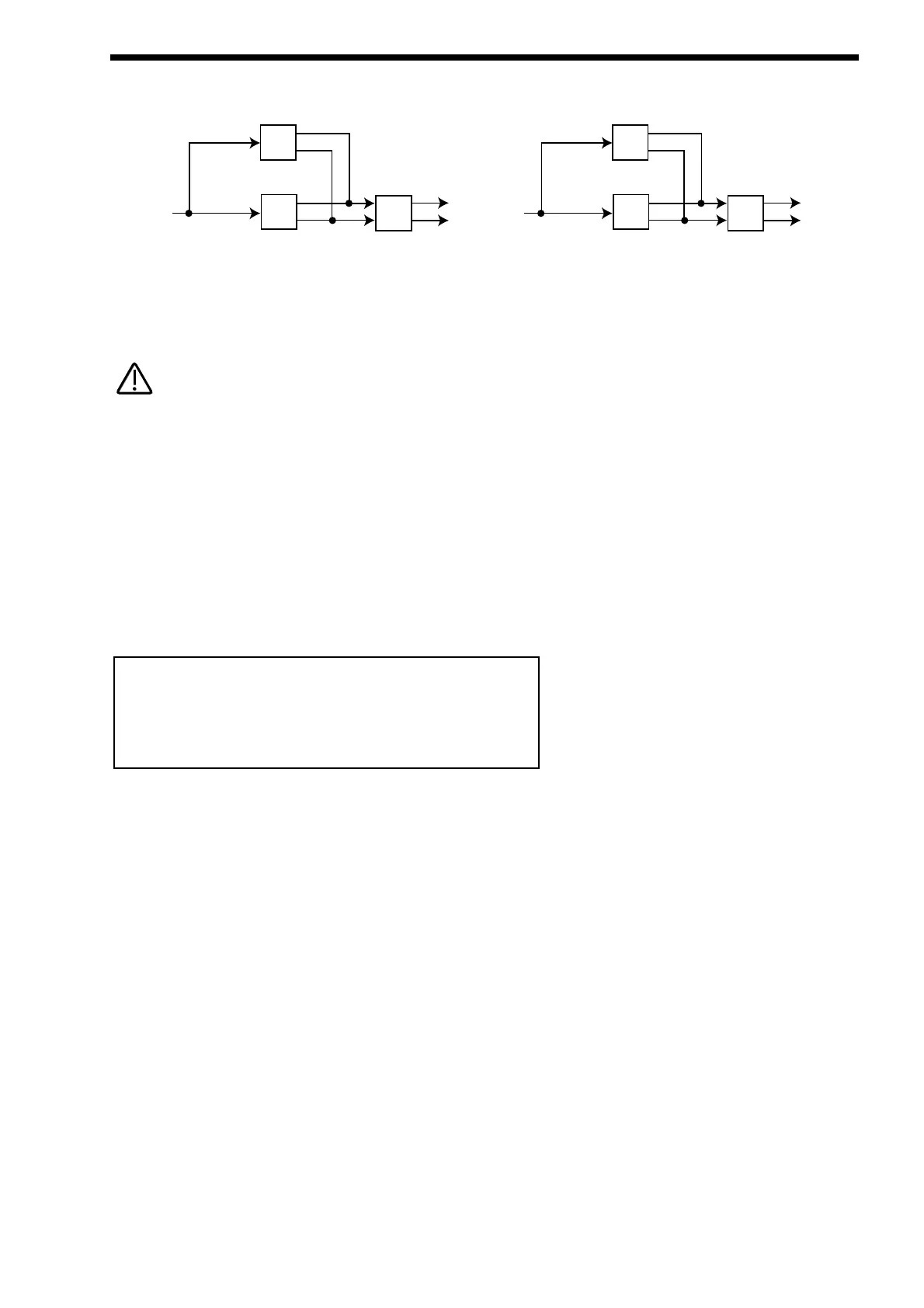

The range of this parameter is D+R+C, D>R>C, D>C>R, R>D>C, R>C>D, C>D>R, C>R>D, D+[R>C], D+[C>R], R+[D>C],
R+[C>D], C+[D>R], C+[R>D], D>[R+C], R>[D+C], C>[D+R]. [R+C]>D, [D+C]>R & [D+R]>C. This parameter is memorised with a
Program in Program Mode or memorised with a Program or Performance in Performance Mode depending on the value of the
Part’s “Effects Used” parameter.
To use the different configurations, the Config morph parameter should be set to 127. If this parameter is set to 000, the “Normal”
configuration D+R+C applies.
As can be seen the lower parameter is “Config morph”. In this case with a value of +10.
This parameter morphs the effect configuration from the “Normal” D+R+C configuration to any configuration selected by the Fx
config parameter. Use the Lower Fast Data knob to adjust this parameter. If this parameter is set to the fully anticlockwise position
( 00 ) the config is “Normal” D+R+C. If this parameter is set to 127 the configuration will be the one selected by the Fx config
parameter. In-between this, the configuration is somewhere between the two. This allows many interesting “Cross connections” to
occur between the different effects blocks. The range of this parameter is 000 to 127. This parameter is memorised with a Program
in Program Mode or memorised with a Program or Performance in Performance Mode depending on the value of the Part’s
“Effects Used” parameter.
Page 5 looks like so:
As can be seen the parameter is “Pass to effects:”. In this case with a value of Program only.
This parameter allows the Audio inputs to be connected into the effects. Use the Lower Fast Data knob to adjust this parameter. If
this parameter is set to Program only then the program will be connected to the effects chain of the Program or Part if in perform-
ance mode.
If this parameter is set to Audio input (1) only then the Audio from Input one will be will be connected to the effects chain of the pro-
gram or Part if in performance mode & the program will be disconnected. If this parameter is set to Program & input (1) only then
the Audio from Input one & the Program will be will be connected to the effects chain of the program or Part if in performance
mode. Similar values are provided for Audio input 2. The range of this parameter is Program only, Audio input (1) only, Program &
input (1), Audio input (2) only, & Program & input (2). This parameter is memorised with a Program in Program Mode or memorised
with a Program or Performance in Performance Mode depending on the value of the Part’s “Effects Used” parameter.
Pass to effects:
Program only
