Alarm(Beacon/Siren) Connections
Terminals have been provided for connection of the ENVIROMUX-BCN-R Beacon and ENVIROMUX-SRN-M Siren to use for
visual alerts and audible alerts when configured. Devices such as this can be installed in locations best suited to get
attention. The terminals for these connections will accept 16-26 AWG wire.
Note: The maximum combined load that can be
connected to the “AUX PWR” terminals on the
ENVIROMUX-5D / -2D is 500mA. (For the
ENVIROMUX-16D the maximum is 150mA.)

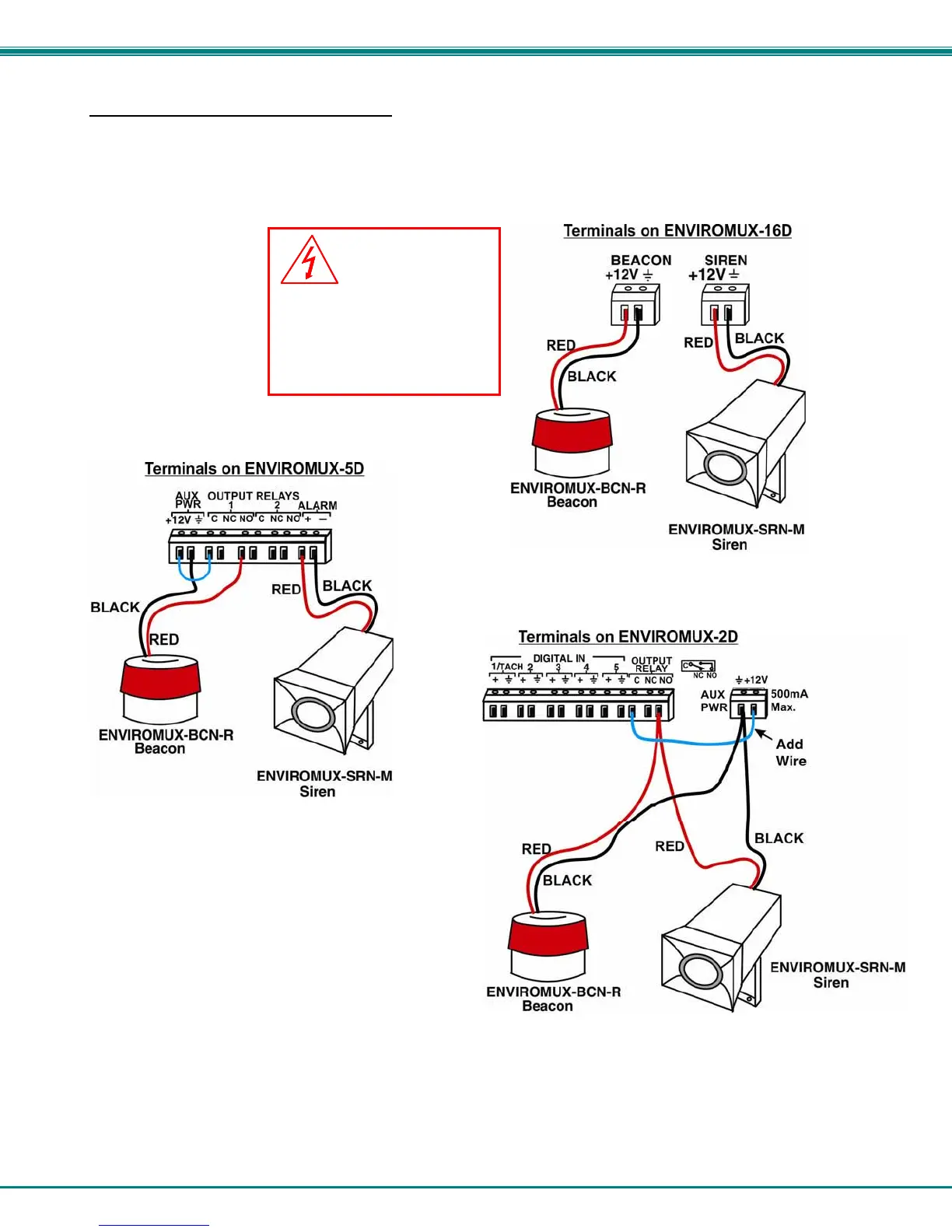

Figure 9- Connect visual and audible external indicators
WARNING
Devices connected to
either the Beacon or the
Siren terminals cannot
exceed 180mA contact
load.
