NTI ENTERPRISE ENVIRONMENT MONITORING SYSTEM

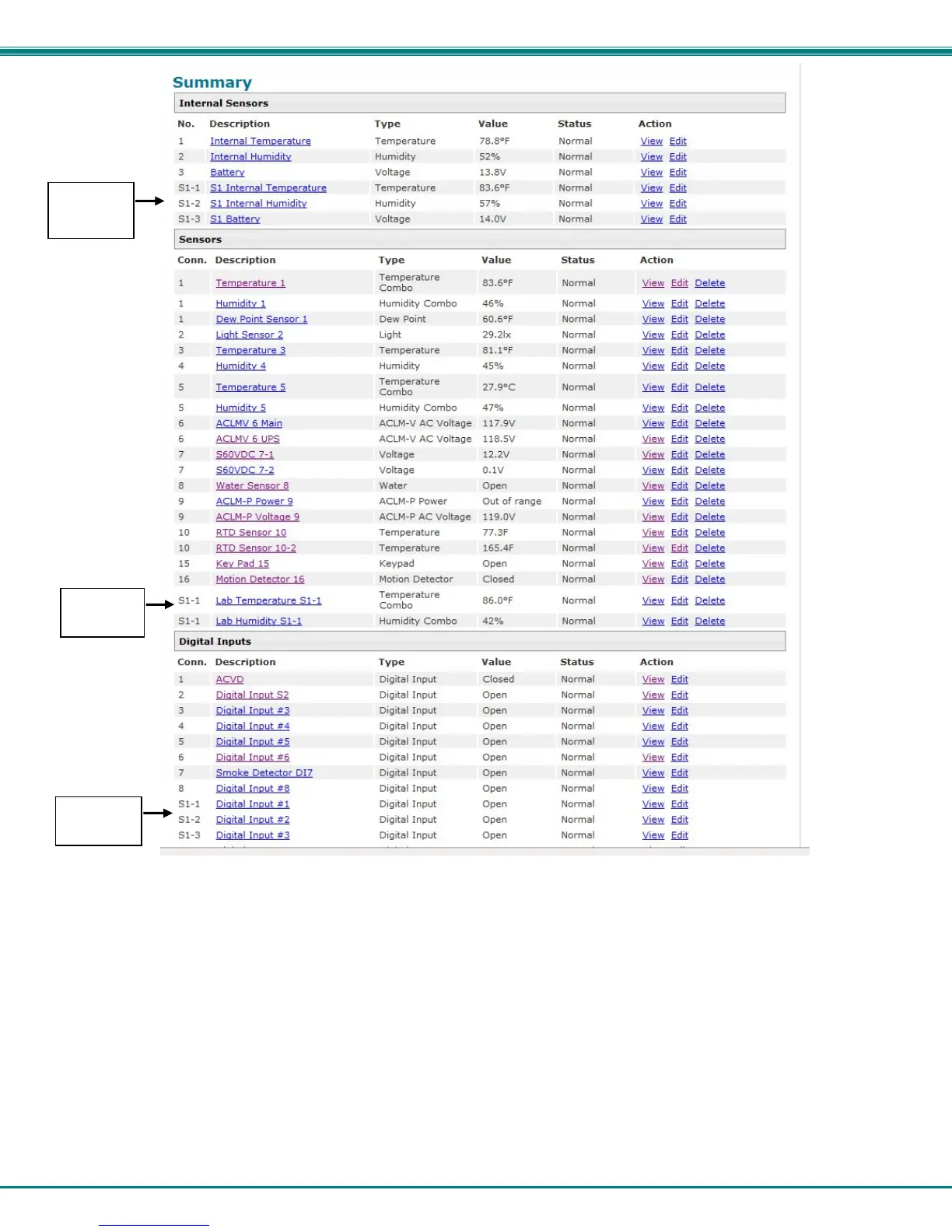

Figure 87- Portion of Summary Page from a Master with a Slave

From the Summary page of the Master (above), sensors connected to Slave unit can be viewed and configured just as if they

were directly connected to the Master unit itself.

Slave

Sensors

Slave

Sensors

Slave

Sensors
