6 - 5
Operational Problems
6
6.1

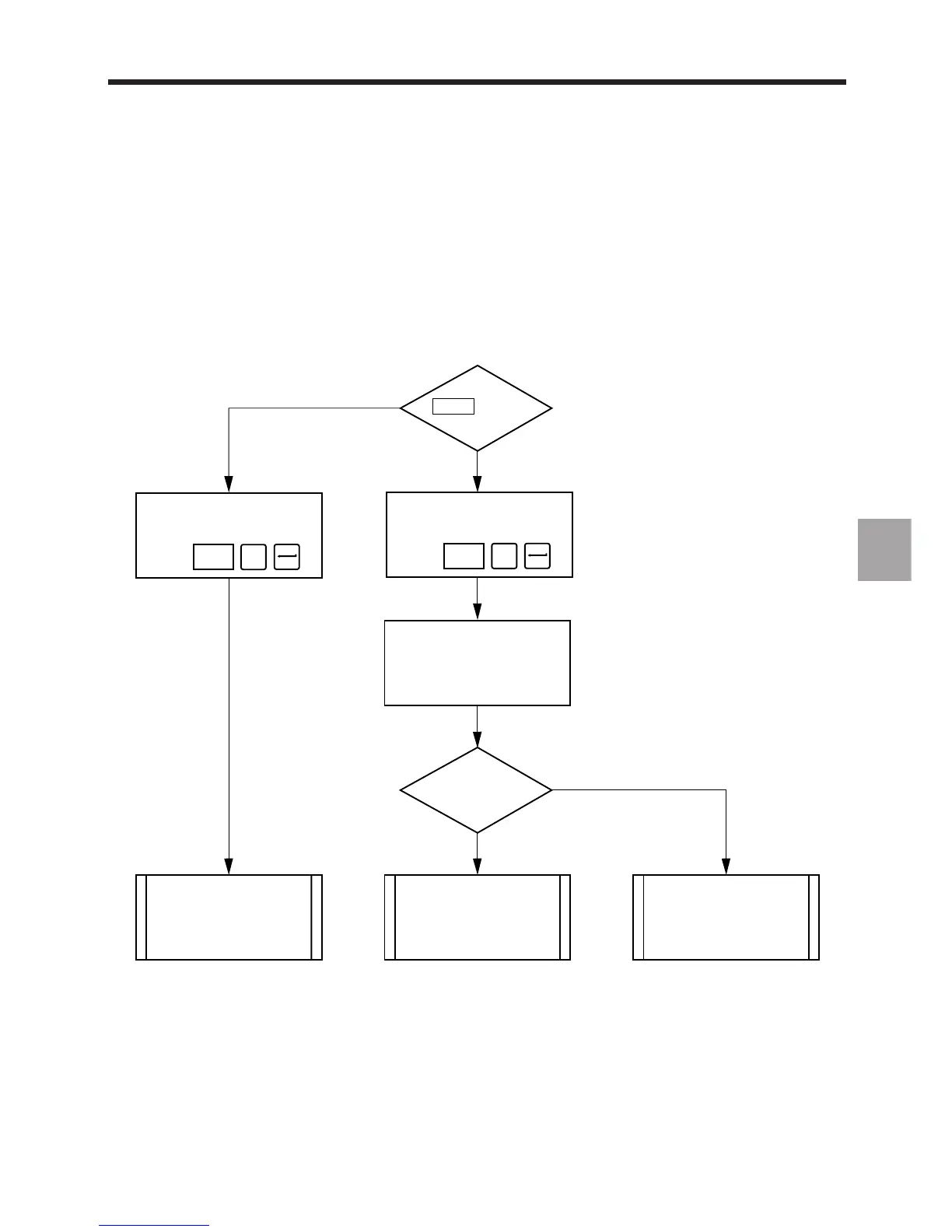

Indicator "FDHLD" Displayed
Failure symptoms
Any CNC condition.
Indicator "FDHLD" displayed.
Trouble-shooting
Examine the PLC
programme to
determine the origin
of the fault.
Call NUM
customer support.
Refer to the manufacturer's
manual for the
procedure to follow.
Display
"PLC MEMORY" page
Display the message on page
"OPERATOR MESSAGES"
Display the general
feed authorisation
condition: SPEED
SPEED = 0
?
Yes
No
No
Yes
Is the
MSG indicator
displayed
?
☞
PLC
I/O
)
0
☞
PLC
I/O
@
2
228
230
