NUM 1040 W User Manual

Operator Panel Description
en-938821/2 3 - 3
3
3.1 NUM Panel and Sub-Assemblies
3.1.1 NUM Panels
3.1.1.1 QWERTY Panel and CRT
M01
JOGTOOL
MODE
F10
F9
F8F7F6F5F4
F3F2
F1
ESC Q W E R T Y U I O P
CTRL A D F G H
J
KL
MNBVCXZSHIFT SPACE
/ ,
<
.
>
/
?
`
`
"
;
:
S
x off
{
[
}
]
CAPS
ALL
!
1
@
2
#
3
$
4
%
5
^
6
&
7
*
8
(
9
)
0
_
-
+
=+
F11 F12
HELP
home Pg Up
VALID
Pg Dnend
DEL
char
line
INS
char
line
1
3
2 4
4
5
6
7
9
8
10
3
2
1

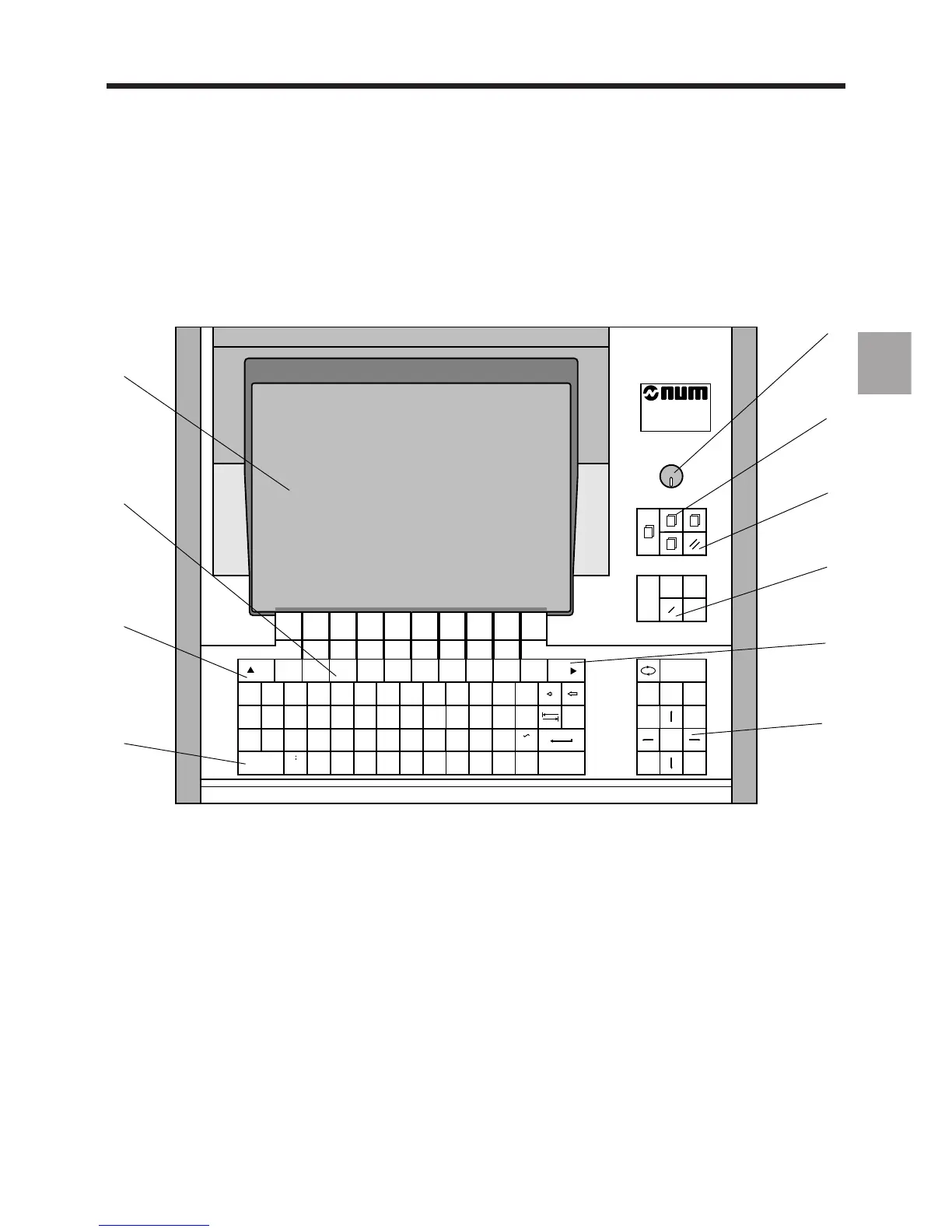

1 - QWERTY alphanumeric keyboard
2 - Key to access previous softkeys
3 - Function keys
4 - Colour CRT
5 - Brightness control
6 - Context selection keys
7 - Reset key
8 - Mode selection keys
9 - Key to access next "Mode" softkey
10 - Cursor control keys

NUM 1040 W Specifications

General

Brand	NUM
Model	1040 W
Category	Controller
Language	English
