TECHNICAL OWNER MANUAL
NFINITY SERVICE INSTRUCTIONS
4. Nfinity service instructions
4.1 Replacing Shifter Cables

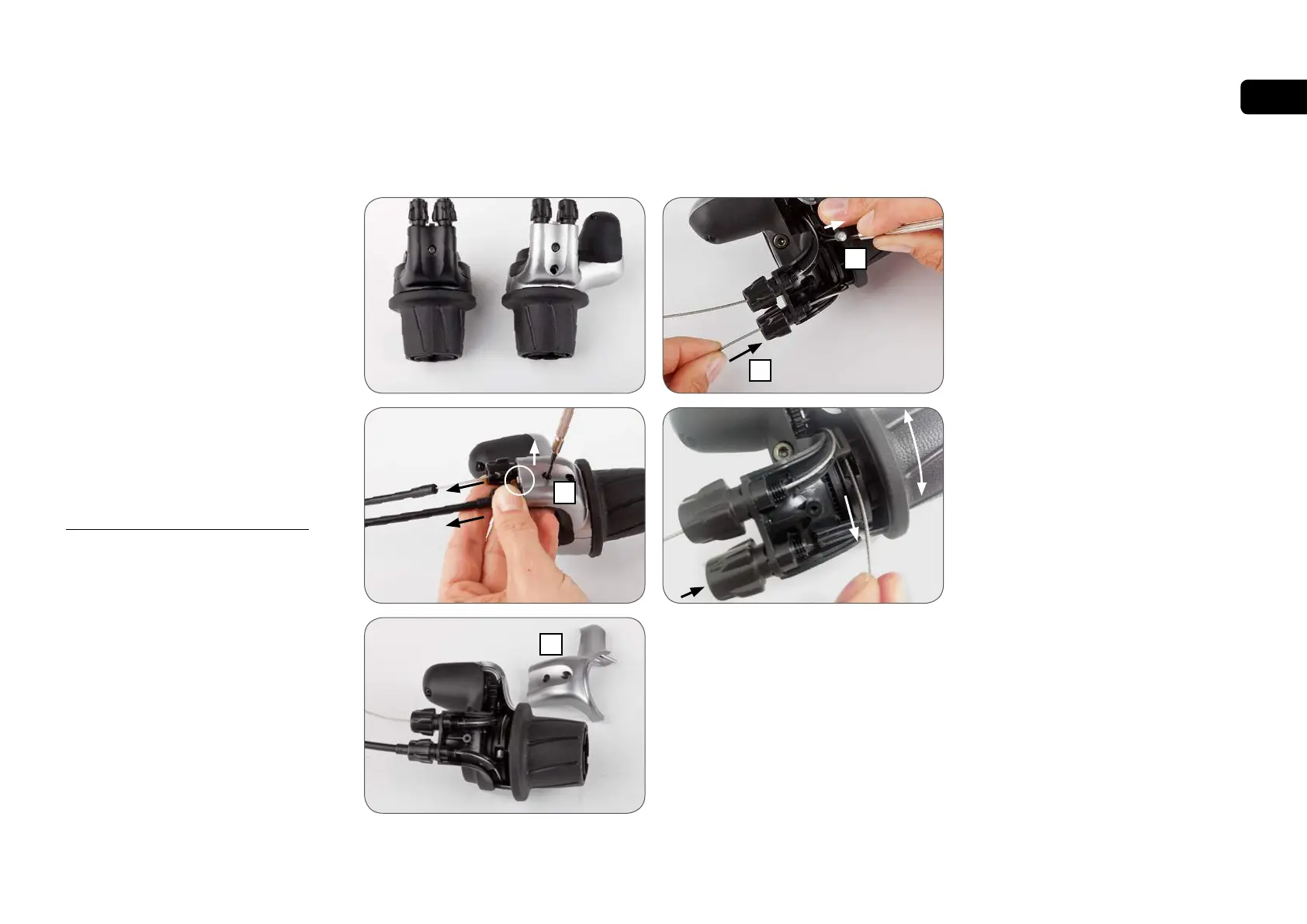

Removing Shifter Cables
1. Remove cable hardware from both cables
and remove shift cables from housing.
2. Remove the phillips screw (A) on the
bottom of the Nfinity shifter and remove the
bottom cover (B) by pulling lightly on the
access tab.
3. Using a small flat screwdriver or pointed
object, extract the cable anchors (C) and
shift cables (D) from the grip pulley.
• Rotate the grip to access individual cable
anchors.
For installing shifter cables see page 17.
A
B
C
D
